Advanced technology propellant design just for the 410 BORE. The 410 shotshell has long been difficult to load due to shortcomings in powder fit, metering, and burning characteristics. Not any more! LIL'GUN was designed to fit, meter and perform flawlessly in the 410 BORE. No more spilled shot or bulged cases. In addition, LIL'GUN has many magnum pistol applications and is superb in the 22 Hornet. Available in 1 lb., 4 lb. & 8 lb. containers.

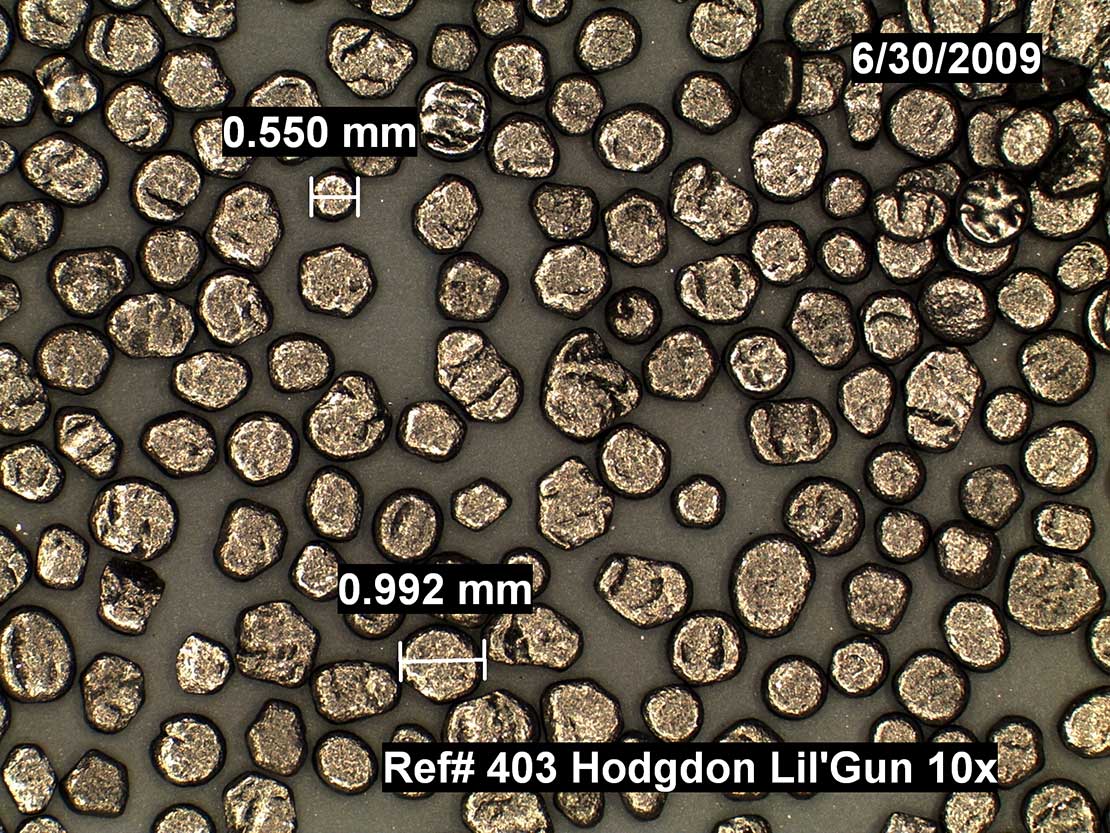

| Shape | Color | Perforation | Diameter min | Diameter max | Length/thick. min | Length/thick. max | Manufacturer |
|---|---|---|---|---|---|---|---|
| Flattened ball | Gray | No | 0.55 mm | 1.25 mm | Hodgdon Powder Company |
Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)
Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
 | 110 | Speer hollowpoint | 14.5 | 1,201 | primer: WSR |
| 110 | Speer hollowpoint | 15.0 | 1,257 | primer: WSR |
| 110 | Speer hollowpoint | 15.3 | 1,321 | primer: WSR |
| 110 | Speer hollowpoint | 15.7 | 1,411 | primer: WSR |
| in a Black Hawk Test firearm was a Ruger Blackhawk with a 7 1/2-inch barrel. All cases werre Remington. Maximum case length, 1.290 inches. Temperature during testing was 75 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 110 | Hornady RN or FMJ | 14.5 | 1209 | |
| 110 | Hornady RN or FMJ | 15.0 | 1277 | |
| 110 | Hornady RN or FMJ | 15.5 | 1389 | |
| 110 | Hornady RN or FMJ | 15.8 | 1433 | maximum load |
| T/C & Ruger Using Hornady Bullets Gun: Ruger Blackhawk; barrel length: 7 1/2 inches; case: Hornady Frontier; primer: Winchester Small Rifle; bullet diameter: .308"; 90 GR Hornady HP-XTP COAL: 1.510"; 110 GR RN & FMJ COAL: 1.680"; maximum COAL: 1.680"; maximum case length: 1.290"; trim to length: 1.280". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 85 | Hornady HP | 10.5 | 1163 | start load; COL: 1.290"; 13,700 cup; bullet diam.: .312" |
| 85 | Hornady HP | 12.0 | 1263 | max load; COL: 1.290"; 16,800 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 10.0 | 1156 | start load; COL: 1.340"; 14,900 cup; bullet diam.: .312" |
| 90 | Sierra JHP | 11.5 | 1227 | max load; COL: 1.340"; 18,000 cup; bullet diam.: .312" |
| 100 | Speer JHP | 10.0 | 1151 | start load; COL: 1.345"; 17,900 cup; bullet diam.: .312" |
| 100 | Speer JHP | 11.0 | 1208 | max load; COL: 1.345"; 19,900 cup; bullet diam.: .312" |
| Hodgdon Pistol Data Case: Federal; twist: 1:16"; primer: Federal 100, Small Pistol; barrel length: 5"; trim length: 1.070". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 85 | Jacketed | 7.2 | 1002 | start load; min OAL: 1.550 |
| 85 | Jacketed | 8.0 | 1102 | never exceed; min OAL: 1.550; 15,700 cup |
| 100 | Jacketed | 6.6 | 908 | start load; min OAL: 1.580 |
| 100 | Jacketed | 7.5 | 1018 | never exceed; min OAL: 1.580; 16,000 cup |
| Lee Precision Data Small rifle primer. Velocities will be 10% to 15% higher in rifles. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Hornady JHP | 7.5 | 1048 | starting load; bullet diam.: .312"; COL: 1.550"; 13,200 cup |
| 85 | Hornady JHP | 8.0 | 1102 | maximum load; bullet diam.: .312"; COL: 1.550"; 15,700 cup |
| 100 | Rem JFP | 7.0 | 947 | starting load; bullet diam.: .312"; COL: 1.580"; 12,200 cup |
| 100 | Rem JFP | 7.5 | 1018 | maximum load; bullet diam.: .312"; COL: 1.580"; 15,700 cup |
| Hodgdon Pistol Data case: Remington; barrel length: 5.5"; twist: 1:20"; trim length: 1.305"; primer: Winchester SP; bullet diam.: .314" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Hornady Jacketed HP/XTP | 7.2 | 893 | sugg. start load; 10,200 cup; 1.535" OAL |
| 85 | Hornady Jacketed HP/XTP | 8.0 | 1009 | max load; 13,700 cup; 1.535" OAL |
| 90 | Sierra Jacketed HC | 7.2 | 895 | sugg. start load; 10,300 cup; 1.535" OAL |
| 90 | Sierra Jacketed HC | 8.0 | 950 | max load; 12,400 cup; 1.535" OAL |
| 100 | Speer Jacketed HP | 6.8 | 747 | sugg. start load; 9,700 cup; 1.560" OAL; potentially most accurate load |
| 100 | Speer Jacketed HP | 7.6 | 899 | max load; 14,400 cup; 1.560" OAL |
| Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.305"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 10; cast bullets used sized to .313" dia.; firearm used: Ruger Blackhawk and Universal Receiver; barrel length: 6 1/2"; twist: 1-16"; groove dia.: .312" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 85 | Hornady XTP | 8.0 | 863 | overall loaded length (inches): 1.527; group (inches): 2.62 |
| 100 | Hornady XTP | 7.5 | 708 | overall loaded length (inches): 1.526; group (inches): 5.27 |
| Colt Army Special, 6-inch barrel, one-in-20-inch rifling twist . The Colt Army Special handloads used Remington cases and CCI 500 primers.Loads were fired at 25 yards. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 100 | Hornady XTP | 12.7 | 1347 | start load; COL: 1.450"; 25,600 psi |
| 100 | Hornady XTP | 14.0 | 1431 | max load; COL: 1.450"; 27,900 psi |
| Hodgdon Data Case: Federal; barrel length: 5"; twist: 1:16"; trim length: 1.200"; primer: Federal 200; bullet diam.: .312 (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Hornady XTP-HP | 12.5 | 1196 | primer: CCI 550; case: Speer; OAL (inches): 1.4545 |
| 100 | Hornady XTP-HP | 13.5 | 1233 | primer: CCI 550; case: Speer; OAL (inches): 1.4545 |
| 100 | Hornady XTP-HP | 14.0 | 1249 | primer: CCI 550; case: Speer; OAL (inches): 1.4545 |
| Data Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Hornady XTP | 12.5 | 1231 | overall loaded length (inches): 1.455 |
| 100 | Hornady XTP | 13.0 | 1253 | overall loaded length (inches): 1.455 |
| 100 | Hornady XTP | 13.5 | 1284 | overall loaded length (inches): 1.455 |
| 100 | Hornady XTP | 14.0 | 1307 | overall loaded length (inches): 1.455 |
| Handloads A Ruger Single-Seven with a 7 1/2-inch barrel was used to test fire these loads. Federal cases and CCI 500 primers were used throughout. Bullet diameter: .312 and .313 inch; maximum case length: 1.200 inches; trim to length: 1.195 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 100 | Hornady XTP-HP | 12.5 | 1196 | primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545 |
| 100 | Hornady XTP-HP | 13.5 | 1233 | primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545 |
| 100 | Hornady XTP-HP | 14.0 | 1249 | primer: CCI 550; case: Speer; overall loaded length (inches): 1.4545 |
| Loads Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 140 | Barnes XPB | 16.5 | 1,335 | primer: Federal 200 |
| Barnes X-Pistol Bullets Loads were fired using a Smith & Wesson Model 28 with a 6-inch barrel. Starline cases used throughout. Overall cartridge length: 1.580 inches. Temperature during testing was 92 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 170 | Speer Mag GDSP | 14.8 | 1100 | start charge; primer: CCI 550 Magnum |
| 170 | Speer Mag GDSP | 15.4 | 1121 | maximum charge; primer: CCI 550 Magnum |
| (Handgun) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer Gold Dot | 18.0 | 1,119 | overall loaded length (inches): 1.580; primer: CCI 550 |
| 158 | RCBS 38-150-KT cast | 17.0 | 1,263 | overall loaded length (inches): 1.611; primer; CCI 550 |
| 158 | RCBS 38-150-KT cast | 18.0 | 1,226 | overall loaded length (inches): 1.611; primer: CCI 550 |
| 158 | Lyman 358156 cast HP GC | 18.0 | 1,193 | overall loaded length (inches): 1.655; primer: CCI 550 |
| for S&W Models 19 & 66 Firearm used for testing was an S&W Model 19 with a 4-inch barrel. Starline cases were used throughout. No loads exceeded 30,000 psi. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer Gold Dot hollowpoint | 19.0 | 1,415 | primer: CCI 550; 6-inch barrel velocity: 1,493 |
| in a Ruger GP100 - 4-inch Barrel | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer Gold Dot hollowpoint | 18.0 | 1087 | primer: WSPM; overall loaded length (inches): 1.585 |
| 158 | Speer Gold Dot hollowpoint | 19.0 | 1214 | primer: WSPM; overall loaded length (inches): 1.585 |
| 158 | Speer Gold Dot hollowpoint | 19.5 | 1277 | primer: WSPM; overall loaded length (inches): 1.585 |
| 180 | Cast Performance WFNGC | 15.0 | 1177 | primer: WSPM; overall loaded length (inches): 1.557 |
| 180 | Cast Performance WFNGC | 16.0 | 1168 | primer: WSPM; overall loaded length (inches): 1.557 |
| in a Smith & Wesson Model 627-5 Starline cases were used throughout. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer Gold Dot HP | 19.0 | 1,493 | firearm: Ruger GP-100 |
| 180 | Cast Performance WFNGC | 15.5 | 1,386 | firearm: Colt Python; barrel length: 6" |
| Load Data . | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Speer Gold Dot HP | 19.0 | 1,403 | primer: CCI 550 |
| New Ruger Model Blackhawk Flat Top Starline cases used throughout. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 158 | Hornady XTP | 16.0 | 1504 | start load; COL: 1.580"; 24,100 cup |
| 158 | Hornady XTP | 18.0 | 1577 | max load; COL: 1.580"; 25,800 cup |
| 170 | Sierra JHC | 15.0 | 1422 | start load; COL: 1.580"; 25,100 cup |
| 170 | Sierra JHC | 17.0 | 1576 | max load; COL: 1.580"; 35,500 cup |
| 180 | Nosler Part | 13.0 | 1279 | start load; COL: 1.575"; 27,500 cup |
| 180 | Nosler Part | 15.0 | 1422 | max load; COL: 1.575"; 34,500 cup |
| Pistol Hodgdon Data Case: Winchester; barrel length: 10"; twist: 1:18.75"; trim length: 1.285"; primer: Winchester SPM; bullet diam.: .357" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | Hornady HP XTP or InterLock SP, SSP | 16.7 | 1628 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 17.7 | 1691 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 18.6 | 1755 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 19.6 | 1826 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 20.6 | 1897 | |
| 180 | Hornady HP XTP or InterLock SP, SSP | 21.6 | 1958 | maximum load |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 17.0 | 1463 | |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 17.9 | 1526 | |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 18.8 | 1592 | |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 19.7 | 1661 | |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 20.6 | 1732 | |
| 200 | Hornady FTX, InterLock RN, InterLock SP | 21.5 | 1793 | maximum load |
| (T/C) Data Using Hornady Bullets Gun: Thompson/Center Contender; barrel length: 14 inches; case: Federal; primer: Remington 7 1/2; bullet diameter: .357" and .358"; maximum COAL: 2.250" (1.990" for Revolvers); maximum case length: 1.605"; trim to length: 1.595"; 180 GR Hornady HP XTP COAL: 1.890", InterLock SP, SSP COAL: 2.250"; 200 GR FTX or InterLock SP COAL: 2.250", InterLock RN COAL: 2.200". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady HP-XTP | 10.4 | 770 | |
| 180 | Hornady HP-XTP | 13.3 | 956 | |
| 180 | Hornady HP-XTP | 16.2 | 1174 | |
| 180 | Hornady HP-XTP | 19.1 | 1391 | |
| 180 | Hornady HP-XTP | 22.0 | 1597 | maximum load |
| Using Hornady Bullets Gun: Ruger New Model Super Blackhawk; barrel length: 7 1/2 inches; case: Federal; primer: Remington 7 1/2 Small Rifle; bullet diameter: .357"; COAL: 1.890"; maximum COAL: 1.990"; maximum case length: 1.605"; trim to length: 1.595". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 124 | Berry's Bullets HBRN TP | 12.5 | 1271 | start load; bullet diam.: .356"; COL: 1.250"; 23,100 cup |
| 124 | Berry's Bullets HBRN TP | 13.0 | 1315 | max load; bullet diam.: .356"; COL: 1.250"; 26,600 cup |
| 125 | Hornady HAP | 12.2 | 1285 | start load; bullet diam.: .356"; COL: 1.210"; 23,900 cup |
| 125 | Hornady HAP | 13.6 | 1399 | max load; compressed; bullet diam.: .356"; COL: 1.210"; 29,700 cup |
| 125 | Sierra FMJ | 13.5 | 1317 | start load; COL: 1.275"; 27,600 cup |
| 125 | Sierra FMJ | 14.0 | 1353 | max load; COL: 1.275"; 29,800 cup |
| 125 | Cast LCN | 12.6 | 1288 | start load; bullet diam.: .356"; COL: 1.230"; 25,900 cup |
| 125 | Cast LCN | 14.0 | 1379 | max load; compressed; bullet diam.: .356"; COL: 1.230"; 30,500 cup |
| 130 | Berry's Bullets RN | 10.5 | 1119 | start load; COL: 1.270"; 25,400 cup |
| 130 | Berry's Bullets RN | 12.0 | 1204 | max load; compressed; COL: 1.270"; 28,300 cup |
| 135 | LRN | 11.7 | 1203 | start load; bullet diam.: .356"; COL: 1.275"; 26,400 cup |
| 135 | LRN | 13.0 | 1314 | max load; compressed; bullet diam.: .356"; COL: 1.275"; 31,500 cup |
| 147 | Hornady XTP | 10.0 | 1111 | start load; COL: 1.260"; 22,200 cup |
| 147 | Hornady XTP | 11.0 | 1207 | max load; COL: 1.260"; 28,100 cup |
| 150 | Sierra JFP | 10.0 | 1106 | start load; bullet diam.: .356"; COL: 1.265"; 23,500 cup |
| 150 | Sierra JFP | 11.0 | 1206 | max load; bullet diam.: .356"; COL: 1.265"; 29,700 cup |
| Hodgdon Data Case: Remington; twist: 1:16"; primer: Remington 1 1/2, Small Pistol; barrel length: 5"; trim length: .895"; bullet diam.: .355" (except where otherwise specified in remarks). | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Speer Gold Dot HP | 14.0 | 1,083 | OAL: 1.280 |
| +P Loads All loads were fired in a Kimber 1911 with a 5-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 124 | Hornady FMJ/FP | 12.5 | 1267 | sugg. start load; 27,400 cup; 1.165" OAL |
| 124 | Hornady FMJ/FP | 13.9 | 1383 | max load; compressed powder charge; 32,600 cup; 1.165" OAL |
| 147 | Speer TMJ | 10.2 | 1063 | sugg. start load; 22,900 cup; 1.280" OAL |
| 147 | Speer TMJ | 11.4 | 1180 | max load; compressed powder charge; 30,300 cup; 1.280" OAL |
| Handgun Data (Lyman Reloading Handbook 49th Edition) cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 140 | Hornady XTP | 12.0 | 1,275 | see note #9; revolver bullet; 25-yard group (inches): 1.5 |
| 140 | Hornady XTP | 12.5 | 1,332 | see note #9; revolver bullet; 25-yard group (inches): 1.6 |
| Handloads All accuracy results obtained with Kimber pistol unless otherwise noted. A taper crimp was used on all loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 145 | Winchester Silvertip HP | 16.0 | 1,296 | primer: CCI 550 |
| 158 | Hornady XTP-HP | 15.5 | 1,248 | primer: CCI 550 |
| 156 | Lyman 358156 HP cast | 15.5 | 1,246 | primer: CCI 550; OAL: 1.525" |
| 160 | Cast Performance FNPB | 15.5 | 1,221 | primer: CCI 550 |
| 180 | Cast Performance WFNGC | 14.2 | 1,261 | primer: CCI 550 |
| High-Velocity Loads THE FOLLOWING LOADS EXCEED SAAMI PRESSURE LIMITS FOR THE .38 SPECIAL. They should ONLY be used in .38 Special revolvers with a ".44" or ".45" frame such as the Colt SAA, New Service, Smith & Wesson N-Frame "Heavy Duty" and "Outdoorsman" revolvers. Pressures approach those common with the .357 Magnum and should only be used in the above revolvers that are in good condition. Use with caution. A Smith & Wesson .38-44 Outdoorsman with a 6 1/2-inch barrel was used to test loads. Starline cases used throughout. Temperature during testing was 46 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 223 | Hensley & Gibbs 258 cast | 22.5 | 1479 | primer: CCI 300; rounds per pound; 311 |
| (Economical Midrange Loads) firearm used: Ruger Blackhawk; case: Starline; barrel length: 6 1/2" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady XTP | 20.5 | 1505 | start load; COL: 1.580"; 23,500 cup |
| 210 | Hornady XTP | 22.5 | 1626 | max load; COL: 1.580"; 29,900 cup |
| 220 | Speer JSP | 18.0 | 1431 | start load; COL: 1.580"; 24,300 cup |
| 220 | Speer JSP | 20.5 | 1563 | max load; COL: 1.580"; 31,200 cup |
| 250 | WFNGC | 17.2 | 1399 | start load; COL: 1.540"; 30,300 cup |
| 250 | WFNGC | 18.3 | 1474 | max load; COL: 1.540"; 36,700 cup |
| 255 | WFNGC | 18.8 | 1424 | start load; COL: 1.660"; 26,600 cup |
| 255 | WFNGC | 20.0 | 1500 | max load; COL: 1.660"; 32,800 cup |
| 265 | WLNGC | 20.0 | 1479 | start load; COL: 1.710"; 28,700 cup |
| 265 | WLNGC | 21.3 | 1558 | max load; COL: 1.710"; 35,400 cup |
| Hodgdon Pistol Data Case: Remington; twist: 1:18.75"; primer: Winchester LP; barrel length: 10.125"; trim length: 1.280"; BULLET DIAM.: .410". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady XTP-HP | 22.5 | 1,399 | primer: Federal 155 |
| in a Ruger Blackhawk Ruger Blackhawk has a barrel length of 6 1/2 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady HP-XTP | 22.5 | 1399 | primer: Federal 155; overall loaded length (inches): 1.575 |
| 210 | Sierra JHC | 22.5 | 1367 | primer: Federal 155; overall loaded length (inches): 1.568 |
| 223 | Hensley & Gibbs 258 cast | 22.5 | 1479 | primer: CCI 350; overall loaded length (inches): 1.698 |
| in a Ruger Blackhawk, 6 1/2-inch barrel Ruger Blackhawk, 6 1/2-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady HP-XTP | 22.5 | 1330 | primer: CCI 350; overall loaded length (inches): 1.575 |
| 223 | Hensley & Gibbs 258 cast | 22.5 | 1309 | primer: CCI 350; overall loaded length (inches): 1.698 |
| in a Ruger New Model Blackhawk Bisley Ruger New Model Blackhawk Bisley (stainless), 5 1/2-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady HP-XTP | 22.5 | 1292 | primer: CCI 350; overall loaded length (inches): 1.575 |
| 223 | Hensley & Gibbs 258 cast | 22.5 | 1278 | primer: CCI 350; overall loaded length (inches): 1.698 |
| in a Smith & Wesson Model 57 Smith & Wesson Model 57, 4-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady HP-XTP | 22.5 | 1321 | primer: Federal 155; overall loaded length (inches): 1.575 |
| in a Smith & Wesson Model 657 Mountain Gun Smith & Wesson Model 657 Mountain Gun, 4-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady XTP-HP | 22.5 | 1,321 | primer: Federal 155 |
| in an S&W Model 657 The Smith & Wesson Model 657 Mountain Gun has a barrel length of 4 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Hornady HP-XTP | 18.2 | 1158 | |
| 210 | Hornady HP-XTP | 19.2 | 1204 | |
| 210 | Hornady HP-XTP | 20.2 | 1261 | |
| 210 | Hornady HP-XTP | 21.2 | 1317 | |
| 210 | Hornady HP-XTP | 22.2 | 1370 | maximum load |
| Revolver Using Hornady Bullets Gun: Smith & Wesson Model 57-1; barrel length: 6 inches; case: Starline; primer: Fed 150; bullet diameter: .410"; COAL: 1.580"; maximum COAL: 1.590"; maximum case length: 1.290"; trim to length: 1.280". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 225 | Hornady FTX | 22.0 | 1405 | |
| 225 | Hornady FTX | 23.0 | 1429 | |
| 225 | Hornady FTX | 24.0 | 1461 | maximum |
| 225 | Hornady FTX | 25.0 | 1487 | Exceeds MAP/Redhawk ONLY |
| Revolver using 225 GR Hornady FTX Bullets Caliber: .44 Magnum; gun: Ruger New Model Blackhawk (Bisley); barrel: 5 1/2-inches; case: Starline; case length: 1.275 to 1.285 inches; cartridge overall length (except where noted otherwise): 1.670 inches; primer: Winchester Large Pistol. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 270 | Belt Mountain Punch Solid | 23.5 | 1502 | primer: CCI 350; overall loaded length (inches): 1.670 |
| 300 | Belt Mountain Punch Solid | 21.5 | 1355 | primer: CCI 350; overall loaded length (inches): 1.775 |
| 300 | Hornady HP-XTP | 21.5 | 1326 | primer: CCI 350; overall loaded length (inches): 1.734 |
| 300 | Hornady HP-XTP | 22.5 | 1386 | primer: CCI 350; overall loaded length (inches): 1.734; maximum |
| 310 | Oregon Trail True Shot WNFP-GC | 21.5 | 1462 | primer: CCI 350; overall loaded length (inches): 1.645 |
| 310 | Oregon Trail True Shot WNFP-GC | 22.5 | 1484 | primer: CCI 350; overall loaded length (inches): 1.645 |
| 310 | Oregon Trail True Shot WNFP-GC | 23.0 | 1495 | primer: CCI 350; overall loaded length (inches): 1.645 |
| 340 | Rim Rock Bullets LWN-GC | 19.0 | 1319 | primer: CCI 350; overall loaded length (inches): 1.772 |
| 340 | Rim Rock Bullets LWN-GC | 20.0 | 1373 | primer: CCI 350; overall loaded length (inches): 1.772 |
| 340 | Rim Rock Bullets LWN-GC | 20.5 | 1405 | primer: CCI 350; overall loaded length (inches): 1.772; maximum |
| +P Handloading Data A 7 1/2-inch barreled Ruger Redhawk was used to fire all loads. Starline cases were used throughout. Temperature during testing was 20 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Barnes XPB | 24.5 | 1,441 | primer: CCI 350 |
| 225 | Barnes XPB | 22.0 | 1,313 | primer: CCI 350 |
| Barnes X-Pistol Bullets A Ruger New Model Blackhawk Bisley with 5 1/2-inch barrel used for testing the .44 Magnum loads. Hornady cases used throughout. Overall cartridge length: 1.595 inches. Temperature: 92 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Speer Mag GDHP | 26.0 | 1509 | start charge; primer: CCI 350 Magnum |
| 210 | Speer Mag GDHP | 28.0 | 1566 | maximum charge; primer: CCI 350 Magnum |
| 240 | Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP | 21.0 | 1325 | start charge; primer: CCI 350 Magnum |
| 240 | Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP | 23.0 | 1383 | maximum charge; primer: CCI 350 Magnum |
| 270 | Speer Mag GDSP | 17.5 | 1178 | start charge; primer: CCI 350 Magnum |
| 270 | Speer Mag GDSP | 19.5 | 1241 | maximum charge; primer: CCI 350 Magnum |
| (Handgun) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 180 | Hornady XTP | 29.0 | 1749 | start load; COL: 1.600"; 27,400 cup |
| 180 | Hornady XTP | 31.5 | 1859 | max load; COL: 1.600"; 32,300 cup |
| 200 | Nosler JHP | 27.5 | 1667 | start load; bullet diam.: .429"; COL: 1.600"; 27,500 cup |
| 200 | Nosler JHP | 29.5 | 1794 | max load; bullet diam.: .429"; COL: 1.600"; 36,200 cup |
| 210 | Sierra JHC | 26.0 | 1660 | start load; COL: 1.600"; 35,500 cup |
| 210 | Sierra JHC | 27.7 | 1749 | max load; COL: 1.600"; 37,900 cup |
| 225 | Speer JHP | 22.5 | 1508 | start load; bullet diam.: .429"; COL: 1.575"; 31,600 cup |
| 225 | Speer JHP | 24.7 | 1623 | max load; bullet diam.: .429"; COL: 1.575"; 37,700 cup |
| 240 | Nosler JHP | 22.5 | 1465 | start load; bullet diam.: .429"; COL: 1.600"; 30,100 cup |
| 240 | Nosler JHP | 24.5 | 1582 | max load; bullet diam.: .429"; COL: 1.600"; 38,100 cup |
| 270 | Speer GDSP | 19.0 | 1305 | start load; bullet diam.: .429"; COL: 1.600"; 31,800 cup |
| 270 | Speer GDSP | 21.5 | 1439 | max load; bullet diam.: .429"; COL: 1.600"; 38,300 cup |
| 280 | Swift JHP | 18.5 | 1278 | start load; COL: 1.700"; 34,300 cup |
| 280 | Swift JHP | 20.8 | 1384 | max load; COL: 1.700"; 38,400 cup |
| 300 | Hornady XTP | 15.5 | 1168 | start load; COL: 1.600"; 29,600 cup |
| 300 | Hornady XTP | 17.7 | 1280 | max load; COL: 1.600"; 37,600 cup |
| 325 | Beartooth Bullets LFN GC | 17.0 | 1217 | start load; COL: 1.730"; 29,400 cup |
| 325 | Beartooth Bullets LFN GC | 20.0 | 1360 | max load; COL: 1.730"; 38,600 cup |
| 330 | Beartooth Bullets LFN GC | 16.0 | 1186 | start load; COL: 1.730"; 29,800 cup |
| 330 | Beartooth Bullets LFN GC | 19.0 | 1332 | max load; COL: 1.730"; 38,000 cup |
| 355 | Beartooth Bullets LFN GC | 16.0 | 1178 | start load; COL: 1.710"; 31,700 cup |
| 355 | Beartooth Bullets LFN GC | 17.5 | 1247 | max load; COL: 1.710"; 37,900 cup |
| Hodgdon Pistol Data Case: Winchester; barrel length: 8.275"; twist: 1:20"; trim length: 1.280"; primer: Remington 2 1/2; bullet diam.: .430" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 310 | TrueShot WNFP-GC | 21.0 | 1370 | primer: CCI 350 |
| Oregon Trail Cast Bullet Loads Ruger New Model Blackhawk Bisley; 5 1/2-inch barrel; case: Starline; overall loaded length (inches): 1.630; maximum case length: 1.285 inches; trim-to length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 270 | Belt Mountain Punch Solid | 17.5 | 1044 | primer: CCI 350 |
| 270 | Belt Mountain Punch Solid | 19.0 | 1105 | primer: CCI 350 |
| 270 | Belt Mountain Punch Solid | 20.0 | 1153 | primer: CCI 350 |
| 270 | Belt Mountain Punch Solid | 21.0 | 1195 | primer: CCI 350 |
| Punch Solid A Smith & Wesson Model 629-4 with a 6-inch barrel was used to fire the loads. Starline cases were used throughout. Maximum case length: 1.285 inches; trim-to length: 1.275 inches; cartridge length: 1.670 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 210 | Speer GDHP | 26.5 | 2044 | start charge; primer: CCI 350 Magnum |
| 210 | Speer GDHP | 28.5 | 2102 | maximum charge; primer: CCI 350 Magnum |
| 240 | Speer JHP, GDHP, GDSP or JSP | 21.0 | 1663 | start charge; primer: CCI 350 Magnum |
| 240 | Speer JHP, GDHP, GDSP or JSP | 23.0 | 1780 | maximum charge; primer: CCI 350 Magnum |
| 270 | Speer GDSP | 17.5 | 1455 | start charge; primer: CCI 350 Magnum |
| 270 | Speer GDSP | 19.5 | 1557 | maximum charge; primer: CCI 350 Magnum |
| Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Marlin M1894; barrel length: 20"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Nosler Sporting Handgun Revolver JHP or JSP | 23.2 | 1576 | max; compressed load |
| 240 | Nosler Sporting Handgun Revolver JHP or JSP | 22.7 | 1547 | compressed load; most accurate load tested |
| 240 | Nosler Sporting Handgun Revolver JHP or JSP | 22.2 | 1515 | compressed load |
| Handgun Using 240 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 240 GR Nosler Sporting Handgun Revolver JHP or JSP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Nosler Sporting Handgun Revolver JHP | 17.0 | 1245 | max; compressed load |
| 300 | Nosler Sporting Handgun Revolver JHP | 16.5 | 1221 | most accurate load tested |
| 300 | Nosler Sporting Handgun Revolver JHP | 16.0 | 1192 | |
| Handgun Using 300 GR Nosler Bullets Handgun; case: Winchester; primer: WLP; barrel length/make: 8.25" Douglas; twist: 1-20"; bullets: 300 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.580"; maximum OACL: 1.610". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Sierra Jacketed Hollow Cavity | 23.0 | 1190 | case: Federal; overall loaded length (inches): 1.600; group (inches): 2.77 |
| 260 | Rim Rock standard cast Keith SWC Flat Base | 20.5 | 1138 | case: Remington; overall loaded length (inches): 1.660; group (inches): 2.30; 4 shots in 1.14 |
| Lightweight Loads Velocities were recorded 10 feet in front of the muzzle of the 4-inch barrel of a Smith & Wesson 329PD revolver. CCI 300 primers were used with all loads. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 270 | Speer Gold Dot softpoint | 19.5 | 1174 | group (inches): 1.25 |
| Load Data CCI 350 Magnum Pistol primers used except where otherwise specified in remarks; all loads used Federal cases and were fired through a Ruger Super Blackhawk with a 5.5-inch barrel; all groups were five shots fired at 25 yards | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Hornady HP-XTP | 20.7 | 1222 | |
| 200 | Hornady HP-XTP | 22.8 | 1281 | |
| 200 | Hornady HP-XTP | 25.0 | 1353 | |
| 200 | Hornady HP-XTP | 26.1 | 1423 | |
| 200 | Hornady HP-XTP | 27.1 | 1491 | maximum load |
| Revolver Using 200 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady HP-XTP or CL-SIL | 14.6 | 901 | |
| 240 | Hornady HP-XTP or CL-SIL | 17.1 | 992 | |
| 240 | Hornady HP-XTP or CL-SIL | 19.6 | 1100 | |
| 240 | Hornady HP-XTP or CL-SIL | 20.9 | 1207 | |
| 240 | Hornady HP-XTP or CL-SIL | 22.2 | 1307 | maximum load |
| Revolver Using 240 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Hornady HP-XTP | 14.1 | 920 | Do Not Reduce |
| 300 | Hornady HP-XTP | 15.3 | 998 | |
| 300 | Hornady HP-XTP | 16.4 | 1077 | maximum load |
| Revolver Using 300 GR Hornady Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.610". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 225 | Hornady FTX | 17.1 | 1061 | |
| 225 | Hornady FTX | 18.6 | 1128 | |
| 225 | Hornady FTX | 19.4 | 1195 | |
| 225 | Hornady FTX | 20.1 | 1263 | |
| 225 | Hornady FTX | 20.9 | 1320 | maximum load |
| Revolver using 225 GR Hornady FTX Bullets Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; COAL: 1.645"; case trim to length: 1.255". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 180 | Sierra JHC | 32.5 | 1812 | starting load |
| 180 | Sierra JHC | 35.0 | 1992 | maximum load |
| 200 | Barnes X | 31.5 | 1701 | starting load |
| 200 | Barnes X | 34.0 | 1868 | maximum load |
| 225 | Barnes X | 30.5 | 1672 | starting load |
| 225 | Barnes X | 33.0 | 1738 | maximum load |
| 240 | Hornady XTP | 31.0 | 1525 | starting load |
| 240 | Hornady XTP | 32.0 | 1682 | maximum load |
| Hodgdon Pistol Data case: Starline; barrel length: 10"; twist: 1:20"; trim length: 1.590"; primer: Federal 210; bullet diam.: .430"; COL: 1.925"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 225 | Barnes XPB | 25.5 | 1,501 | primer: CCI 350 |
| Barnes X-Pistol Bullets Some of this data is approaching 30,000 psi and is ONLY safe in heavy-frame Ruger Blackhawks and other modern guns designed to handle loads with this level of pressure. A Ruger New Model Blackhawk Bisley with 7 1/2-inch barrel used to test-fire loads. Starline cases used throughout. Overall cartridge length for the 225-grain loads was 1.575 inches. Overall cartridge length for the 250-grain loads was 1.670 inches. Temperature: 92 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Sierra JHC | 27.0 | 1431 | start load; COL: 1.600"; 23,800 cup |
| 240 | Sierra JHC | 27.8 | 1489 | max load; COL: 1.600"; 29,200 cup |
| 250 | Hornady XTP | 23.5 | 1331 | start load; COL: 1.600"; 25,800 cup |
| 250 | Hornady XTP | 25.5 | 1410 | max load; COL: 1.600"; 29,800 cup |
| 260 | Nosler Part | 19.0 | 1196 | start load; bullet diam.: .451"; COL: 1.650"; 24,500 cup |
| 260 | Nosler Part | 21.0 | 1312 | max load; bullet diam.: .451"; COL: 1.650"; 30,000 cup |
| 300 | Speer JFP | 18.0 | 1140 | start load; bullet diam.: .451"; COL: 1.650"; 24,500 cup |
| 300 | Speer JFP | 20.2 | 1203 | max load; bullet diam.: .451"; COL: 1.650"; 29,800 cup |
| 325 | Cast Performance LFN PB | 17.0 | 1061 | start load; COL: 1.680"; 20,700 cup |
| 325 | Cast Performance LFN PB | 20.5 | 1235 | max load; COL: 1.680"; 29,700 cup |
| 335 | Cast Performance LFN PB GC | 17.0 | 1052 | start load; COL: 1.680; 20,100 cup |
| 335 | Cast Performance LFN PB GC | 20.0 | 1206 | max load; COL: 1.680"; 29,600 cup |
| 360 | Cast Performance LFN PB GC | 15.5 | 984 | start load; COL: 1.680"; 22,400 cup |
| 360 | Cast Performance LFN PB GC | 18.0 | 1131 | max load; COL: 1.680"; 29,700 cup |
| (Ruger, Freedom Arms & T/C Only) Hodgdon Data The data is intended for 45 Colt Ruger Blackhawk, Freedom Arms, and Thompson Center Contender/Encore Handguns. Max pressure, 30,000 CUP. DO NOT USE THIS DATA IN ANY OTHER MAKE OR MODEL OF FIREARM. Case: Winchester; twist: 1:16"; primer: Winchester LP; barrel length: 7.25"; trim length: 1.280"; bullet diam.: .452" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 250 | Nosler Sporting Handgun Jacketed Hollow Point | 25.0 | 1401 | maximum load |
| 250 | Nosler Sporting Handgun Jacketed Hollow Point | 24.5 | 1378 | most accurate load tested |
| 250 | Nosler Sporting Handgun Jacketed Hollow Point | 24.0 | 1352 | |
| Ruger & TC Contender Using Nosler Bullets Case: Winchester; primer: WLP; barrel length/make: 12" Contender; twist: 1-16"; bullets: 250 GR Nosler Sporting Handgun Revolver JHP; OACL: 1.590"; maximum OACL: 1.600". Use Maximum Loads with Caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 280 | RCBS 45-270-SAA | 23.0 | 1,365 | primer: CCI 350 |
| Load Data (32,000 cup) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Hornady XTP-MAG or HP-XTP | 15.0 | 1021 | |
| 300 | Hornady XTP-MAG or HP-XTP | 15.9 | 1080 | |
| 300 | Hornady XTP-MAG or HP-XTP | 16.8 | 1139 | |
| 300 | Hornady XTP-MAG or HP-XTP | 17.7 | 1197 | maximum load |
| T/C & Ruger Using Hornady Bullets Gun: Thompson/Center Encore; barrel length: 12 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; 240 and 300 GR Hornady XTP-MAG COAL: 1.655"; 250 HP-XTP COAL: 1.595"; 300 HP-XTP COAL: 1.580"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 240 | Hornady XTP-Mag. | 37.5 | 1,929 | starting load; bullet diam.: .452"; COL: 1.725"; 39,800 PSI |
| 240 | Hornady XTP-Mag. | 39.0 | 1,973 | compressed powder charge; maximum load; bullet diam.: .452"; COL: 1.725"; 41,000 PSI |
| 260 | Hornady XTP-Mag. | 32.0 | 1,732 | starting load; bullet diam.: .452"; COL: 1.725"; 36,200 PSI |
| 260 | Hornady XTP-Mag. | 33.0 | 1,781 | compressed powder charge; maximum load; bullet diam.: .452"; COL: 1.725"; 38,900 PSI |
| 265 | Cast Performance Bullet LFP/GC | 32.0 | 1,710 | starting load; bullet diam.: .453"; COL: 1.670"; 34,800 PSI |
| 265 | Cast Performance Bullet LFP/GC | 33.0 | 1,777 | compressed powder charge; maximum load; bullet diam.: .453"; COL: 1.670"; 37,800 PSI |
| 300 | Hornady XTP-Mag. | 26.0 | 1,552 | starting load; bullet diam.: .452"; COL: 1.725"; 39,500 PSI |
| 300 | Hornady XTP-Mag. | 28.0 | 1,615 | maximum load; bullet diam.: .452"; COL: 1.725"; 44,900 PSI |
| Hodgdon Pistol Data case: Starline; barrel length: 8"; twist: 1:24"; trim length: 1.340"; primer: CCI350; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 250 | Barnes XPB | 33.0 | 1,419 | primer: Remington 7 1/2; compressed |
| Barnes X-Pistol Bullets Firearm used was a Freedom Arms Model 83 with a 7 1/2-inch barrel. Winchester cases used throughout. Overall cartridge length: 1.765 inches. Temperature: 92 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Freedom Arms JHP | 35.0 | 1952 | start load; bullet diam.: .452"; COL: 1.765"; 39,800 cup |
| 240 | Freedom Arms JHP | 38.0 | 2033 | max load; bullet diam.: .452"; COL: 1.765"; 43,100 cup |
| 250 | Barnes X | 26.0 | 1620 | start load; bullet diam.: .451"; COL: 1.780"; 30,100 cup |
| 250 | Barnes X | 28.0 | 1738 | max load; bullet diam.: .451"; COL: 1.780"; 41,700 cup |
| 260 | Freedom Arms JFP | 33.4 | 1744 | start load; bullet diam.: .452"; COL: 1.765"; 28,800 cup |
| 260 | Freedom Arms JFP | 35.5 | 1895 | max load; bullet diam.: .452"; COL: 1.765"; 37,900 cup |
| 300 | Freedom Arms JFP | 29.0 | 1666 | start load; bullet diam.: .452"; COL: 1.775"; 39,800 cup |
| 300 | Freedom Arms JFP | 31.0 | 1746 | max load; bullet diam.: .452"; COL: 1.775"; 45,000 cup |
| 325 | Cast Performance LFN PB | 23.2 | 1468 | start load; bullet diam.: .452"; COL: 1.760"; 33,200 cup |
| 325 | Cast Performance LFN PB | 24.0 | 1526 | max load; bullet diam.: .452"; COL: 1.760"; 38,900 cup |
| 325 | Swift HP | 21.0 | 1395 | start load; bullet diam.: .451"; COL: 1.750"; 41,400 cup |
| 325 | Swift HP | 24.0 | 1558 | max load; bullet diam.: .451"; COL: 1.750"; 52,600 cup |
| 335 | Cast Performance LFN GC | 21.0 | 1377 | start load; bullet diam.: .452"; COL: 1.770"; 34,000 cup |
| 335 | Cast Performance LFN GC | 24.0 | 1517 | max load; bullet diam.: .452"; COL: 1.770"; 44,200 cup |
| 360 | Cast Performance LFN GC | 20.0 | 1330 | start load; bullet diam.: .452"; COL: 1.760"; 38,000 cup |
| 360 | Cast Performance LFN GC | 23.0 | 1477 | max load; bullet diam.: .452"; COL: 1.760"; 48,200 cup |
| 395 | Cast Performance LFN GC | 17.5 | 1212 | start load; bullet diam.: .452"; COL: 1.770"; 40,100 cup |
| 395 | Cast Performance LFN GC | 20.0 | 1331 | max load; bullet diam.: .452"; COL: 1.770"; 47,100 cup |
| Hodgdon Pistol Data Case: Freedom Arms; twist: 1:24"; primer: Winchester SR; barrel length: 9.375"; trim length: 1.380". NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 260 | Nosler Partition | 36.0 | 1,701 | |
| 260 | Nosler Partition | 37.0 | 1,756 | |
| 260 | Nosler Partition | 38.0 | 1,789 | |
| 300 | Nosler Partition | 32.0 | 1,580 | |
| 300 | Freedom Arms JFP | 31.0 | 1,528 | |
| 300 | Freedom Arms JFP | 32.0 | 1,598 | |
| 300 | Sierra Jacketed Soft Point | 32.0 | 1,611 | |
| in a Freedom Arms Model 83 (4 3/4-inch barrel) Freedom Arms Model 83 with barrel length of 4 3/4 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 260 | Nosler Partition | 36.0 | 1,761 | |
| 260 | Nosler Partition | 37.0 | 1,789 | |
| 260 | Nosler Partition | 38.0 | 1,846 | |
| 300 | Nosler Partition | 32.0 | 1,626 | |
| 300 | Freedom Arms JFP | 31.0 | 1,569 | |
| 300 | Freedom Arms JFP | 32.0 | 1,659 | |
| 300 | Sierra Jacketed Soft Point | 32.0 | 1,655 | |
| in a Freedom Arms Model 83 (7 1/2-inch barrel) Freedom Arms Model 83 with barrel length of 7 1/2 inches. Remington 7 1/2 and Federal 205 (Small Rifle Magnum) primers and Starline cases used throughout. Maximum case length is 1.383 inches and trim-to length is 1.373 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 260 | Nosler Partition | 47.5 | 1,864 | |
| 300 | Hornady XTP MAG | 38.0 | 1,610 | |
| 300 | Hornady XTP MAG | 41.0 | 1,661 | |
| 300 | Hornady XTP MAG | 44.0 | 1,730 | |
| 335 | Cast Perf WLN GC | 42.5 | 1,776 | |
| 360 | Oregon Trail WNFP GC | 40.0 | 1,717 | |
| 395 | Cast Perf WLN GC | 34.0 | 1,477 | |
| 395 | Cast Perf WLN GC | 36.5 | 1,586 | maximum |
firearm: Smith & Wesson .460 XVR; SAAMI maximum average pressure: 65,000 psi; barrel length: 7 1/2-inches; case: Starline; primer: CCI #200; trim to case length: 1.790"; temperature: 15 degrees | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 260 | Nosler Partition | 43.0 | 1,971 | starting load; dia.: .451; COL: 2.175"; 39,200 psi |
| 260 | Nosler Partition | 46.0 | 2,080 | maximum load; dia.: .451; COL: 2.175"; 43,400 psi |
| 300 | Hornady XTP Mag | 40.0 | 1,970 | starting load; dia.: .452; COL: 2.160"; 46,300 psi |
| 300 | Hornady XTP Mag | 44.0 | 2,067 | maximum load; dia.: .452; COL: 2.160"; 53,600 psi |
| 250 | Barnes X | 39.0 | 1,945 | starting load; dia.: .451; COL: 2.200"; 41,400 psi |
| 250 | Barnes X | 42.0 | 2,044 | maximum load; dia.: .451; COL: 2.200"; 43,600 psi |
| 265 | Swift HP | 43.0 | 1,988 | starting load; dia.: .451; COL: 2.180"; 40,800 psi |
| 265 | Swift HP | 46.5 | 2,118 | maximum load; dia.: .451; COL: 2.180"; 45,900 psi |
| 325 | Cast Performance Bullets LFN PB | 39.0 | 1,843 | starting load; dia.: .452; COL: 2.200"; 43,700 psi |
| 325 | Cast Performance Bullets LFN PB | 42.0 | 1,925 | maximum load; dia.: .452; COL: 2.200"; 46,400 psi |
| 325 | Swift HP | 36.0 | 1,769 | starting load; dia.: .451; COL: 2.175"; 44,500 psi |
| 325 | Swift HP | 41.0 | 1,955 | maximum load; dia.: .451; COL: 2.175"; 55,600 psi |
| 335 | Cast Performance Bullets WLN GC | 39.0 | 1,834 | starting load; dia.: .452; COL: 2.180"; 45,000 psi |
| 335 | Cast Performance Bullets WLN GC | 41.5 | 1,919 | maximum load; dia.: .452; COL: 2.180"; 49,300 psi |
| 360 | Cast Performance Bullets WLN GC | 36.0 | 1,752 | starting load; dia.: .452; COL: 2.190"; 45,100 psi |
| 360 | Cast Performance Bullets WLN GC | 40.0 | 1,882 | maximum load; dia.: .452; COL: 2.190"; 52,600 psi |
| 395 | Cast Performance Bullets WLN GC | 33.0 | 1,665 | starting load; dia.: .452; COL: 2.185"; 47,200 psi |
| 395 | Cast Performance Bullets WLN GC | 36.8 | 1,796 | maximum load; dia.: .452; COL: 2.185"; 56,400 psi |
| Hodgdon Pistol Data case: Starline; bbl: 10.743"; PR: Winchester LRM; twist: 1:20"; trim: 1.790" - This data was developed with Starline Brass which was designed for use with large rifle type primers. Some brands of brass were designed solely for use with large pistol primers. Check with the manufacturer of the brass for correct primer usage. Rifle primers used in a pistol primer pocket cannot be seated sufficiently deep to be below flush with the casehead, which could result in sympathetic ignition of other rounds in the cylinder during recoil. Such use may result in damage to the firearm and/or result in injury or death of the shooter and/or bystander. Never exceed loads listed. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady Jacketed Mag-XTP HP | 46.0 | 2193 | sugg. start load; 2.160" OAL; 43,200 psi |
| 240 | Hornady Jacketed Mag-XTP HP | 51.0 | 2268 | max load; compressed powder charge; 2.160" OAL; 44,700 psi |
| 250 | Barnes XPB | 36.0 | 2014 | sugg. start load; 2.200" OAL; 44,000 psi |
| 250 | Barnes XPB | 40.0 | 2057 | max load; 2.200" OAL; 49,800 psi |
| Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.790"; primers: Winchester WLRM; primer size: Large Rifle, Magnum; Lyman shell holder: No. 7; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 10"; twist: 1-20"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Speer UCSP | 29.0 | 1464 | start charge; reduced recoil load |
| 300 | Speer UCSP | 31.0 | 1545 | max charge; reduced recoil load |
| 300 | Speer Casull GDHP | 34.0 | 1634 | start charge; full pressure load |
| 300 | Speer Casull GDHP | 36.0 | 1703 | max charge; full pressure load |
| Speer Handgun Data Reloading Manual #14 max. case length: 1.800"; trim-to length: 1.790"; max cart. OAL: 2.290"; RCBS shell holder: #14; cart. case: Hornady; primer: Federal 210; test firearm Smith & Wesson X-Frame; barrel length: 8.375"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady XTP Mag | 40.1 | 1604 | |
| 240 | Hornady XTP Mag | 43.9 | 1644 | |
| 240 | Hornady XTP Mag | 47.6 | 1684 | |
| 240 | Hornady XTP Mag | 51.4 | 1723 | maximum load |
| 300 | Hornady XTP Mag | 29.3 | 1364 | |
| 300 | Hornady XTP Mag | 33.9 | 1405 | |
| 300 | Hornady XTP Mag | 36.1 | 1446 | |
| 300 | Hornady XTP Mag | 38.4 | 1488 | maximum load |
| Using Hornady Bullets Gun: Smith & Wesson Model 460 XVR; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Rifle; bullet diameter: .452"; bullets: 200 GR Hornady FTX (460 S&W) COAL: 2.275", 240 GR Hornady XTP Mag COAL: 2.160", 300 GR Hornady XTP Mag COAL: 2.165"; maximum COAL: 2.275"; maximum case length: 1.800"; trim to length: 1.790". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 265 | Cast Performance Bullet Co GC | 36.0 | 1628 | |
| 300 | Cast Performance Bullet Co GC | 38.0 | 1615 | |
| 335 | Cast Performance Bullet Co GC | 38.0 | 1571 | |
| 360 | Cast Performance Bullet Co GC | 36.0 | 1591 | |
| 360 | Oregon Trail LaserCast GC | 36.0 | 1594 | |
| Cast Bullets S&W Model 460 XVR x 8 3/8"; .460 Starline Brass; CCI #200 LR Primers (John Taffin Tests) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 200 | Barnes XPB | 46.0 | 1901 | |
| 300 | Hornady XTP | 40.0 | 1659 | |
| 300 | NWCP | 35.0 | 1480 | |
| 300 | Sierra JFN | 40.0 | 1659 | |
| Jacketed Bullets S&W Model 460 XVR x 8 3/8"; .460 Starline Brass; CCI #200 LR Primers (John Taffin Tests) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 240 | Hornady Mag Jacketed XTP/HP | 46.0 | 2242 | sugg. start load; 2.160" OAL |
| 240 | Hornady Mag Jacketed XTP/HP | 51.0 | 2390 | max load; compressed powder charge; 2.160" OAL |
| 250 | Barnes XPB | 36.0 | 1991 | sugg. start load; 2.200" OAL |
| 250 | Barnes XPB | 40.0 | 2132 | max load; 2.200" OAL |
| in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Starline; trim-to length: 1.790"; primers: Winchester WLRM; primer size: Large Rifle, Magnum; Lyman shell holder: No. 7; cast bullets used sized to .452" dia.; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-20"; groove dia.: .451" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 400 | Speer Gold Dot | 27.0 | 1,312 | 1.70 inches |
| 400 | Hornady XTP | 27.0 | 1,366 | 1.22 inches |
| Freedom Arms Loads were tested at 25 yards in a Freedom Arms Model 757 with a 6-inch barrel. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Hornady XTP | 27.0 | 1427 | start load; COL: 1.740"; 34,600 psi |
| 325 | Hornady XTP | 32.0 | 1629 | max load; COL: 1.740"; 47,900 psi |
| 370 | CPB LFP | 27.0 | 1442 | start load; COL: 1.770"; 41,200 psi |
| 370 | CPB LFP | 28.5 | 1531 | max load; COL: 1.770"; 46,300 psi |
| 400 | Hornady XTP | 21.0 | 1192 | start load; COL: 1.740"; 35,900 psi |
| 400 | Hornady XTP | 24.0 | 1344 | max load; COL: 1.740"; 46,500 psi |
| 405 | CPB LFP GC | 22.0 | 1278 | start load; COL: 1.745"; 39,500 psi |
| 405 | CPB LFP GC | 25.0 | 1389 | max load; COL: 1.745"; 46,900 psi |
| Hodgdon Pistol Data Case: Hornady; twist: 1:20"; primer: Winchester LP; barrel length: 8"; trim length: 1.390"; bullet diam.: .475"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 385 | Lead | 29.0 | 1523 | start load |
| 385 | Lead | 29.0 | 1523 | never exceed; 47,900 psi |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. Min. OAL: 1.810 | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Barnes XPB HP | 27.8 | 1563 | sugg. start load; 1.810" OAL; 33,500 psi |
| 275 | Barnes XPB HP | 30.9 | 1720 | max load; 1.810" OAL; 46,900 psi |
| 325 | Hornady Jacketed XTP/HP | 27.7 | 1510 | sugg. start load; 39,000 psi |
| 325 | Hornady Jacketed XTP/HP | 30.8 | 1643 | max load; 46,400 psi |
| 400 | Hornady Jacketed XTP/HP | 21.4 | 1231 | sugg. start load; 38,500 psi |
| 400 | Hornady Jacketed XTP/HP | 23.8 | 1351 | max load; 48,600 psi |
| Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.395"; primers: CCI 350; primer size: Large Pistol, Magnum; Lyman shell holder: No. 17; 1.740" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 400 | Speer GDSP | 24.0 | 1239 | start charge; primer: CCI 350 Magnum |
| 400 | Speer GDSP | 26.0 | 1319 | max charge; primer: CCI 350 Magnum |
| Speer Handgun Data Reloading Manual #14 max. case length: 1.400"; trim-to length: 1.390"; max cart. OAL: 1.765"; RCBS shell holder: #40; cart. case: Buffalo Bore; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Freedom Arms M767; barrel length: 6"; Important Safety Note: Older developed in cut-down 45-70 cases must not be used in new Buffalo Bore or Hornady cases, as high pressures will result; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Hornady XTP Mag | 26.0 | 1292 | |
| 325 | Hornady XTP Mag | 28.3 | 1336 | |
| 325 | Hornady XTP Mag | 29.4 | 1387 | |
| 325 | Hornady XTP Mag | 30.5 | 1439 | |
| 325 | Hornady XTP Mag | 31.6 | 1488 | maximum load |
| Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: BBA/Starline; primer: Winchester Large Pistol; bullet diameter: .475"; COAL: 1.740"; maximum COAL: 1.765"; maximum case length: 1.400"; trim to length: 1.390". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 400 | Speer Gold Dot | 27.0 | 1,312 | |
| 400 | Hornady XTP-Mag | 27.0 | 1,366 | |
| Load Data A Freedom Arms Model 757 with a 6-inch barrel was used to test fire all loads. Buffalo Bore/Starline cases used throughout. Large Pistol primers used for reduced loads; all others used Large Pistol Magnum. Maximum case length: 1.400 inches; trim-to length: 1.395 inches; overall cartridge length: 1.750 to 1.765 inches maximum. Bullet diameter: .476 inch for cast bullets, .475 inch for jacketed. Industry maximum average pressure: 50,000 psi. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 325 | Hornady XTP | 22.5 | 1,416 | starting load; C.O.L. = 1.620 inches; 39,300 psi |
| 325 | Hornady XTP | 25.1 | 1,525 | maximum load; C.O.L. = 1.620 inches; 45,200 psi |
| 370 | CPB LFP | 22.0 | 1,354 | starting load; C.O.L. = 1.640 inches; 34,300 psi |
| 370 | CPB LFP | 26.0 | 1,539 | maximum load; C.O.L. = 1.640 inches; 46,800 psi |
| 400 | Hornady XTP | 15.0 | 1,067 | starting load; C.O.L. = 1.620 inches; 34,200 psi |
| 400 | Hornady XTP | 18.0 | 1,229 | maximum load; C.O.L. = 1.620 inches; 45,600 psi |
| 405 | CPB (w/GCK) | 19.0 | 1,219 | starting load; C.O.L. = 1.620 inches; 34,400 psi |
| 405 | CPB (w/GCK) | 21.0 | 1,337 | maximum load; C.O.L. = 1.620 inches; 43,900 psi |
All bullets measure .475 inch. Winchester Large Pistol primers used throughout in Hornady cases. Barrel length: 7.5 inches with one-in-18-inch twist. Trim cases to 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Hornady XTP | 22.5 | 1416 | start load; COL: 1.620"; 39,300 psi |
| 325 | Hornady XTP | 25.1 | 1525 | max load; COL: 1.620"; 45,200 psi |
| 355 | Beartooth Bullets LFN GC | 24.0 | 1395 | start load; bullet diam.: .476"; COL: 1.630"; 34,400 psi |
| 355 | Beartooth Bullets LFN GC | 26.5 | 1531 | max load; bullet diam.: .476"; COL: 1.630"; 44,300 psi |
| 370 | Cast Performance Bullets LFP | 22.0 | 1354 | start load; COL: 1.640"; 34,300 psi |
| 370 | Cast Performance Bullets LFP | 26.0 | 1539 | max load; COL: 1.640"; 46,800 psi |
| 400 | Hornady XTP | 15.0 | 1067 | start load; COL: 1.620"; 34,200 psi |
| 400 | Hornady XTP | 18.0 | 1229 | max load; COL: 1.620"; 45,600 psi |
| 405 | Cast Performance Bullets (w/GCK) | 19.0 | 1219 | start load; COL: 1.620"; 34,400 psi |
| 405 | Cast Performance Bullets (w/GCK) | 21.0 | 1337 | max load; COL: 1.620"; 43,900 psi |
| 420 | Beartooth Bullets LFN GC | 18.0 | 1157 | start load; bullet diam.: .476"; COL: 1.640"; 37,000 psi |
| 420 | Beartooth Bullets LFN GC | 20.0 | 1267 | max load; bullet diam.: .476"; COL: 1.640"; 46,000 psi |
| Hodgdon Data Case: Hornady; twist: 1:18"; primer: Winchester LP; barrel length: 7 1/2"; trim length: 1.275"; bullet diam.: .475" (except where otherwise specified in remarks). NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | XTP | 22.5 | 1416 | start load; min OAL: 1.620 |
| 325 | XTP | 25.1 | 1525 | never exceed; min OAL: 1.620; 45,200 psi |
| 370 | Lead | 22.0 | 1354 | start load; min OAL: 1.640 |
| 370 | Lead | 26.0 | 1539 | never exceed; min OAL: 1.640; 46,800 psi |
| 400 | XTP | 15.0 | 1067 | start load; min OAL: 1.620 |
| 400 | XTP | 18.0 | 1229 | never exceed; min OAL: 1.620; 45,600 psi |
| 405 | Lead | 19.0 | 1219 | start load; min OAL: 1.620 |
| 405 | Lead | 21.0 | 1337 | never exceed; min OAL: 1.620; 43,900 psi |
| Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol primer. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Speer Jacketed HP | 25.8 | 1435 | sugg. start load; 1.650" OAL; 38,600 psi |
| 275 | Speer Jacketed HP | 28.7 | 1695 | max load; 1.650" OAL; 45,700 psi |
| 325 | Hornady Jacketed HP/XTP | 23.0 | 1388 | sugg. start load; 38,800 psi |
| 325 | Hornady Jacketed HP/XTP | 25.3 | 1510 | max load; 45,800 psi |
| 400 | Hornady Jacketed HP/XTP | 16.6 | 1124 | sugg. start load; 37,400 psi |
| 400 | Hornady Jacketed HP/XTP | 18.5 | 1235 | max load; 46,000 psi |
| Lyman Reloading Handbook 49th Edition cases: Hornady; trim-to length: 1.275"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 17; 1.620" OAL (except where otherwise specified in remarks); firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-18"; groove dia.: .475" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 355 | TrueShot WNFP-GC | 26.0 | 1415 | primer: CCI 350 |
| Oregon Trail Cast Bullet Loads Freedom Arms Model 757; 6-inch barrel; case: Hornady; overall loaded length (inches): 1.665; maximum case length: 1.285 inches; trim-to length: 1.275 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Speer Gold Dot SP | 26.0 | 1,427 | starting load |
| 325 | Speer Gold Dot SP | 28.0 | 1,492 | MAXIMUM load |
| 400 | Speer Gold Dot SP | 18.0 | 1,073 | starting load |
| 400 | Speer Gold Dot SP | 20.0 | 1,133 | MAXIMUM load |
| Speer Data case: Hornady; primer: CCI 300/350; test firearm: Ruger Redhawk; barrel: 9 1/2"; COAL tested 1.650"; use MAXIMUM loads with caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Speer GDSP | 26.0 | 1427 | start charge; primer: CCI 350 Magnum |
| 325 | Speer GDSP | 28.0 | 1492 | max charge; primer: CCI 350 Magnum |
| 400 | Speer GDSP | 18.0 | 1073 | start charge; primer: CCI 350 Magnum |
| 400 | Speer GDSP | 20.0 | 1133 | max charge; primer: CCI 350 Magnum |
| Speer Handgun Data Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.650"; RCBS shell holder: #40; cart. case: Hornady; primer: CCI 300 (except where otherwise noted in remarks); test firearm: Ruger Redhawk; barrel length: 9.5"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Hornady XTP Mag | 16.1 | 809 | |
| 325 | Hornady XTP Mag | 18.6 | 927 | |
| 325 | Hornady XTP Mag | 21.2 | 1065 | |
| 325 | Hornady XTP Mag | 23.7 | 1202 | |
| 325 | Hornady XTP Mag | 24.9 | 1332 | maximum load |
| 400 | Hornady XTP Mag | 15.0 | 810 | Do Not Reduce |
| 400 | Hornady XTP Mag | 16.8 | 882 | |
| 400 | Hornady XTP Mag | 17.7 | 965 | |
| 400 | Hornady XTP Mag | 18.6 | 1055 | |
| 400 | Hornady XTP Mag | 19.6 | 1128 | maximum load |
| Using Hornady Bullets Gun: Freedom Arms Model 757; barrel length: 6 inches; case: Hornady; primer: Winchester Large Pistol for Standard and Magnum loads; bullet diameter: .475"; 325 GR COAL: 1.620"; 400 GR COAL: 1.630"; maximum COAL: 1.650"; maximum case length: 1.285"; trim to length: 1.275". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Hawk JHP | 28.5 | 1,411 | primer: CCI 350 |
| 355 | Oregon Trail True Shot | 26.0 | 1,415 | primer: CCI 350 |
| in an FA Model 757 Test gun was a Freedom Arms Model 757 with a 6-inch barrel. Maximum pressure was 48,000 psi. Hornady cases used throughout. Temperature during testing was 85 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 300 | Hornady XTP-MAG | 24.3 | 1222 | |
| 300 | Hornady XTP-MAG | 27.2 | 1305 | |
| 300 | Hornady XTP-MAG | 30.2 | 1415 | |
| 300 | Hornady XTP-MAG | 31.7 | 1498 | maximum load |
| Using Hornady Bullets Gun: Magnum Research BFR; barrel length: 8 1/8 inches; case: IMI; primer: Winchester Large Pistol; bullet diameter: 500"/.501"; 300 gr Hornady XTP-MAG COAL: 1.580"; maximum COAL: 1.575"; maximum case length: 1.285"; trim to length: 1.280". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 325 | Speer JHP | 37.2 | 1825 | |
| 350 | Hornady XTP JHP | 35.4 | 2000 | |
| 375 | Barnes X | 34.0 | 1900 | |

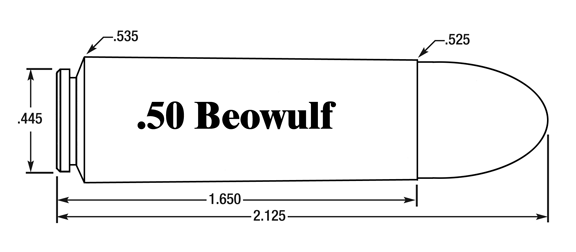

The 50 Beowulf is the brain-child of Bill Alexander of Alexander Arms and was intended to give AR-15 users more knockdown power than the Thompson and M-3 grease guns firing the 45 ACP. It certainly fulfills that requirement and in addition makes a useful rifle for large game hunters as well. Using modern bullets, like the 375 gr. Barnes X at well over 1900 fps, the 500 Beowulf surpasses the powerful 500 Linebaugh and S&W pistols, the "big fifty" (50-90) Sharps and the 50-110 Winchester buffalo rifle in energies and virtually duplicates the original English 500 BP nitro. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 325 | Speer JHP | 37.2 | OAL: 2.110" | |
| 334 | AA FMJ | 37.7 | OAL: 2.110"; AA = Alexander Arms purpose designed projectiles | |
| 334 | AA JHP | 37.7 | OAL: 2.110"; AA = Alexander Arms purpose designed projectiles | |
| 348 | Power Belt Aerotip | 35.5 | OAL: 2.160"; please remove plastic belt from bullet before loading | |
| 300 | SinterFire Lead free/Frangible | 35.0 | OAL: 2.220" | |
| 350 | Sierra JHP | 35.4 | OAL: 2.130" | |
| 350 | Hornady XTP JHP | 35.4 | OAL: 2.100" | |
| Data maximum case length: 1.655 inches; minimum case length: 1.644 inches; primer: CCI #350 Large Pistol Magnum; ensure taper crimp allows round to chamber easily - DO NOT OVER CRIMP; please note that factory new brass does not require resizing before use; new and reloaded ammunition should only be used in modern guns in good condition (Alexander Arms Data) | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 410 | LFP | 30.0 | 1353 | start load; 31,100 psi |
| 410 | LFP | 32.5 | 1436 | max load; 35,100 psi |
| 425 | LFP (w/GCK) | 29.5 | 1354 | start load; 30,900 psi |
| 425 | LFP (w/GCK) | 31.5 | 1428 | max load; 34,600 psi |
| 468 | LFP | 27.5 | 1279 | start load; 31,600 psi |
| 468 | LFP | 29.5 | 1343 | max load; 34,000 psi |
| Hodgdon Pistol Data Case: Starline; twist: 1:20"; primer: CCI 350; barrel length: 8"; trim length: 1.400"; bullet diam.: .511" (except where otherwise specified in remarks); COL: 1.800" (except where otherwise specified in remarks); NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 275 | Barnes XPB | 40.5 | 1977 | minimum; COAL: 2.085" |
| 275 | Barnes XPB | 44.0 | 2137 | maximum; COAL: 2.085" |
| 325 | Barnes XPB | 40.0 | 1862 | minimum; COAL: 2.290" |
| 325 | Barnes XPB | 44.5 | 2002 | maximum; COAL: 2.290" |
| 375 | Barnes XPB | 31.0 | 1605 | minimum; COAL: 2.290" |
| 375 | Barnes XPB | 34.0 | 1738 | maximum; COAL: 2.290" |
| Barnes Reloading Manual #4 case: Starline; case trim length: 1.615"; twist rate: 1:15"; primer: Federal GM210M; barrel length: 10"; maximum loads should be used with caution; NOTE: Roll crimp the case mouth into the cannelure. Brass for this cartridge has been made with both Large Pistol and Large Rifle primer pockets. Our data was developed using Large Rifle primers. The primer pockets for Large Rifle primers are the same diameter, but slightly deeper than the primer pockets designed for Large Pistol primers. Cases with the shallower primer pocket can be reamed deeper to accept Large Rifle primers. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 350 | Sierra JHP | 37.3 | 1506 | COAL: 2.050 inches |
| 350 | Sierra JHP | 41.2 | 1709 | Maximum Load; COAL: 2.050 inches |
| 400 | Sierra JSP | 31.5 | 1400 | COAL: 2.062 inches |
| 400 | Sierra JSP | 33.2 | 1415 | COAL: 2.062 inches |
| 400 | Sierra JSP | 34.9 | 1436 | COAL: 2.062 inches |
| 400 | Sierra JSP | 36.6 | 1452 | Maximum Load; COAL: 2.062 inches |
| using Sierra bullets Gun: Smith & Wesson Model 500; Barrel Length: 8 3/8 inches; Case: Starline "R"; Primer: Winchester Large Rifle; Bullet Diameter: .500 inches; Maximum COAL: 2.250 inches; Maximum Case Length: 1.620 inches; Trim to Length: 1.615 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Barnes XPB HP | 37.8 | 1958 | sugg. start load |
| 275 | Barnes XPB HP | 42.0 | 2098 | max load |
| 325 | Barnes XPB HP | 36.0 | 1810 | sugg. start load |
| 325 | Barnes XPB HP | 40.0 | 1963 | max load |
| 350 | Hornady Jacketed HP/XTP | 33.3 | 1714 | sugg. start load |
| 350 | Hornady Jacketed HP/XTP | 37.0 | 1867 | max load |
| 375 | Barnes XPB HP | 30.6 | 1633 | sugg. start load |
| 375 | Barnes XPB HP | 34.0 | 1762 | max load |
| 400 | Sierra Jacketed FP | 31.5 | 1578 | sugg. start load |
| 400 | Sierra Jacketed FP | 35.0 | 1698 | max load |
| 500 | Hornady Jacketed FP | 25.0 | 1320 | sugg. start load |
| 500 | Hornady Jacketed FP | 27.7 | 1431 | max load |
| 375 | Cast #501680 | 30.0 | 1595 | sugg. start load |
| 375 | Cast #501680 | 33.2 | 1733 | max load |
| Lyman Reloading Handbook 49th Edition Starline brass designed for large rifle primers was used to develop this data. Do not use cases designed for large pistol primers with this data. Starline brass designed for large rifle primers has "R" after "Mag" on the headstamp to designate a large rifle pocket. A heavy roll crimp should be used to allow for complete ignition of the slow burning powders used. Cases: Starline; trim-to length: 1.615"; primers: CCI 200; primer size: Large Rifle; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-18"; groove dia.: .501" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Barnes XPB HP | 37.8 | 1958 | sugg. start load; 2.085" OAL |
| 275 | Barnes XPB HP | 42.0 | 2098 | max load; 2.085" OAL |
| 325 | Barnes XPB HP | 36.0 | 1810 | sugg. start load; 2.290" OAL |
| 325 | Barnes XPB HP | 40.0 | 1963 | max load; 2.290" OAL |
| 350 | Hornady Jacketed HP/XTP | 33.3 | 1714 | sugg. start load; 1.985" OAL |
| 350 | Hornady Jacketed HP/XTP | 37.0 | 1867 | max load; 1.985" OAL |
| 375 | Barnes XPB HP | 30.6 | 1633 | sugg. start load; 2.080" OAL |
| 375 | Barnes XPB HP | 34.0 | 1762 | max load; 2.080" OAL |
| 400 | Sierra Jacketed FP | 31.5 | 1578 | sugg. start load; 2.050" OAL |
| 400 | Sierra Jacketed FP | 35.0 | 1698 | max load; 2.050" OAL |
| 500 | Hornady Jacketed FP | 25.0 | 1320 | sugg. start load; 2.065" OAL |
| 500 | Hornady Jacketed FP | 27.7 | 1431 | max load; 2.065" OAL |
| 375 | Cast #501680 | 30.0 | 1595 | sugg. start load; 2.035" OAL |
| 375 | Cast #501680 | 33.2 | 1733 | max load; 2.035" OAL |
| in a T/C Contender & Encore Lyman Reloading Manual 49th Edition This data was developed for use in the T/C Contender and Encore handguns. It can also be used in other single shot or bolt-action handguns such as the Remington XP-100 and Savage Striker. Do not use these loads in any other type of handgun. Cases: Starline; trim-to length: 1.615"; primers: CCI 200; primer size: Large Rifle; Lyman shell holder: No. 17; firearm used: Thompson/Center Encore; barrel length: 15"; twist: 1-18"; groove dia.: .501" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Barnes | 44.0 | 1,761 | |
| 370 | Cast Performance WFN GC | 44.5 | 1,689 | |
Starline cases and Winchester Large Rifle primers used throughout. Temperature during testing was 80 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 350 | Hornady XTP-MAG | 31.7 | 1,400 | primer: WLPM or WLR; C.O.L.: 2.000" |
| 350 | Hornady XTP-MAG | 34.0 | 1,500 | primer: WLPM or WLR; C.O.L.: 2.000" |
| 350 | Hornady XTP-MAG | 36.3 | 1,600 | primer: WLPM or WLR; C.O.L.: 2.000" |
| 350 | Hornady XTP-MAG | 37.5 | 1,650 | primer: WLPM or WLR; C.O.L.: 2.000" |
| 350 | Hornady XTP-MAG | 38.6 | 1,700 | maximum load; primer: WLPM or WLR; C.O.L.: 2.000" |
| 500 | Hornady JFP | 17.6 | 1,000 | primer: WLP; C.O.L.: 2.040" |
| 500 | Hornady JFP | 21.3 | 1,100 | primer: WLP; C.O.L.: 2.040" |
| 500 | Hornady JFP | 25.0 | 1,200 | primer: WLP; C.O.L.: 2.040" |
| 500 | Hornady JFP | 28.7 | 1,300 | maximum load; primer: WLP; C.O.L.: 2.040" |
| Hornady Data rifle: S&W Model 500; barrel length: 8 3/8"; case: Hornady; use maximum loads with extreme caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Barnes XPB HP | 37.8 | 1933 | sugg. start load; 2.085" OAL; 37,700 psi |
| 275 | Barnes XPB HP | 42.0 | 2104 | max load; 2.085" OAL; 46,500 psi |
| 325 | Barnes XPB HP | 36.0 | 1790 | sugg. start load; 2.290" OAL; 37,600 psi |
| 325 | Barnes XPB HP | 40.0 | 1952 | max load; 2.290" OAL; 48,500 psi |
| 350 | Hornady Jacketed HP/XTP | 33.3 | 1688 | sugg. start load; 1.985" OAL; 39,500 psi |
| 350 | Hornady Jacketed HP/XTP | 37.0 | 1819 | max load; 1.985" OAL; 47,700 psi |
| 375 | Barnes XPB HP | 30.6 | 1598 | sugg. start load; 2.280" OAL; 38,500 psi |
| 375 | Barnes XPB HP | 34.0 | 1728 | max load; 2.280" OAL; 47,300 psi |
| 400 | Sierra Jacketed FP | 31.5 | 1578 | sugg. start load; 2.050" OAL; 39,300 psi |
| 400 | Sierra Jacketed FP | 35.0 | 1708 | max load; 2.050" OAL; 47,300 psi |
| 500 | Hornady Jacketed FP/XTP | 25.0 | 1300 | sugg. start load; 2.065" OAL; 37,100 psi |
| 500 | Hornady Jacketed FP/XTP | 27.7 | 1422 | max load; 2.065" OAL; 47,600 psi |
| 375 | Cast #501680 | 30.0 | 1544 | sugg. start load; 2.035" OAL; 29,300 psi |
| 375 | Cast #501680 | 33.2 | 1667 | max load; 2.035" OAL; 34,900 psi |
| Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.615"; primers: CCI #200; primer size: Large Rifle; Lyman shell holder: No. 17; cast bullets used sized to .501" dia.; firearm used: Universal Receiver; barrel length: 10"; twist: 1-18"; groove dia.: .500" | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Barnes XPB | 44.0 | 1,761 | primer: WLR |
| 275 | Barnes XPB | 45.5 | 1,854 | primer: WLR |
| Barnes X-Pistol Bullets A Smith & Wesson Model 500 with an 8 3/8-inch barrel used for test-firing loads. Starline cases used throughout. Temperature: 80 degrees Fahrenheit. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Hornady FTX | 40.1 | 1700 | |
| 300 | Hornady FTX | 43.1 | 1800 | |
| 300 | Hornady FTX | 46.0 | 1900 | |
| 300 | Hornady FTX | 47.5 | 1950 | |
| 300 | Hornady FTX | 49.0 | 2000 | maximum load |
| FTX Data rifle: S&W Model 500; barrel: Factory; length: 8 3/8"; primer: WLR; case: Hornady; C.O.L.: 2.195"; approach maximum loads with extreme caution | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 275 | Barnes XPB | 40.5 | 1977 | start load; COL: 2.085"; 41,100 psi |
| 275 | Barnes XPB | 44.0 | 2137 | max load; COL: 2.085"; 50,800 psi |
| 325 | Barnes XPB | 40.0 | 1862 | start load; COL: 2.290"; 43,700 psi |
| 325 | Barnes XPB | 44.5 | 2002 | max load; COL: 2.290"; 49,100 psi |
| 350 | Hornady XTP | 35.0 | 1697 | start load; COL: 1.985"; 41,500 psi |
| 350 | Hornady XTP | 42.0 | 1912 | max load; COL: 1.985"; 48,100 psi |
| 370 | Cast Performance Bullets LGC | 41.0 | 1831 | start load; COL: 2.020"; 44,900 psi |
| 370 | Cast Performance Bullets LGC | 44.5 | 1949 | max load; COL: 2.020"; 50,400 psi |
| 375 | Barnes XPB | 31.0 | 1605 | start load; COL: 2.290"; 39,700 psi |
| 375 | Barnes XPB | 34.0 | 1738 | max load; COL: 2.290"; 49,900 psi |
| 385 | Rem. HP | 38.0 | 1727 | start load; COL: 2.150"; 42,700 psi |
| 385 | Rem. HP | 41.0 | 1852 | max load; COL: 2.150"; 51,100 psi |
| 400 | Sierra JSP | 31.0 | 1520 | start load; COL: 2.050"; 38,500 psi |
| 400 | Sierra JSP | 37.0 | 1725 | max load; COL: 2.050"; 49,300 psi |
| 440 | Cast Performance Bullet LGC | 30.0 | 1483 | start load; COL: 2.025"; 40,200 psi |
| 440 | Cast Performance Bullet LGC | 35.0 | 1653 | max load; COL: 2.025"; 50,500 psi |
| 500 | Hornady SP | 27.0 | 1356 | start load; COL: 2.065"; 41,700 psi |
| 500 | Hornady SP | 30.0 | 1463 | max load; COL: 2.065"; 50,100 psi |
| Hodgdon Pistol Data case: Starline; twist: 1:18"; barrel: 10"; trim: 1.615"; primer: Winchester LR; dia: .500"; NEVER EXCEED MAXIMUM LOADS | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 370 | Cast Performance Bullet Co. GC | 30.0 | 1375 | 8 3/8" S&W M500 |
| 370 | Cast Performance Bullet Co. GC | 30.0 | 1405 | 10 1/2" BFR |
| 370 | Cast Performance Bullet Co. GC | 30.0 | 1605 | 12" Encore |
| 370 | Cast Performance Bullet Co. GC | 32.0 | 1432 | 8 3/8" S&W M500 |
| 370 | Cast Performance Bullet Co. GC | 32.0 | 1498 | 10 1/2" BFR |
| 370 | Cast Performance Bullet Co. GC | 32.0 | 1645 | 12" Encore |
| 370 | Cast Performance Bullet Co. GC | 34.0 | 1538 | 8 3/8" S&W M500 |
| 370 | Cast Performance Bullet Co. GC | 34.0 | 1589 | 10 1/2" BFR |
| 370 | Cast Performance Bullet Co. GC | 34.0 | 1693 | 12" Encore |
| 440 | Cast Performance Bullet Co. GC | 31.0 | 1445 | 8 3/8" S&W M500 |
| 440 | Cast Performance Bullet Co. GC | 31.0 | 1538 | 10 1/2" BFR |
| 440 | Cast Performance Bullet Co. GC | 31.0 | 1533 | 12" Encore |
| 440 | Cast Performance Bullet Co. GC | 33.0 | 1482 | 8 3/8" S&W M500 |
| 440 | Cast Performance Bullet Co. GC | 33.0 | 1575 | 10 1/2" BFR |
| 440 | Cast Performance Bullet Co. GC | 33.0 | 1588 | 12" Encore |
| 440 | Cast Performance Bullet Co. GC | 35.0 | 1561 | 8 3/8" S&W M500 |
| 440 | Cast Performance Bullet Co. GC | 35.0 | 1666 | 10 1/2" BFR |
| 440 | Cast Performance Bullet Co. GC | 35.0 | 1671 | 12" Encore |
| John Taffin Tests Tested in 8 3/8" S&W M500, 10 1/2" BFR and 12" Encore. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 370 | TrueShot WNFP-GC | 44.5 | 1663 | |
| Oregon Trail Cast Bullet Loads Smith & Wesson Model 500; 8 3/8-inch barrel; primer: Winchester Large Rifle; case: Starline R; overall loaded length (inches): 2.000; maximum case length: 1.625 inches; trim-to length: 1.615 inches. | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 350 | S&W UCSP | 45.0 | 1667 | start charge |
| 350 | S&W UCSP | 49.0 | 1739 | max charge |
| Speer Handgun Data Reloading Manual #14 max. case length: 1.625"; trim-to length: 1.615"; max cart. OAL: 2.250"; RCBS shell holder: #44; cart. case: Starline; primer: Federal 215 (Magnum); test firearm: Smith & Wesson X-Frame; barrel length: 8.875"; maximum loads should be used with CAUTION | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Hornady FTX | 40.1 | 1605 | |
| 300 | Hornady FTX | 43.1 | 1687 | |
| 300 | Hornady FTX | 46.0 | 1783 | |
| 300 | Hornady FTX | 47.5 | 1878 | |
| 300 | Hornady FTX | 49.0 | 1968 | maximum load |
| 350 | Hornady XTP Mag | 31.7 | 1383 | |
| 350 | Hornady XTP Mag | 34.0 | 1450 | |
| 350 | Hornady XTP Mag | 36.3 | 1528 | |
| 350 | Hornady XTP Mag | 37.5 | 1605 | |
| 350 | Hornady XTP Mag | 38.6 | 1677 | maximum load |
| 500 | Hornady FP-XTP | 17.6 | 742 | |
| 500 | Hornady FP-XTP | 21.3 | 897 | |
| 500 | Hornady FP-XTP | 25.0 | 1052 | |
| 500 | Hornady FP-XTP | 28.7 | 1206 | maximum load |
| Using Hornady Bullets & Winchester Large Pistol Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline; primer: Winchester Large Pistol for standard or magnum; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 GR FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
| 300 | Hornady FTX | 40.1 | 1620 | |
| 300 | Hornady FTX | 43.1 | 1699 | |
| 300 | Hornady FTX | 46.0 | 1810 | |
| 300 | Hornady FTX | 47.5 | 1865 | |
| 300 | Hornady FTX | 49.0 | 1998 | maximum load |
| 350 | Hornady XTP Mag | 31.7 | 1411 | |
| 350 | Hornady XTP Mag | 34.0 | 1473 | |
| 350 | Hornady XTP Mag | 36.3 | 1548 | |
| 350 | Hornady XTP Mag | 37.5 | 1649 | |
| 350 | Hornady XTP Mag | 38.6 | 1701 | maximum load |
| 500 | Hornady FP-XTP | 17.6 | 820 | |
| 500 | Hornady FP-XTP | 21.3 | 933 | |
| 500 | Hornady FP-XTP | 25.0 | 1122 | |
| 500 | Hornady FP-XTP | 28.7 | 1318 | maximum load |
| Using Hornady Bullets & Winchester Large Rifle Primer Gun: Smith & Wesson Model 500; barrel length: 8 3/8 inches; case: Starline "R"; primer: Winchester Large Rifle; bullet diameter: .500"; 300 GR FTX COAL: 2.195"; 350 GR XTP Mag COAL: 2.000"; 500 FP-XTP COAL: 2.080"; maximum COAL: 2.250"; maximum case length: 1.620"; trim to length: 1.615". | |||||
| Wt. | Bullet | Charge | Velocity (FPS) | Remarks | |
|---|---|---|---|---|---|
| 350 | Hornady XTP | 29.0 | 1,463 | starting load; COL: 1.740"; 34,500 PSI |
| 350 | Hornady XTP | 32.0 | 1,617 | maximum load; COL: 1.740"; 42,700 PSI |
| 370 | Cast Performance Bullet LGC | 29.0 | 1,460 | starting load; COL: 1.740"; 34,200 PSI |
| 370 | Cast Performance Bullet LGC | 31.0 | 1,528 | maximum load; COL: 1.740"; 37,100 PSI |
| 400 | Cast Performance Bullet LGC | 28.0 | 1,454 | starting load; COL: 1.750"; 38,600 PSI |
| 400 | Cast Performance Bullet LGC | 31.0 | 1,565 | maximum load; COL: 1.750"; 45,700 PSI |
| 420 | BLT MTN PB | 22.0 | 1,198 | starting load; COL: 1.765"; 34,300 PSI |
| 420 | BLT MTN PB | 25.5 | 1,372 | maximum load; COL: 1.765"; 45,900 PSI |
| 440 | Cast Performance Bullet LGC | 26.0 | 1,355 | starting load; COL: 1.740"; 38,100 PSI |
| 440 | Cast Performance Bullet LGC | 28.0 | 1,450 | maximum load; COL: 1.740"; 46,300 PSI |
| Hodgdon Pistol Data case: Freedom Arms; barrel length: 9"; twist: 1:20"; trim length: 1.360"; primer: Federal 210; bullet diam: .500"; NEVER EXCEED MAXIMUM LOADS | |||||
