Alliant Bullseye

Smokeless pistol powder
Billions of rounds have been loaded with Bullseye since it was introduced in 1913.
- Fast burning and consistent
- Economical and accurate
Principal Purpose: Handgun loads

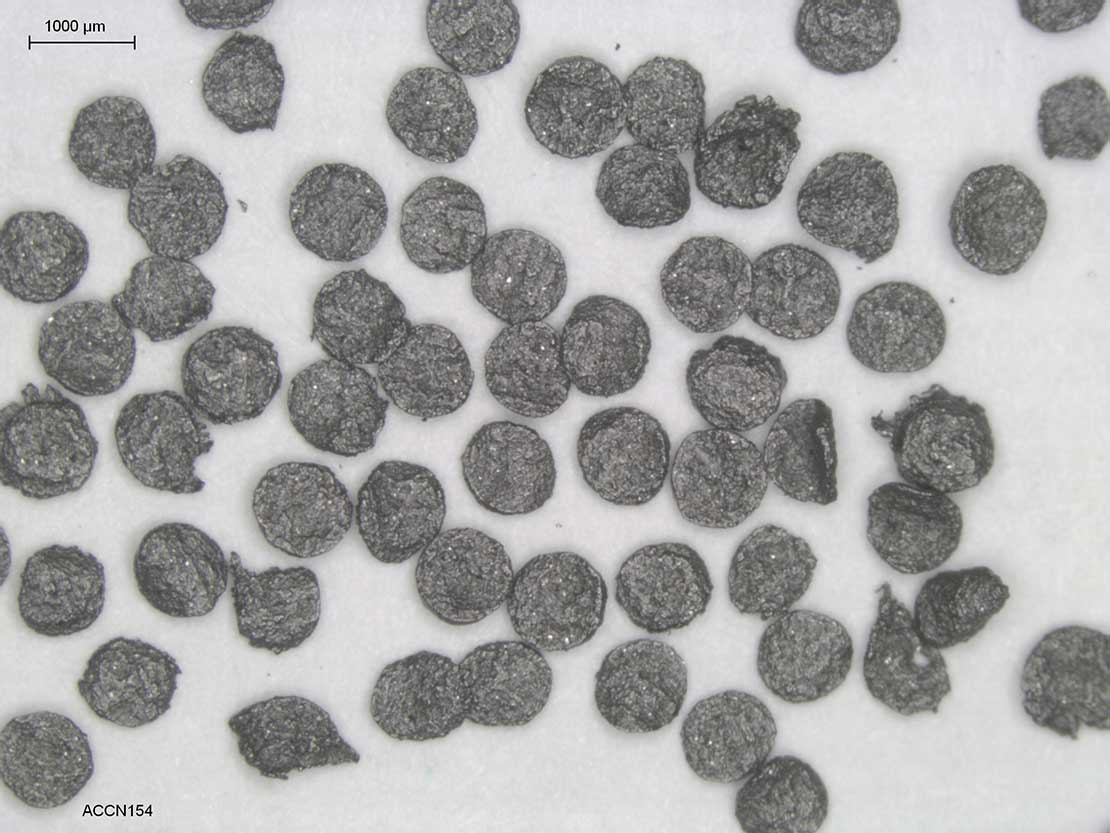

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
disk	Gray	No	0.8 mm	1.0 mm			Alliant Powder

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

.25 Automatic / .25 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Speer HP	1.7	1040
50	Speer TMJ RN	1.3	812
Alliant Reloaders Guide 2008 primer: CCI 500; case: Speer; OAL: .870"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
50		1.3	760	starting load; min OAL: 0.875
50		1.3	760	NEVER EXCEED; min OAL: 0.875; 15,000 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
51	Cast #252435	0.8	460	sugg. start load
51	Cast #252435	1.1	560	max load
Lyman Cast Bullet Handbook cases: Remington-Peters; trim-to length: .610"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: RCBS No. 29; cast bullets used size to .251" dia.; firearm used: Sterling .25 Auto; barrel length: 2"; twist: 1-16"; groove diameter: .251"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Speer Gold Dot HP	1.7	1,040	COAL tested: .870"; MAXIMUM load
50	Speer TMJ	1.3	812	COAL tested: .890"; MAXIMUM load
Speer Reloading Manual #14 case: SPEER; primer: CCI 500; test firearm: Beretta M950; barrel: 2.4"; use MAXIMUM loads with caution; DO NOT REDUCE
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Hornady HP-XTP	1.2	710
35	Hornady HP-XTP	1.3	735
35	Hornady HP-XTP	1.4	769
35	Hornady HP-XTP	1.5	796	maximum load
50	Hornady FMJ-RN	1.0	617	failed to cycle
50	Hornady FMJ-RN	1.1	687
50	Hornady FMJ-RN	1.2	757
50	Hornady FMJ-RN	1.3	755
50	Hornady FMJ-RN	1.4	806	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Browning/FN "Baby" Model; barrel length: 2 inches; case: Winchester; primer: Federal 100 Small Pistol; bullet diameter: .251"; 35 GR Hornady HP-XTP COAL: 0.860"; 50 GR Hornady FMJ-RN COAL: 0.900"; maximum COAL: .910"; maximum case length: .615"; trim to length: .605".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
35	Hornady Jacketed HP	1.3	751	sugg. start load; potentially most accurate load
35	Hornady Jacketed HP	1.5	863	max load
50	Hornady Jacketed FMJ	1.0	558	sugg. start load; 11,000 cup
50	Hornady Jacketed FMJ	1.4	754	max load; 17,300 cup; potentially most accurate load
Handgun Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .610"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 32; firearm used: Universal Receiver; barrel length: 2"; twist: 1-16"; groove dia.: .251"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
50	Winchester FMC	1.4	822	primer: CCI 500; average accuracy
all loads in Winchester brass, 50-grain Winchester FMC bullet; chronographed in 2 1/8-inch barrel Colt; velocities taken on Oehler M-10 Chronograph; 7 1/2 feet instrumental, converted to muzzle velocity; average temperature 65 degrees

.32 Auto / .32 ACP / 7.65mm

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
72	Cast lead	2.2	975
71	FMJ Remington	2.2	960
63	Cast lead HP	2.3	1,050
63	JSP	2.3	980
60	JHP	2.4	1,065
All loads must be considered maximum, and unattainable in some guns. Because of the innumerable differences in design and standards of workmanship exhibited by guns chambered for the .32 ACP, combined with the extreme sensitivity to charge variations typical of all extra-small capacity cases, handloading must be approached with additional care. Because these unlocked breech actions depend upon the mass of the slide and strength of the mainspring (which may have weakened due to age or use) starting loads should be below the threshold of reliable functioning, and should be increased in small increments until reliable functioning is obtained, provided the gun will function properly with factory loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Hornady HP-XTP	2.4	803
60	Hornady HP-XTP	2.5	833
60	Hornady HP-XTP	2.6	856	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Kel Tec P-32; barrel length: 2.5 inches; case: Remington; primer: Winchester Small Pistol; bullet diameter: .311 to .312 inch (.311 used herein); COAL: .925 inch; maximum COAL: .984 inch; maximum case length: .680 inch; trim to length: .670 inch; NOTE: All loads functioned (extracted, ejected and fed) reliably in two pistols: a Kel Tec P-32 and a Walther PP.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Speer GDHP	2.6	1030
Alliant Reloaders Guide 2008 primer: CCI 500; case: Speer; OAL: .940"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Jacketed	2.2	835	start load; OAL: 0.984
71	Jacketed	2.2	835	never exceed; OAL: 0.984; 12,500 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Hornady Jacketed HP	2.0	714	sugg. start load; .925" OAL
60	Hornady Jacketed HP	2.3	837	max load; .925" OAL
71	Sierra FMJ	1.5	603	sugg. start load; .984" OAL
71	Sierra FMJ	2.2	825	max load; potentially most accurate load; .984" OAL
75	Cast #311252	1.5	685	sugg. start load; .975" OAL
75	Cast #311252	2.0	830	max load; .975" OAL
85	Cast #313249	1.5	660	sugg. start load; .984" OAL
85	Cast #313249	1.9	795	max load; .984" OAL
Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .672"; primers: Remington 1 1/2 (except where otherwise specified in remarks); primer size Small Pistol; Lyman shell holder: No. 23; cast bullets used sized to .309 dia.; firearm used: Mauser HSc and Universal Receiver; barrel length: Mauser; 3", Universal Receiver; 3 1/4"; twist: 1-16"; groove dia.: .309"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
60	Speer GDHP	2.6	1030	maximum charge
Speer Reloading Manual #14 max. case length: 0.680"; trim-to length: 0.675"; max cart. OAL: 0.984"; RCBS shell holder: #17; cart. case: Speer; primer: CCI 500; test firearm: Walter PP; barrel length: 3.80" maximum loads should be used with CAUTION; DO NOT REDUCE
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
75	Lyman 313249 cast roundnose (sized .310 inch)	2.0	918	poor group, vertical
76	Oregon Trail cast roundnose (sized .313 inch)	2.0	903	good, best group with this pistol
Browning Automatic Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. The .32 Auto/.32 ACP/7.65mm Browning Auto loads were fired from a Browning Model 1922 with a 4 1/2-inch barrel and used Winchester brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Hornady FMJ	2.0	666	accuracy class: D; case expansion: light; Unreliable function
71	Hornady FMJ	2.3	840	accuracy class: C; case expansion: normal
71	Sierra FMJ	2.4	889	accuracy class: A; case expansion: maximum; Tied for 5th place accuracy
in a Mauser 1914 Warning! Test pistol was Mauser Model 1914 with 3 1/2" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Hornady FMJ	2.2	784	accuracy class: C; case expansion: moderate
71	Hornady FMJ	2.3	858	accuracy class: C; case expansion: normal
71	Hornady FMJ	2.4	931	accuracy class: B; case expansion: maximum
71	Sierra FMJ	2.3	864	accuracy class: C; case expansion: near max
71	Sierra FMJ	2.4	909	accuracy class: A; case expansion: maximum; Tied for 5th place accuracy
100	Rem. Lead	2.1	732	accuracy class: D; case expansion: near max; Unacceptable accuracy
in a Walther Warning! Test pistol was a Walther Model "PP" with 3 3/4" barrel. CCI 500 small pistol primers used with all loads shown. Those loads shown as giving unreliable function or poor accuracy have been included to show velocities and provide an indication of those areas of loading which should not be attempted. Accuracy class (for five shots at 20 yards): A. 1 1/2 inch or less; B. 1 1/2 to 2 1/4 inches; C. 2 1/4 to 3 inches; D. over 3 inches. Plus-sign added indicates the top of that class.

.32 H&R Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	JHP	3.4	1,020	min. OAL (inches): 1.32; bbl length: 5; psi x1000: 18.7
90	LWC	3.3	1,060	min. OAL (inches): 1.18; bbl length: 5; psi x1000: 19.6
90	LWC (target)	2.2	800	min. OAL (inches): 1.1; bbl length 5; psi x1000: 9.5
98	LRN	3.4	1,020	min. OAL (inches): 1.32; bbl length: 5; psi x1000: 19.5
Alliant Pistol/Revolver Data Primer: Fed. 100. Power charge weights listed are maximum. Maximum powder charge should be reduced by 10% to establish a minimum or starting charge.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Speer JHP	3.9	1162	OAL: 1.340"
100	Speer JHP	3.6	1000	OAL: 1.345"
98	HBWC	2.3	810	OAL: 1.075
Alliant Reloaders Guide 2008 primer: CCI 500; case: Federal; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Jacketed	3.1	1001	start load; OAL: 1.320
85	Jacketed	3.4	1020	never exceed; OAL: 1.320; 18,700 psi
90	Wad Cutter	3.1	1000	start load; OAL: 1.180
90	Wad Cutter	3.3	1060	never exceed; OAL: 1.180; 19,600 psi
98	Lead	3.2	972	start load; OAL: 1.320
98	Lead	3.4	1020	never exceed; OAL: 1.320; 19,500 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
71	Sierra FMJ	3.8	1098	sugg. start load; 15,500 cup; 1.350" OAL
71	Sierra FMJ	4.3	1269	max load; 20,100 cup; 1.350" OAL
85	Hornady Jacketed HP/XTP	3.3	914	sugg. start load; 16,800 cup; 1.310" OAL
85	Hornady Jacketed HP/XTP	3.7	1043	max load; 19,800 cup; 1.310" OAL
90	Sierra Jacketed JHC	3.1	844	sugg. start load; 16,700 cup; 1.315" OAL
90	Sierra Jacketed JHC	3.5	1008	max load; 20,300 cup; 1.315" OAL
100	Hornady Jacketed HP/XTP	2.9	717	sugg. start load; 15,400 cup; 1.315" OAL
100	Hornady Jacketed HP/XTP	3.3	838	max load; 19,500 cup; 1.315" OAL
75	Cast #311252	3.0	1064	sugg. start load; 14,900 cup; 1.350" OAL
75	Cast #311252	3.8	1168	max load; 19,300 cup; 1.350" OAL
85	Cast #313249	2.5	803	sugg. start load; 12,400 cup; 1.350" OAL
85	Cast #313249	4.0	1115	max load; 20,900 cup; 1.350" OAL
90	Hornady Swaged Lead HBWC	2.9	957	sugg. start load; 17,500 cup; 1.100" OAL
90	Hornady Swaged Lead HBWC	3.3	1032	max load; 20,300 cup; 1.100" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.065"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .313" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Speer JHP	3.5	1,088	starting charge; COAL tested: 1.340"
85	Speer JHP	3.9	1,162	MAXIMUM charge; COAL tested: 1.340"
98	Speer HB-WC	2.1	752	starting charge; COAL tested: 1.075"
98	Speer HB-WC	2.3	810	MAXIMUM charge; COAL tested: 1.075"
100	Speer JHP	3.1	899	starting charge; COAL tested: 1.345"
100	Speer JHP	3.6	1,000	MAXIMUM charge; COAL tested: 1.345"
Speer Reloading Manual #14 max. case length: 1.075"; trim-to length: 1.065"; max cart. OAL: 1.350"; RCBS shell holder: #23; cart. case: Federal; primer: CCI 500; test firearm: Ruger Single Six; barrel length: 5.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	2.8	775
90	Sierra JHC	3.0	841
90	Sierra JHC	3.2	907
90	Sierra JHC	3.4	972
using Sierra bullets Warning! These loads were shot by Brian Pearce of Wolfe Publishing Co. Gun: Ruger Single-Six Custom; Barrel Length: 6 1/2 inches; Case: Starline; Primer: Winchester Small Pistol; Bullet Diameter: .312 inch; COAL: 1.350 inches; Maximum COAL: 1.350 inches; Maximum Case Length: 1.075 inches; Trim to Length: 1.070 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady SWC (swaged alloy)	3.5	850	case expansion: maximum; highest velocity
85	Hornady JHP	3.5	761	case expansion: maximum; accurate
in a 3 Inch Barrel H&R Model 504. Federal cases and Federal 100 primers used in all loads. All loads chronographed 10 feet from the muzzle with an Oehler Model 33 chronotach. Overall cartridge length refers to seating for Ruger; all loads for H&R had 1.33-inch OAL.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady SWC (swaged alloy)	3.0	922	case expansion: normal; accuracy class (Ruger): A; accurate; good target load
90	Hornady SWC (swaged alloy)	3.5	1,019	case expansion: maximum; accuracy class (Ruger): B
116	Lyman 3118 (cast alloy)	3.0	862	case expansion: near max; accuracy class (Ruger): A; accurate
85	Hornady JHP	3.5	1,003	case expansion: maximum; accuracy class (Ruger): A; accurate
in a 6 1/2 Inch Barrel Ruger Bisley. Federal cases and Federal 100 primers used in all loads. All loads chronographed 10 feet from the muzzle with an Oehler Model 33 chronotach. Overall cartridge length refers to seating for Ruger; all loads for H&R had 1.33-inch OAL. Accuracy rating schedule: A+ = under 1-inch (at 20 yards); A = 1 to 1 1/4 inches; B = 1 1/4 + to 1 1/2 inches; C = 1 1/2 + to 2 inches; D = over 2 inches
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HBWC	2.2	822
90	Hornady HBWC	2.4	869
90	Hornady HBWC	2.6	926
90	Hornady HBWC	2.8	981
90	Hornady HBWC	3.1	1034	maximum load
90	Hornady SWC	2.2	768
90	Hornady SWC	2.4	820
90	Hornady SWC	2.6	881
90	Hornady SWC	2.8	942
90	Hornady SWC	3.1	998	maximum load
Using Hornady Bullets These loads were shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger Single Six; barrel length: 6 1/2 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .312"; 85 GR Hornady HP XTP & 90 GR SWC COAL: 1.350"; 90 GR HBWC COAL: 1.100"; 100 GR HP XTP COAL: 1.315"; maximum COAL: 1.350"; maximum case length: 1.075"; trim to length: 1.065".

.32 Long Colt / .32 Short Colt

Wt.	Charge	Velocity (FPS)
80	1.8	732
80	2.0	750
95	1.8	700
Historical Notes: Introduced by Colt in 1875 along with the New Line model revolvers. This was originally a blackpowder cartridge and used a 90-grain outside-lubricated bullet. There is also a 32 Short Colt which is identical except for case length (.650-inch long). The 32 Short and Long Colt cartridges are actually obsolete, having been displaced by the 32 S&W Short and Long. Colt is about the only company that used this cartridge to any extent in the United States. It was more popular in Europe, where a number of blackpowder 320 revolvers were made. General Comments: The 32 Colt cartridge was originally of the outside-lubricated type and used a bullet of .313-inch diameter. Later this was changed to an inside-lubricated type which necessitated a bullet of .299-inch diameter so the lubricating grooves would fit inside the case. The bullet weight was reduced from 90 to 80 or 82 grains in the inside-lubricated type and this also shortened the overall length a little. In power and usefulness, the Colt cartridges are about the same as the 32 S&W Short and Long, but not nearly as accurate. (Cartridges of the World 6th Edition)

.32 Smith & Wesson / .32 S&W

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
77	Cast #311252	1.1	478	sugg. start load
77	Cast #311252	1.5	578	max load
84	Cast #313249	1.0	468	sugg. start load
84	Cast #313249	1.4	578	max load
Cast Bullet Handbook cases: Remington; Norma; trim-to length: .600"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used size to .310" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 313249	1.3	456	bullet: sized .311 inch; OAL: .940 inch; case expansion: normal
for Class I Guns Principal test gun, S&W Model 31 Regulation Police with 3-inch barrel. Winchester-Western cases used in all loads. CCI 500 Small Pistol primers used in all loads. Oehler Model 35P Chronograph recorded velocities at 8 feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 313249	1.7	573	bullet: sized .311 inch; OAL: .940 inch; case expansion: normal
90	Hornady	1.4	480	bullet: .314 inch; OAL: .975 inch; case expansion: normal
for Class II Guns Principal test gun, S&W Model 31 Regulation Police with 3-inch barrel. Winchester-Western cases used in all loads. CCI 500 Small Pistol primers used in all loads. Oehler Model 35P Chronograph recorded velocities at 8 feet.

.32 Smith & Wesson Long / .32 S&W Long

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
89	Lead	1.5	695
89	Lead	2.0	745
89	Lead	2.5	880
89	Lead	3.0	1,010	(Max.)
98	Lead	2.0	770
98	Lead	2.7	910
Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	HBWC	1.8	777
Alliant Pistol/Revolver Data 2011 primer: CCI 500; case: Remington; OAL: .920"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	RCBS mould #82303	2.3	794	OAL: 1.190"
98	RCBS mould #82061	2.3	770	OAL: 1.280"
Alliant Reloaders Guide 2008 primer: CCI 500; case: Remington; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Cowboy Action Handgun Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
91	Lyman 313249	2.4	786	Case: Remington
in a 2-inch barrel Warning! Test gun for 2 inch barrel loads was a S&W Model 30 Hand Ejector. All cartridges (handloaded) in both two and six-inch barrel test guns primed with CCI 500 Small Pistol primers. All handloading performed with Lyman No. 310 tong tool. 91-grain Lyman No. 313249 bullets were sized .3125 inch. 112-grain Lyman 3118 bullets were sized .3130 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
91	Lyman 313249	2.2	814	Case: Remington
91	Lyman 313249	2.4	920	Case: Norma, Fair accuracy.
91	Lyman 313249	2.3	799	Case: Norma, Note velocity loss due to long seating.
112	Lyman 3118	2.0	724	Case: R-P
in a 6-inch barrel Test gun for all loads was a Colt Officer's Model Heavy Barrel six inch length.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
98	Lead	1.8	700	start load; OAL: 1.265
98	Lead	1.8	700	never exceed; OAL: 1.265; 10,100 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
93	Cast #313226	1.5	518	sugg. start load
93	Cast #313226	2.9	898	max load
115	Cast #3118	1.4	528	sugg. start load
115	Cast #3118	2.0	683	max load
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .915"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used size to .312" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .312"; NOTE: More Lyman cast bullet data available under .32 Smith & Wesson Long / .32 S&W Long Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady Jacketed HP	2.1	654	sugg. start load; 1.160" OAL
85	Hornady Jacketed HP	2.4	815	max load; 1.160" OAL
100	Hornady Jacketed HP	2.0	600	sugg. start load; 1.160" OAL
100	Hornady Jacketed HP	2.3	718	max load; 1.160" OAL; potentially most accurate load
75	Cast #311252	1.5	513	sugg. start load; 1.115" OAL; potentially most accurate load
75	Cast #311252	3.0	958	max load; 1.115" OAL
85	Cast #313249	2.3	786	sugg. start load; 1.210" OAL; potentially most accurate load
85	Cast #313249	2.7	904	max load; 1.210" OAL
90	Hornady Swaged Lead HBWC	1.8	653	sugg. start load; .920" OAL
90	Hornady Swaged Lead HBWC	2.0	704	max load; .920" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .910"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 9; cast bullets used sized to .312" dia.; firearm used: Smith & Wesson Model 31; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .312"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer CM	1.9	672	start charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
90	Speer CM	2.3	794	max charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
98	Speer SWC	2.1	705	start charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
98	Speer SWC	2.3	770	max charge; bullets cast in RCBS moulds; test firearm: S&W M31 3"
98	Speer HBWC	1.6	674	start charge; test firearm: Walther GSP 4"
98	Speer HBWC	1.8	777	max charge; test firearm: Walther GSP 4"
60	Speer GDHP	2.4	836	start charge; test firearm: S&W M31 3"
60	Speer GDHP	3.0	1003	max charge; test firearm: S&W M31 3"
Speer Reloading Manual #14 This reloading data is for the 32 S&W Long and 32 Colt New Police cartridges only. max. case length: 0.920"; trim-to length: 0.910"; max cart. OAL: 1.280"; RCBS shell holder: #23; cart. case: Remington; primer: CCI 500; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
85	Hornady HP-XTP	1.7	578
85	Hornady HP-XTP	1.9	642
85	Hornady HP-XTP	2.1	706	maximum load
90	Hornady HBWC	1.6	676
90	Hornady HBWC	1.7	726
90	Hornady HBWC	1.9	776
90	Hornady HBWC	2.0	825	maximum load
90	Hornady SWC	1.6	641
90	Hornady SWC	1.7	677
90	Hornady SWC	1.9	713
90	Hornady SWC	2.0	749	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger Single-Six; barrel length: 6 1/2-inch (Custom PAC-NOR); case: Starline; primer: Winchester Small Pistol; bullet diameter: .312"; 85 GR HP-XTP COAL: 1.160"; 90 GR HBWC COAL: .920"; 90 GR SWC COAL: 1.185"; maximum COAL: 1.280"; maximum case length: .920"; trim to length: .910".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast	3.1	1,010	4 inch barrel
98	Cast	2.7	910	4 inch barrel
98	Cast	1.5	635	4 inch barrel
98	Cast	2.0	770	4 inch barrel
90	Cast	3.1	850	2 inch barrel
98	Cast	2.7	830	2 inch barrel
90	Cast	3.1	1,100	6 inch barrel
Load Data

.327 Federal Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
78	Oregon Trail cast roundnose	4.0	1055	primer: CCI 500; case: Federal; OAL (inches): 1.4570
83	Lyman 313249 (Linotype)	4.5	1132	primer: CCI 500; case: Federal; OAL (inches): 1.4570
83	Lyman 313249 (Linotype)	5.0	1238	primer: CCI 500; case: Federal; OAL (inches): 1.4570
Firearm used was a Ruger SP101 with a 3 1/16-inch barrel. Federal Cartridge and Speer cases used as noted. Maximum case length: 1.200 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
78	Oregon Trail cast roundnose	4.0	1055	primer: CCI 500; case: Federal; overall loaded length (inches): 1.4570
Firearms used for testing these loads was a Ruger SP101 with a 3 1/16-inch barrel. Federal and Speer cases and CCI 500 and CCI 550 primers were used throughout. Case length: 1.200 inches; throat: .313 inch; barrel cylinder gap: .006 inch; groove diameter: .3123 inch.

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	lead round nose	5.3	1,085	primer: Fed. 200; min. OAL (inches): 1.575; bbl length: 5.6; psi: 33,900
Alliant Pistol and Revolver Data Do not exceed powder weight shown.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC	4.8	939	OAL: 1.570"
110	Speer UCHP	8.7	1403	OAL: 1.575"
Alliant Reloaders Guide - Pistol/Revolver primer: CCI 500; case: Speer; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC or LSWC HP	4.3	848	start charge; does not reach maximum pressure
158	Speer LSWC or LSWC HP	4.8	939	maximum charge; does not reach maximum pressure
110	Speer UCHP	7.8	1246	start charge
110	Speer UCHP	8.7	1403	maximum charge
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Jacketed	8.7	1642	start load; min OAL: 1.560
110	Jacketed	9.0	1690	never exceed; min OAL: 1.560; 31,700 psi
125	Jacketed	7.9	1464	start load; min OAL: 1.570
125	Jacketed	8.4	1550	never exceed; min OAL: 1.570; 32,800 psi
148	Wadcutter	5.2	1354	start load; min OAL: 1.330
148	Wadcutter	5.7	1475	never exceed; min OAL: 1.330; 34,000 psi
148	Wadcutter	2.8	780	start load; min OAL: 1.330
148	Wadcutter	2.8	780	never exceed; min OAL: 1.330; 10,000 psi
158	Jacketed	6.3	1169	start load; min OAL: 1.580
158	Jacketed	6.8	1250	never exceed; min OAL: 1.580; 33,100 psi
158	Lead	5.9	1211	start load; min OAL: 1.580
158	Lead	6.5	1320	never exceed; min OAL: 1.580; 33,900 psi
170	Jacketed	5.6	1078	start load; min OAL: 1.585
170	Jacketed	6.2	1175	never exceed; min OAL: 1.585; 33,900 psi
180	Jacketed	5.7	1042	start load; min OAL: 1.580
180	Jacketed	6.3	1135	never exceed; min OAL: 1.580; 34,000 psi
200	Lead	4.8	995	start load; min OAL: 1.575
200	Lead	5.3	1085	never exceed; min OAL: 1.575; 33,900 psi
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	RCBS 38-158 RN	3.0	678	case: R-P .38 Special; primer: CCI 500; 50-yard group: 1.5 inches
148	Speer HBWC	2.7	767	case: W-W Match; primer: CCI 500; 25-yard group: 8 inches
10-inch Contender Barrel All loads crimped in crimping groove or cannelure provided. All data the result of a single representative 10-round group, fired from a sandbag rest. Velocities were measured 10 feet from the muzzle with an Oehler Model 33 chronograph. All cases .357 unless otherwise noted. Update: Alliant Powder Company does not recommend Blue Dot in the .357 magnum using 125-grain bullets. Recipes for heavier bullet weights are acceptable. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all 125-grain Blue Dot data from .357 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	7.5	1365	sugg. start load; 25,900 cup
92	Cast #358242	9.5	1630	max load; 39,900 cup
Lyman Cast Bullet Handbook cases: Federal; trim-to length: 1.285"; primers: CCI 550; primer size: Small Pistol Magnum; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	7.0	1030	sugg. start load; 20,500 cup; 1.590" OAL
110	Speer Jacketed HP	9.7	1471	max load; 40,300 cup; 1.590" OAL
125	Hornady Jacketed HP	6.5	864	sugg. start load; 21,000 cup; 1.590" OAL
125	Hornady Jacketed HP	8.6	1315	max load; 38,400 cup; 1.590" OAL
140	Speer Jacketed HP	5.7	705	sugg. start load; 20,300 cup; 1.590" OAL
140	Speer Jacketed HP	8.0	1116	max load; 39,200 cup; 1.590" OAL
146	Speer Jacketed HP	5.7	759	sugg. start load; 23,300 cup; 1.590" OAL
146	Speer Jacketed HP	7.5	1077	max load; 39,900 cup; 1.590" OAL
Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	7.5	1365	sugg. start load; 1.585" OAL; 25,900 cup
90	Cast #356242	9.5	1630	max load; 1.585" OAL; 39,900 cup
120	Cast #356242	5.7	1045	sugg. start load; 1.585" OAL; 16,500 cup
120	Cast #356242	8.0	1320	max load; 1.585" OAL; 35,800 cup
120	Cast #356402	6.5	994	sugg. start load; 1.590" OAL; 18,800 cup; potentially most accurate load
120	Cast #356402	8.3	1390	max load; 1.590" OAL; 37,600 cup
150	Cast #358477	4.6	772	sugg. start load; 1.510" OAL; 17,300 cup
150	Cast #358477	7.0	1114	max load; 1.510" OAL; 36,900 cup
155	Cast #358156 gas check	4.8	828	sugg. start load; 1.590" OAL; 18,000 cup
155	Cast #358156 gas check	7.0	1122	max load; 1.590" OAL; 39,400 cup
160	Cast #358311	4.9	821	sugg. start load; 1.590" OAL; 17,500 cup
160	Cast #358311	6.9	1119	max load; 1.590" OAL; 41,100 cup
170	Cast #358429	4.1	813	sugg. start load; 1.553" OAL; 16,500 cup
170	Cast #358429	6.1	976	max load; 1.553" OAL; 39,300 cup
Cast Bullet Data Lyman Reloading Manual 49th Edition cases: Federal; trim-to length: 1.280"; primers: CCI 550"; primer size: Small Pistol, Magnum; Lyman shell holder: No. 1; cast bullets used sized to .357" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .356"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady XTP-HP	6.9	1302	sensitive to lot number variance
in a Marlin 1894CB Warning! Barrel Length: 20 inches; Case: Starline; Primer: CCI 500; Maximum Overall Loaded Length: 1.590 inches; Maximum Case Length: 1.290 inches; Trim-to Length: 1.280 inches; COAL: 1.580 inches. All loads have been pressure tested between 32,500 and 35,000 psi and are considered maximum. This table illustrates how faster-burning powders do not produce maximum velocities.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady XTP-HP	6.9	1088
in a Ruger GP100 Warning! Barrel Length: 4 inches; Cases: Starline; Primer: CCI 500; Maximum Overall Loaded Length: 1.590 inches; Maximum Case Length: 1.290 inches; Trim-to Length: 1.280 inches; COAL: 1.580 inches. All loads have been pressure tested between 32,500 and 35,000 psi and are considered maximum. This table illustrates how faster-burning powders do not produce maximum velocities.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Round Nose Flat Point	3.3	751	maximum load; minimum OAL: 1.570
180	Flat Point	3.6	777	maximum load; minimum OAL: 1.580
Oregon Trail Handgun/Cowboy Loads test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Round Nose Flat Point/Semi Wad Cutter/Round Nose	3.3	751	starting load; minimum OAL: 1.570
158	Round Nose Flat Point/Semi Wad Cutter/Round Nose	3.8	813	maximum load; minimum OAL: 1.570
Oregon Trail Handgun/Standard Loads test gun: Smith & Wesson M-686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	7.8		MAXIMUM
158	Hornady JHP	7.9		pressure signs
158	Hornady JHP	8.0	pressure signs
158	Hornady JFP	7.8		MAXIMUM
158	Hornady JFP	7.9	pressure signs
Snub-gun Loads 2 1/2-inch S&W Model 19; approach all maximum loads with caution; all loads used CCI 550 primers; no velocities provided in this table except where noted from "Speer Reloading Manual #8"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146	Lyman #358477	3.2	775
Specialty Loads All velocities taken at 5 1/2 feet with Oehler Model 20 Digital Chronograph and Oehler Model 50 Photoelectric Screens. Velocities corrected to muzzle. Loads tested in Ruger Blackhawk revolver serial No. 10150 with 4 5/8 inch barrel. All were safe in this revolver.

.357 Maximum

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	158	Speer SWC	5.0	963	primer: CCI 450
	10-Inch Barrel Muzzle velocities taken at 10 feet, not corrected to muzzle. All data the result of a single, representative 10-shot group unless otherwise noted.

.357 SIG

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	7.0	1463	start load; min OAL: 1.090
90	Jacketed	7.5	1564	never exceed; min OAL: 1.090; 37,900 psi
115	Jacketed	6.1	1263	start load; min OAL: 1.140
115	Jacketed	6.5	1337	never exceed; min OAL: 1.140; 37,600 psi
124	Jacketed	6.7	1264	start load; min OAL: 1.120
124	Jacketed	7.0	1325	never exceed; min OAL: 1.120; 37,000 psi
125	Jacketed	5.8	1186	start load; min OAL: 1.140
125	Jacketed	6.1	1244	never exceed; min OAL: 1.140; 37,000 psi
147	Barnes X	5.1	1078	start load; min OAL: 1.138
147	Barnes X	5.1	1078	never exceed; min OAL: 1.138; 35,300 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	5.8	1308
90	Hornady HP-XTP	6.1	1346
90	Hornady HP-XTP	6.4	1392
90	Hornady HP-XTP	6.7	1437
90	Hornady HP-XTP	7.0	1483
90	Hornady HP-XTP	7.3	1521	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company.Gun: Glock Model 31; barrel length: 4.48 inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.140"; maximum COAL: 1.140"; maximum case length: .865"; trim to length: .860".

.38 Automatic / .38 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Round Nose	4.3	1,050
Oregon Trail Handgun Data test gun: Caspian 1911, 5" Bar-Sto, WSP; OAL: 1.250; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP XTP	4.5	1161
110	Hornady HP XTP	4.8	1210
110	Hornady HP XTP	5.1	1274
110	Hornady HP XTP	5.4	1323	maximum load
115	Hornady FMJ RN or HP XTP	4.2	1044
115	Hornady FMJ RN or HP XTP	4.4	1090
115	Hornady FMJ RN or HP XTP	4.7	1151
115	Hornady FMJ RN or HP XTP	5.0	1198	maximum load
125	Hornady FP XTP, HP XTP or HAP	4.1	986
125	Hornady FP XTP, HP XTP or HAP	4.4	1033
125	Hornady FP XTP, HP XTP or HAP	4.7	1079	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Colt Model 1902; barrel length: 6 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; 110 Hornady HP XTP COAL: 1.100", 115 Hornady FMJ RN & HP XTP COAL: 1.115", 125 Hornady FP XTP & HP XTP COAL: 1.060"; 125 GR Hornady HAP COAL: 1.120".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
130	Jacketed	4.0	935	start load; min OAL: 1.260
130	Jacketed	4.0	935	never exceed; min OAL: 1.260; 18,100 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.

.38 Colt Super Automatic

Wt.	Bullet	Charge	Velocity (FPS)
107	lead	5.7	1,360
125	#358482	4.7	1,145
Super Automatic

.38 Long Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	hollowbase Rapine 358.145HB	3.0	605	Model 1877DA 4 1/2-inch barrel; extreme spread: 62; low velocity but accurate
154	Lyman 358430 roundnose	3.0	620	Colt Single Action Army .38 Special 5 1/2-inch barrel (circa 1950); extreme spread: 42; very mild
150	hollowbase Rapine 358.145HB	3.0	665	Colt Single Action Army .38 Special 5 1/2-inch barrel (circa 1950); extreme spread: 48; duplicates modern factory load
150	Rapine 358.145HB	3.0	667	Colt Model 1861 (R&D conversion) 7 1/2-inch barrel; extreme spread: 26; accurate and duplicates modern factory loads
All bullets except Rapine 358.145HB cast of 1/20 tin to lead alloy. All bullets lubed with SPG. Lyman 358430 and Rapine 358.145HB sized to .358 inch. All loads put into Starline brass. All blackpowder and Pyrodex loads used CCI 550 Small Pistol Magnum primers. All smokeless loads used CCI 500 Small Pistol standard primers. All blackpowder or Pyrodex charges put into cases through a 24-inch drop tube.

.38 S&W / .38 Smith & Wesson

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Round Nose Flat Point (.358)	2.0	591	maximum load
Oregon Trail Handgun Data test gun: H&R 3 1/2", WSP; OAL: 1.080; do not exceed maximum loads; never reduce stated overall lengths; load exactly as stated; do not exceed these loads for top-break revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer GDHP SB	3.0	894	start charge
110	Speer GDHP SB	3.2	935	maximum charge
125	Speer UCSP or USHP	2.8	742	start charge
125	Speer UCSP or USHP	3.0	789	maximum charge
158	Speer LSWC, LSWC HP or LRN	2.2	629	start charge
158	Speer LSWC, LSWC HP or LRN	2.4	693	maximum charge
Speer Reloading Manual #14 max. case length: 0.775"; trim-to length: 0.765"; max cart. OAL: 1.240"; RCBS shell holder: #6; cart. case: Winchester; primer: CCI 500; test firearm: S&W Model 33; barrel length: 4"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #358477	2.1	661	sugg. start load; OAL: 1.070"; 10,200 cup
150	Cast #358477	2.4	723	max load; OAL: 1.070"; 12,700 cup
160	Cast #358311	2.0	650	sugg. start load; OAL: 1.150"; 10,000 cup
160	Cast #358311	2.3	696	max load; OAL: 1.150"; 11,500 cup
195	Cast #358430	1.4	451	sugg. start load; OAL: 1.175"; 7,200 cup
195	Cast #358430	1.6	536	max load; OAL: 1.175"; 10,500 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .765"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used sized to .359" dia.; firearm used: Universal Receiver; barrel length: 5 1/2"; twist: 1-14"; groove dia.: .358"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	2.4	718	sugg. start load; Special Pressure Test Barrel; 6,500 cup
92	Cast #358242	3.4	965	max load; Special Pressure Test Barrel; 12,800 cup
121	Cast #358242	2.0	560	sugg. start load
121	Cast #358242	3.0	805	max load
133	Cast #358480	2.0	595	sugg. start load
133	Cast #358480	2.9	820	max load
141	Cast #358495	1.6	510	sugg. start load
141	Cast #358495	2.4	720	max load
158	Cast #358311	1.8	545	sugg. start load
158	Cast #358311	2.6	730	max load
Lyman Cast Bullet Handbook cases: Winchester; trim-to length: .765"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 21; cast bullets used size to .360" dia.; firearm used: Special Pressure test barrel; Smith & Wesson Model 33; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .361"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Magma 38-158 RNFP	2.4	723	group: 2 1/2 inches
Colt Police Positive Test gun was a Colt Police Positive with a 4-inch barrel. These loads duplicate the standard factory load with a 150-grain bullet at 695 fps.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
146		2.5	700
158		2.2	640
195		2.0	610
Commercial/Military Loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
164	RCBS 38-158-CM RN/FP	2.0	619	bullet impacts low with all charges
164	RCBS 38-158-CM RN/FP	2.2	636
200	Lyman 358430 RN	1.6	582	bullet can duplicate British military ballistics with proper charges
200	Lyman 358430 RN	1.8	612
Enfield No. 2 with 4-Inch Barrel All chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All handloads used Starline brass and Winchester Small Pistol primers. All bullets cast of 1-20 (tin-to-lead) alloy, sized to .359 inch and lubed with SPG.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady swaged SWC (lead)	2.6	744	case: P; OAL: 1.18; case expansion: normal; second most accurate load tested
163	Hensley 47358 (lead)	2.4	775	case: R-P; OAL: 1.07; case expansion: normal; accurate load
200	Markell cast (lead)	2.0	610	case: R-P; OAL: 1.19; case expansion: moderate; duplicates British service load
148	Lyman 358495 (lead)	2.0	677	case: R-P; OAL: 1.00; case expansion: normal; accurate load
148	Lyman 358495 (lead)	2.4	748	case: P; OAL: 1.00; case expansion: near max.; fine target load; tied for third place
125	Sierra JHP (jacketed)	3.0	838	case: P; OAL: 1.06; case expansion: maximum; accurate but erratic pressure indications; do NOT exceed
158	Hornady swaged RN (lead)	2.5	717	case: P; OAL: 1.20; case expansion: moderate; not sufficiently accurate
158	Hornady swaged RN (lead)	2.7	734	case: P; OAL: 1.21; case expansion: normal
200	Markell cast (lead)	2.5	700	case: R-P; OAL: 1.19; case expansion: maximum; marginal accuracy only
110	Hornady JHP (jacketed)	3.3	893	case: P; OAL: 1.04; case expansion: normal
High Power Loads Warning! The loads in this table are not, UNDER ANY CIRCUMSTANCES, suitable for older American "top-break" revolvers chambered for the .38 Smith & Wesson cartridge. British top-break Webleys and Enfields are safe; cartridge designations may be .38-200, .380 Rim, or .380 Mk 1. The Smith & Wesson "Victory" model, a Military & Police variant, is safe. Solid-frame U.S. guns suitable are Smith & Wesson Regulation Police and Terrier models, Colt Police Positive, Detective Special, and Bankers Special models. Caliber designation of these guns is generally .38 Smith & Wesson, but may be .38 S&W Super Police or .38 Colt New Police. Notes: Velocities shown are instrumental taken at ten feet from the muzzle. Test gun was Ruger Service-Six revolver with four-inch barrel, chambered for the .380 Rim cartridge. Cases used were new Remington-Peters and old Peters. Peters cases had greater powder capacity. Alcan Small Pistol primers used for all loads. Oehler Model 31 Chronotach and Model 51 electronic screens used to measure bullet velocities.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148.5	Rapine 358150	2.5	747	group: 3 inches
Model 33 Test gun was an S&W Model 33 with a 4-inch barrel. These loads duplicate the standard factory load with a 148-grain bullet at 745 fps.

.38 S&W Special / .38 Smith & Wesson Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer hollowbase wadcutter	3.0	778	rounds per pound: 2,333
158	Hornady lead SWC-HP	3.5	795	rounds per pound: 2,000
Economical Midrange Loads firearm used: Smith & Wesson Model 14; primer: Federal 100; case: Starline: barrel length: 6"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
145	Lead	2.2	630	start load; min OAL: 1.160
145	Lead	2.2	630	never exceed; min OAL: 1.160; 10,200 cup
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hensley & Gibbs #50 wadcutter	2.8	751	overall loaded length (inches): 1.275
147	Hensley & Gibbs #50 wadcutter	3.1	808	overall loaded length (inches): 1.275
160	Lyman 358156 SWC GC	3.8	864	overall loaded length (inches): 1.45
160	Lyman 358156 SWC GC	4.1 (+P)	909	overall loaded length (inches): 1.45
160	Lyman 358311 RN	3.5	825	good accuracy; overall loaded length (inches): 1.52
160	Lyman 358311 RN	3.9 (+P)	885	overall loaded length (inches): 1.52
125	Hornady FP/XTP	5.0	903	overall loaded length (inches): 1.46
140	Hornady HP/XTP	4.5	824	good accuracy; overall loaded length (inches): 1.46
140	Hornady HP/XTP	4.9 (+P)	893	overall loaded length (inches): 1.46
110	Speer JHP	4.7	928	good accuracy; overall loaded length (inches): 1.46
Chronographed average velocities recorded with a range temperature that varied from approximately 70 to 80 degrees Fahrenheit. Accuracy testing performed from a benchrest at 25 yards. All data was safe in the test revolver. Load data is intended for use only by competent persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	JHP	4.5	1,085	14,900 psi
125	JSP	4.4	1,000	15,300 psi
148	LWC	2.8	815	15,900 psi
148	LWC (target)	2.7	785	14,600 psi
158	LSWC	3.6	910	15,500 psi
160	JSP	3.5	805	15,600 psi
200	LRN	3.0	760	15,100 psi
Alliant Data Bbl Length: 5.6; primer: Fed. 100 except where otherwise noted in "remarks"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer HBWC	3.1	799	OAL: Flush
158	Speer LSWC	3.5	814	OAL: 1.440"
110	Speer GDHP	4.6	990	OAL: 1.455"
125	Speer GDHP	4.5	914	OAL: 1.440"
Alliant Reloaders Guide 2008 - Pistol/Revolver primer: CCI 500; case: Speer; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Oregon Trails lead	4.8	1024
140	Hornady FP lead	4.5	945
147	RCBS mould #82077	3.5	838	primer: CCI 500; case: Speer; OAL: 1.530"
Alliant Reloaders Guide primer: Rem 1 1/2; case: Remington; OAL: 1.450" (except where otherwise specified in remarks); NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Cowboy Action Handgun Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lyman 358439 HP	3.5	855	best accuracy
Cast Bullet - Lyman Mould Revolver used: Smith & Wesson Model 14, 6-inch barrel; overall loaded length (inches): 1.50; Lyman 358439 HP (wheelweight alloy) sized to .358 inch; Velocity figures are the average of at least six rounds fired approximately 10 feet from the muzzle using an Oehler Model 35P chronograph. Ambient temperature during testing averaged 58 degrees Fahrenheit. CCI standard velocity primers used. Loads were assembled using Winchester cases. All loads should be reduced 5 percent for initial load development. This data is intended only for use by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242 (Linotype)	3.3	765	sugg. start load; 1.456" OAL; 7,600 cup
90	Cast #356242 (Linotype)	5.3	1110	max load; 1.456" OAL; 15,700 cup
90	Cast #356242 (Linotype)	5.6 (+P)	1168	max load; 1.456" OAL; 17,600 cup
120	Cast #356242 (Linotype)	2.8	690	sugg. start load; 1.450" OAL; 8,600 cup
120	Cast #356242 (Linotype)	4.6	1001	max load; 1.450" OAL; 16,400 cup; potentially most accurate load
120	Cast #356242 (Linotype)	4.9 (+P)	1045	max load; 1.450" OAL; 18,400 cup
150	Cast #358091 (Linotype)	3.1	837	sugg. start load; 1.317" OAL; 13,100 cup
150	Cast #358091 (Linotype)	3.5	925	max load; 1.317" OAL; 16,400 cup
155	Cast gas check #358156 (Linotype)	2.8	638	sugg. start load; 1.460" OAL; 10,000 cup
155	Cast gas check #358156 (Linotype)	4.0	858	max load; 1.460" OAL; 16,000 cup; potentially most accurate load
155	Cast gas check #358156 (Linotype)	4.4 (+P)	915	max load; 1.460" OAL; 18,100 cup
158	Cast #358665 (Linotype)	3.0	786	sugg. start load; 1.445" OAL; 14,900 cup
158	Cast #358665 (Linotype)	3.4	855	max load; 1.445" OAL; 16,600 cup
160	Cast #358311 (Linotype)	3.2	796	sugg. start load; 1.550" OAL; 13,200 cup; potentially most accurate load
160	Cast #358311 (Linotype)	3.6	863	max load; 1.550" OAL; 15,800 cup
160	Cast #358311 (Linotype)	4.1 (+P)	936	max load; 1.550" OAL; 18,300 cup
170	Cast #358429 (Linotype)	2.8	781	sugg. start load; 1.537" OAL; 13,600 cup
170	Cast #358429 (Linotype)	3.2	833	max load; 1.537" OAL; 15,500 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Hunting Shack FP	4.5	907
125	Hunting Shack FP	4.9	952
125	Hunting Shack FP	5.3	1015
in a Colt Trooper Warning! Gun: Colt Trooper; Barrel Length: 4 inches; Cases: Starline; Bullet Diameter: .357 inch; Maximum Case Length: 1.155 inches; Trim-to Length: 1.145 inches; Primer: CCI 500; COAL: 1.420 inches;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	3.3	765	sugg. start load; 7,600 cup
92	Cast #358242	5.3	1110	max load; 15,700 cup
92	Cast #358242	5.6 (+P)	1168	max load; higher pressure load- see NOTES; 17,600 cup
121	Cast #358242	2.8	690	sugg. start load; 8,600 cup
121	Cast #358242	4.6	1001	max load; 16,400 cup; potentially most accurate load
121	Cast #358242	4.9 (+P)	1045	max load; higher pressure load- see NOTES; 18,400 cup
121	Cast #356402	3.8	847	sugg. start load; 11,400 cup
121	Cast #356402	5.0	1048	max load; 16,500 cup; potentially most accurate load
121	Cast #356402	5.3 (+P)	1068	max load; higher pressure load- see NOTES; 18,200 cup
141	Cast #358495	3.0	778	sugg. start load; 11,000 cup
141	Cast #358495	4.1	973	max load; 16,800 cup
146	Cast #358212	2.7	612	sugg. start load; 8,000 cup
146	Cast #358212	4.3	906	max load; 15,800 cup
148	Cast #35863	2.4	664	sugg. start load; 8,400 cup
148	Cast #35863	3.8	950	max load; 16,100 cup
148	Cast #35891	2.8	568	sugg. start load; 8,900 cup
148	Cast #35891	4.4	953	max load; 16,200 cup
158	Cast #358156 gas check	2.8	638	sugg. start load; 10,000 cup
158	Cast #358156 gas check	4.0	858	max load; 16,000 cup; potentially most accurate load
158	Cast #358311	2.8	656	sugg. start load; 10,000 cup
158	Cast #358311	4.2	880	max load; 16,200 cup
162	Cast #357446	3.0	680	sugg. start load; 10,100 cup
162	Cast #357446	4.2	889	max load; 16,900 cup
168	Cast #358429	2.6	597	sugg. start load; 9,300 cup
168	Cast #358429	4.2	850	max load; 16,800 cup
Lyman Cast Bullet Handbook 3rd Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used size to .357" dia.; firearm used: Universal Receiver and Special Vented Barrel; barrel length: 4"; twist: 1-18 3/4"; groove diameter: .357". NOTE: More Lyman cast bullet data available under .38 Special (Cast Bullet Data Lyman Reloading Manual 49th Edition) and .38 Special (Lyman Cast Bullet Handbook 4th Edition). NOTE: Loads designated with the symbol (+P) are higher pressure loads to give greater velocities. These loads should be used only in arms recommended for (+P) type cartridges by the gun manufacturer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
105	Lee #358-105-SWC	3.6	844	sugg. start load; 12,200 psi
105	Lee #358-105-SWC	4.6	1058	max load; 16,700 psi; potentially most accurate load
105	Lee #358-105-SWC	4.9	1098	+P - higher pressure load; 18,400 psi
Lyman Cast Bullet Handbook 4th Edition cases: Federal; trim-to length: 1.149"; primer: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; 1.450" OAL. NOTE: Loads designated with a +P symbol are higher pressure loads and must not be used in standard 38 Special revolvers unless the manufacturer has specifically stated that the use of such ammunition is acceptable in the particular firearm.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer Jacketed HP	4.0	836	sugg. start load; 1.430" OAL; 12,200 cup
110	Speer Jacketed HP	4.5	895	max load; 1.430" OAL; 14,300 cup
110	Speer Jacketed HP	5.2 (+P)	1054	max load; 1.430" OAL: 18,600 cup; potentially most accurate load
140	Speer Jacketed HP	3.5	533	sugg. start load; 1.470" OAL; 11,900 cup
140	Speer Jacketed HP	4.3	714	max load; 1.470" OAL; 16,500 cup
125	Hornady Jacketed HP	3.2	568	sugg. start load; 1.470" OAL; 10,200 cup
125	Hornady Jacketed HP	4.4	860	max load; 1.470" OAL; 16,500 cup; potentially most accurate load
125	Hornady Jacketed HP	5.0 (+P)	920	max load; 1.470" OAL; 18,300 cup
Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	BB-WC	4.5	933	maximum load
148	BB-WC	3.9	813
148	HB-WC	3.1	799	maximum load
148	HB-WC	2.8	741
147	Cast FN	3.5	838	maximum load
147	Cast FN	3.1	768
158	L-SWC, L-HP, L-RN	3.5	814	maximum load
158	L-SWC, L-HP, L-RN	3.1	752
110	JHP	4.7	1,022	maximum load
125	JSP, GD-HP, JHP, TMJ	4.5	914	maximum load; DO NOT REDUCE
Speer Reloading Manual #13 max. case length: 1.155"; trim-to length: 1.145"; max. cart. length: 1.550"; RCBS shellholder: #6; barrel length: 6"; twist: 1-18.75"; test firearm: Smith & Wesson Model 14; case: Speer; primers: CCI 500, 550; for the 147 grain cast bullets: seat to and roll-crimp into the front lube groove; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer HBWC	2.8	741	start charge; seat bullet flush with case mouth; use a light roll or taper crimp
148	Speer HBWC	3.1	799	maximum charge; seat bullet flush with case mouth; use a light roll or taper crimp
147	Speer FN	3.1	768	start charge; bullets cast in RCBS moulds
147	Speer FN	3.5	838	maximum charge; bullets cast in RCBS moulds
158	Speer LSWC, LSWC HP or LRN	3.1	752	start charge
158	Speer LSWC, LSWC HP or LRN	3.5	814	maximum charge
110	Speer UCHP or GDHP SB	4.2	891	start charge
110	Speer UCHP or GDHP SB	4.6	990	maximum charge
Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; 550; test firearm: S&W Model 14; barrel length: 6"; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP-XTP	4.2	874	COAL: 1.445"
110	Hornady HP-XTP	4.5	921	COAL: 1.445"
110	Hornady HP-XTP	4.9	988	COAL: 1.445"
110	Hornady HP-XTP	5.2	1051	COAL: 1.445"
110	Hornady HP-XTP	5.6	1098	COAL: 1.445"; +P load
110	Hornady HP-XTP	6.0	1147	COAL: 1.445"; +P load; maximum load
125	Hornady HP-XTP or FP-XTP	4.5	909	COAL: 1.450"
125	Hornady HP-XTP or FP-XTP	4.7	937	COAL: 1.450"
125	Hornady HP-XTP or FP-XTP	5.0	971	COAL: 1.450"
125	Hornady HP-XTP or FP-XTP	5.3	1001	COAL: 1.450"; +P load; maximum load
140	Hornady HP-XTP	4.2	850	COAL: 1.450"
140	Hornady HP-XTP	4.4	871	COAL: 1.450"
140	Hornady HP-XTP	4.7	905	COAL: 1.450"
140	Hornady HP-XTP	5.0	931	COAL: 1.450"; +P load; maximum load
158	Hornady HP-XTP or FP-XTP	3.4	634	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	3.7	660	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	3.9	701	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	4.2	741	COAL: 1.450"
158	Hornady HP-XTP or FP-XTP	4.5	775	COAL: 1.450"; +P load; maximum load
140	Hornady FP-Cowboy	3.0	689	COAL: 1.450"
140	Hornady FP-Cowboy	3.4	741	COAL: 1.450"
140	Hornady FP-Cowboy	3.8	810	COAL: 1.450"
140	Hornady FP-Cowboy	4.2	871	COAL: 1.450"
140	Hornady FP-Cowboy	4.6	939	COAL: 1.450"; maximum load
148	Hornady HBWC	2.1	627	COAL: 1.180"
148	Hornady HBWC	2.4	669	COAL: 1.180"
148	Hornady HBWC	2.6	711	COAL: 1.180"
148	Hornady HBWC	2.8	751	COAL: 1.180"
148	Hornady HBWC	3.0	799	COAL: 1.180"; maximum load
158	Hornady SWC-HP, SWC or LRN	2.8	684	COAL: 1.455"
158	Hornady SWC-HP, SWC or LRN	3.1	728	COAL: 1.455"
158	Hornady SWC-HP, SWC or LRN	3.4	777	COAL: 1.455"
158	Hornady SWC-HP, SWC or LRN	3.7	826	COAL: 1.455"; maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Colt Trooper 38 Special; barrel length: 4-inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .357"; maximum COAL: 1.550"; maximum case length: 1.155"; trim to length: 1.145".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler Sporting Handgun Jacketed Hollow Point	4.1	830	maximum load; most accurate load tested
158	Nosler Sporting Handgun Jacketed Hollow Point	3.6	730
158	Nosler Sporting Handgun Jacketed Hollow Point	3.1	630
Using Nosler Bullets Handgun; Case: Federal; primer: WSP; barrel length/make: 7.75" H-S Precision; twist: 1-16"; bullets: 158 GR Sporting Handgun Revolver JHP; OACL: 1.440"; maximum OACL: 1.550". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC	3.9	874	OAL: 1.440"
110	Speer GDHP	5.2	1098	OAL: 1.445"
125	Speer GDHP	4.8	1021	OAL: 1.440"
+P (Alliant Reloaders Guide) primer: CCI 500; case: Speer; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Jacketed	5.3	1290	start load; min OAL: 1.410
90	Jacketed	5.5	1340	never exceed; min OAL: 1.410; 17,000 psi
110	Jacketed	4.7	1109	start load; min OAL: 1.430
110	Jacketed	5.0	1175	never exceed; min OAL: 1.430; 17,400 psi
125	Jacketed	4.5	1020	start load; min OAL: 1.437
125	Jacketed	4.8	1090	never exceed; min OAL: 1.437; 17,500 psi
158	Lead	3.6	900	start load; min OAL: 1.420
158	Lead	3.8	945	never exceed; min OAL: 1.420; 17,200 psi
160	Jacketed	3.5	781	start load; min OAL: 1.430
160	Jacketed	3.7	820	never exceed; min OAL: 1.430; 17,100 psi
200	Lead	3.1	759	start load; min OAL: 1.540
200	Lead	3.3	795	never exceed; min OAL: 1.540; 17,100 psi
+P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC, LSWC HP or LRN	3.5	814	start charge
158	Speer LSWC, LSWC HP or LRN	3.9	874	maximum charge
110	Speer UCHP or GDHP SB	4.8	1027	start charge
110	Speer UCHP or GDHP SB	5.2	1098	maximum charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	4.5	914	start charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	4.8	1021	maximum charge
140	Speer UCHP	4.0	828	start charge
140	Speer UCHP	4.6	924	maximum charge
+P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	4.8	873	start charge
110	Speer UCHP or GDHP SB	5.2	941	maximum charge
+P Short Barrel Velocities Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 15; barrel length: 2"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Jacketed	4.5	1085	start load; min. OAL: 1.430
110	Jacketed	4.5	1085	NEVER EXCEED; 14,900 psi; min. OAL: 1.430
125	Jacketed	4.3	981	start load; min. OAL: 1.440
125	Jacketed	4.4	1000	NEVER EXCEED; 15,300 psi; min. OAL: 1.440
148	Wad Cutter	2.6	769	start load; min. OAL: 1.180
148	Wad Cutter	2.8	815	NEVER EXCEED;15,900 psi; min. OAL: 1.180
148	Wad Cutter	2.7	785	start load; min. OAL: 1.180
148	Wad Cutter	2.7	785	NEVER EXCEED; 14,600 psi; min. OAL: 1.180
158	Lead	3.5	884	start load; min. OAL: 1.420
158	Lead	3.6	910	NEVER EXCEED; 15,500 psi; min. OAL: 1.420
160	Jacketed	3.4	774	start load; min. OAL: 1.435
160	Jacketed	3.5	804	NEVER EXCEED; 15,600 psi; min. OAL: 1.435
200	Lead	3.0	753	start load; min. OAL: 1.540
200	Lead	3.0	760	NEVER EXCEED; 15,100 psi; min. OAL: 1.540
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer HB-WC	3.0	778	most accurate WC load
158	Speer lead HP-SWC	3.5	783
158	RCBS cast SWC	3.5	835	most accurate 158-SWC load
173	Lyman 358429 cast	4.0	854
17,000 psi Test gun was a Smith & Wesson Model 14 with a 6 inch barrel. Federal 100 primers used throughout. Temperature during testing was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	SP 148 HBWC	2.7	705	muzzle energy (ft-lbs): 160
202	RCBS 35-200	2.7	657	muzzle energy (ft-lbs): 193
Alloy bullets in a 6-inch Barrel Cast bullets from wheelweight alloy: BHN 12.5. Swaged lead bullets from Speer: BHN 8.5.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RCBS .38-.357 Keith semiwadcutter	3.7	642	case expansion normal
158	Lyman 358156 semiwadcutter	3.5	612	case expansion near maximum; accurate in longer barrels
145	Hensley & Gibbs No. 73 semiwadcutter	3.5	612	case expansion normal; accurate load
Cast Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RBCS .38-.357 Keith semiwadcutter	3.7	742	case expansion normal
158	Lyman 358156 semiwadcutter	3.5	713	case expansion near maximum; accurate in longer barrels
145	Hensley & Gibbs No. 73 semiwadcutter	3.5	699	case expansion normal; accurate load
Cast Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RCBS .38-.357 Keith semiwadcutter	3.7	824	case expansion normal
158	Lyman 358156 semiwadcutter	3.5	763	case expansion near maximum; accurate in longer barrels
145	Hensley & Gibbs No. 73 semiwadcutter	2.7	647	case expansion light
145	Hensley & Gibbs No. 73 semiwadcutter	3.0	700	case expansion moderate
145	Hensley & Gibbs No. 73 semiwadcutter	3.5	761	case expansion normal; accurate load
145	Hensley & Gibbs No. 73 semiwadcutter	4.0	896	case expansion maximum
Cast Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	RCBS .38-.357 Keith semiwadcutter	3.7	852	case expansion normal
158	Lyman 358156 semiwadcutter	3.5	796	case expansion near maximum; accurate in longer barrels
145	Hensley & Gibbs No. 73 semiwadcutter	3.5	792	case expansion normal; accurate load
Cast Bullet Loads in an 8 3/8-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Speer hollowbase wadcutter	3.0	785
148	Hornady hollowbase wadcutter	2.7	754
148	Hornady hollowbase wadcutter	3.0	798
158	Speer lead SWC-HP	3.5	770
158	RCBS cast 38-150-SWC	3.5	821
173	Lyman 358429 cast Keith	4.0	847
Colt-King Super Target Loads fired in a 6-inch barreled Colt Officer's Model Heavy Barrel, King Short Action. Winchester +P cases and Federal 100 primers used throughout. Standard Pressures 17,000 psi)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	BBC roundnose	3.5	889	group (inches): 0.85; power factor: 111
125	BBC roundnose	4.0	915	group (inches): 0.55; power factor: 114
148	BBC DEWC	2.7	744	group (inches): 0.67; power factor: 110; S&W Model 52 load
148	BBC DEWC	3.1	817	group (inches): 0.87; power factor: 121
in a Custom Taurus Model 80 A custom Taurus Model 80 with a 6-inch Jarvis barrel and a Tasco PDP3 five-minute dot sight were used for all testing. Winchester +P cases and Federal No. 100 primers were used for all handloads, except for the 2.7-grain Bullseye/148-grain DEWC load, which used WSP primers and mixed cases. Accuracy is the average of at least three, five-shot groups at 25 yards, unless otherwise noted. Velocities were measured with an Oehler M-35P chronograph with the front screen 12 feet from the gun's muzzle. All shooting was done double action from a rest. Range temperatures were 58 to 69 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	4.0	619	case expansion maximum
140	Sierra JHC	4.0	601	case expansion near maximum
140	Speer JHP	4.2	619	case expansion maximum
125	Hornady JFP	4.5	702	case expansion maximum
110	Sierra JHC	5.0	795	case expansion maximum
Jacketed Bullet Loads in a 2-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Sierra JHC	4.0	730	case expansion near maximum
125	Hornady JFP	4.5	818	case expansion maximum
110	Sierra JHC	5.0	951	case expansion maximum
Jacketed Bullet Loads in a 4-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady JHP	4.0	666	case expansion maximum
140	Sierra JHC	4.0	763	case expansion near maximum
140	Speer JHP	4.2	772	case expansion maximum
125	Hornady JFP	4.5	858	case expansion maximum
110	Sierra JHC	5.0	980	case expansion maximum
Jacketed Bullet Loads in a 6-inch Barrel Loads labeled "maximum" should not be exceeded! Reduce maximum loads 10% for light and alloy-framed guns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Round Nose Flat Point	2.9	756
Pistol Oregon Trail Handgun/Cowboy Loads test gun: Ruger Blackhawk 6 1/2", WSP; do not exceed maximum loads; OAL: 1.435; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Double Base Wad Cutter	2.7	753	starting load
148	Double Base Wad Cutter	3.3	862	maximum load
Pistol (Oregon Trail Handgun/PPC Loads) test gun: Smith & Wesson 686 6", WSP; do not exceed maximum loads; minimum OAL: 1.175; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Truncated Cone	2.9	711	starting load; minimum OAL: 1.450
125	Truncated Cone	4.6	1,007	maximum load; minimum OAL: 1.450
Pistol Oregon Trail Handgun/Standard Loads test gun: Smith & Wesson 686 6", WSP; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Speer UCHP or GDHP SB	4.2	791	start charge
110	Speer UCHP or GDHP SB	4.6	852	maximum charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	4.5	914	maximum charge; DO NOT REDUCE
Short Barrel Velocities Speer Reloading Manual #14 test firearm: S&W M15 2"; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	Precision	2.7	726	best group: .75
Wadcutter (4-Inch Barrel) Colt Diamondback Revolver. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	RCBS Mould	2.7	776	Best group 1.44
Wadcutter (5-Inch Barrel) Colt National Match Mk. III Auto. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
148	RCBS-Mould	2.7	736	Best group: .50
Wadcutter (6-Inch Barrel) Colt 357 Revolver. Precision, Speer H.B. and Hornady wadcutters were all of hollow-base design, while the Speer Standard and RCBS-Mould cast bullets were solid flat-base type.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	roundnose flatpoint	3.5	730	group (inches): 4.00
Colt Officer's Match for Plated Bullets All results were the average of five, five-shot strings at 25 yards with the handguns rested on sandbags. OAL: 1.365 inches.

.38 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Jacketed	5.2	1182	start load; min OAL: 1.255
115	Jacketed	5.5	1240	never exceed; min OAL: 1.255; 33,900 psi
130	Jacketed	4.9	1126	start load; min OAL: 1.260
130	Jacketed	5.1	1170	never exceed; min OAL: 1.260; 33,600 psi
147	XTP	4.7	1035	start load; min OAL: 1.275
147	XTP	5.0	1095	never exceed; min OAL: 1.275; 34,000 psi
158	Lead	4.4	990	start load; min OAL: 1.275
158	Lead	4.6	1030	never exceed; min OAL: 1.275; 33,600 psi
Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Cast #356404	4.5	1170	sugg. start load; 19,800 cup
95	Cast #356404	6.0	1425	max load; 31,000 cup
133	Cast #358480	4.0	1000	sugg. start load; 19,800 cup
133	Cast #358480	5.3	1180	max load; 31,500 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used size to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .355". NOTE: More Lyman cast bullet data available under .38 Super Automatic Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Hornady FMJ-RN	4.5	1112
100	Hornady FMJ-RN	4.8	1155
100	Hornady FMJ-RN	5.1	1200
100	Hornady FMJ-RN	5.4	1247
100	Hornady FMJ-RN	5.7	1296
100	Hornady FMJ-RN	6.0	1335	maximum load
Using 100 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.210"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP XTP	5.1	1189
90	Hornady HP XTP	5.4	1244
90	Hornady HP XTP	5.7	1302
90	Hornady HP XTP	6.0	1363
90	Hornady HP XTP	6.3	1427
90	Hornady HP XTP	6.6	1481	maximum load
Using 90 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Kimber Model 1911; barrel length: 5 inches; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355" and .357"; COAL: 1.220"; maximum COAL: 1.280"; maximum case length: .900"; trim to length: .895".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer GDHP	5.2	1158
+P Alliant Reloaders Guide 2008 primer: CCI 500; case: Winchester; OAL: 1.260; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady FMJ RN	4.7	1145	overall loaded length (inches): 1.245
115	Hornady FMJ RN	5.2	1205	overall loaded length (inches): 1.245
115	Hornady FMJ RN	5.7	1285	overall loaded length (inches): 1.245
124	Oregon Trail cast RN	4.0	974	overall loaded length (inches): 1.250
124	Oregon Trail cast RN	4.5	1071	overall loaded length (inches): 1.250
124	Oregon Trail cast RN	5.0	1191	overall loaded length (inches): 1.250
+P A Kimber Stainless Target II with a 5-inch barrel was used to test fire these loads. Starline cases and Winchester Small Pistol primers were used throughout. Bullet diameter: .355 and .356 inch; maximum overall loaded length: 1.280 inches; maximum case length: .900 inch; and trim-to length; .895 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer TMJ RN , UCSP or GDHP	4.7	1073	start charge
124	Speer TMJ RN , UCSP or GDHP	5.2	1158	maximum charge
147	Speer GDHP or TMJ FP	4.2	958	start charge
147	Speer GDHP or TMJ FP	4.6	1041	maximum charge
+P Speer Reloading Manual #14 max. case length: 0.900"; trim-to length: 0.890"; max cart. OAL: 1.280"; RCBS shell holder: #39; cart. case: Winchester; primer: CCI 500; test firearm: Colt 38 Super; barrel length: 5"; NOTE: 125-grain Speer SIG GDHP or SIG TMJ FN may also be used in the 124-grain loads; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
122	Flat Point	4.3	1,053	OAL: 1.19
115	Round Nose	4.9	1,099	OAL: 1.2
+P Steel Loads (Oregon Trail Data) test gun: Caspian 1911, 5", WSP; all maximum 38 Super loads are for fully supported chambers only! do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	4.2	1022	sugg. start load; 19,500 cup; 1.175" OAL
90	Cast #356242	5.6	1261	max load; 30,900 cup; 1.175" OAL
120	Cast #356242	3.9	970	sugg. start load; 17,600 cup; 1.160" OAL
120	Cast #356242	5.4	1214	max load; 29,200 cup; 1.160" OAL
120	Cast #356402	4.0	1005	sugg. start load; 18,600 cup; 1.230" OAL
120	Cast #356402	5.3	1235	max load; 30,000 cup; 1.230" OAL
147	Cast #356637	4.3	793	sugg. start load; 24,300 cup; 1.224" OAL
147	Cast #356637	4.8	940	max load; 31,300 cup; 1.224" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	5.0	1222	sugg. start load; 17,600 cup; 1.125" OAL
90	Sierra Jacketed HP	6.8	1472	max load; 30,600 cup; 1.125" OAL
95	Sierra FMJ	5.7	1256	sugg. start load; 21,400 psi; 1.175" OAL
95	Sierra FMJ	6.4	1406	max load; 32,300 psi; 1.175" OAL
115	Hornady Jacketed HP	5.0	1084	sugg. start load; 19,100 cup; 1.265" OAL
115	Hornady Jacketed HP	6.2	1182	max load; 31,300 cup; 1.265" OAL
124	Hornady FMJ/FP	4.0	842	sugg. start load; 19,500 cup; 1.165" OAL
124	Hornady FMJ/FP	5.1	1125	max load; 29,600 cup; 1.165" OAL
147	Speer TMJ	4.3	972	sugg. start load; 22,000 cup; 1.280" OAL
147	Speer TMJ	5.0	1078	max load; 28,200 cup; 1.280" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .895"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Leadheads roundnose	4.5	1,000	see note #1; cast bullet load; 25-yard group (inches): 3.0
115	Hornady XTP	5.4	1,211	see note #2; jacketed bullet load; 25-yard group (inches): 3.1; Colt pistol used
115	Hornady XTP	5.4	1,187	see note #2; jacketed bullet load; 25-yard group (inches): 2.4
147	Sierra XTP	5.0	1,112	jacketed bullet load; 25-yard group (inches): 2.3
147	Speer Gold Dot	5.0	1,088	jacketed bullet load; 25-yard group (inches): 1.75
147	Speer Gold Dot	4.9	1,066	jacketed bullet load; 25-yard group (inches): 1.6
147	Federal Hydra Shock	4.8	1,077	jacketed bullet load; 25-yard group (inches): 2.4
All accuracy results obtained with Kimber pistol unless otherwise noted. A taper crimp was used on all loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	6.0	1,338	case: R-P; length (in.): 1.20; expansion: moderate
115	Hornady JHP	5.5	1,155	case: W-W; length (in.): 1.24; expansion: near max
in a 5-inch Barrel Test gun Colt .38 Super Automatic with five-inch Colt barrel; Winchester 108 Small Pistol primers; velocities chronographed ten feet from muzzle.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady JHP	5.0	1,150	case: W-W; length (in.): 1.24; expansion: moderate; second most accurate
127	Lyman 356402	4.0	982	case: W-W; length (in.): 1.28; expansion: light; very accurate
in a 6-inch Barrel Test gun Colt .38 Super Automatic with six-inch SSK custom barrel; Winchester 108 Small Pistol primers; velocities chronographed ten feet from muzzle.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Winchester ST	5.5	1,180	overall loaded length: 1.280 inches; group: 1inch
115	Winchester ST	5.8	1,177	overall loaded length: 1.280 inches; group: 3/4 inch
in a Kimber Distance was 20 yards with a Ransom Rest. Remington factory brass and CCI 500 primers used. Outside temperature was 55 degrees Fahrenheit, wind from the shooter
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Winchester ST	5.5	1141	overall loaded length (inches): 1.260; group (inches): .625
115	Winchester ST	5.8	1222	overall loaded length (inches): 1.260; group (inches): .540
Les Baer Loading Data All groups are five shots fired from a Ransom Rest with the targets at 25 yards. Wind was calm; temperature was 55 degrees Fahrenheit. Velocities were measured 10 feet from the muzzle with an Oehler Model 35P Chronograph. Remington nickel cases and CCI 500 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
122	Bull-X FN/LD	4.1	926	Level I Load
150	Bull-X SWC/LD	3.5	971	Level I Load
Warning: Level IV loads should be used only in guns with full-support barrels. They must not be fired in standard factory barrels made by Colt and others. These loads are for modern guns in excellent condition chambered for the .38 Super cartridge and should not be fired in guns originally chambered for the .38 Auto. All loads are safe in the author's guns but all powder charges listed for Levels III and IV loads should be reduced by 10 and 20 percent, respectively, for starting loads in other guns. Remington nickel-plated cases were used in all loads. Winchester WSP primers were used in Levels I, II and III loads; Winchester WSR primers were used in Level IV loads.

.380 Auto / .380 ACP (9mm Corto & 9mm Short)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	2.4	750	sugg. start load; 11,800 cup
92	Cast #358242	3.0	915	max load; 16,000 cup
121	Cast #358242	1.6	600	sugg. start load; 10,500 cup
121	Cast #358242	2.1	750	max load; 15,200 cup
Lyman Cast Bullet Handbook 3rd Edition case: Super Vel (except where otherwise specified in remarks); trim-to length: .677"; primers; Winchester 1 1/2-108; primer size: Small Pistol; Lyman shell holder: No. 26; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove diameter: .355"; bullets: cast #358242 (#2 Alloy) .980" OAL
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
80	JHP	3.3	1,018	energy: 185; psi: 12,800
90	JHP	3.0	932	energy: 173; psi: 12,800
Super Vel Data 5 inch Pressure Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HC	2.0	713	sugg start load; 9,100 cup; .925" OAL
90	Sierra Jacketed HC	2.9	970	max load; 15,500 cup; .925" OAL; potentially most accurate load
95	Sierra FMJ	2.0	724	sugg start load; 9,400 cup; .900" OAL
95	Sierra FMJ	2.8	953	max load; 15,700 cup; .900" OAL
115	Hornady Jacketed HP/XTP	2.0	711	sugg start load; 9,900 cup; .956" OAL
115	Hornady Jacketed HP/XTP	2.9	937	max load; 15,100 cup; .956" OAL
90	Cast Lyman #356242 (sized to .355" dia)	2.4	750	sugg start load; 11,800 cup; .980" OAL
90	Cast Lyman #356242 (sized to .355" dia)	3.0	915	max load; 16,000 cup; .980" OAL
120	Cast Lyman #356242 (sized to .355" dia)	1.6	600	sugg start load; 10,500 cup; .980" OAL
120	Cast Lyman #356242 (sized to .355" dia)	2.1	750	max load; 15,200 cup; .980" OAL
(9mm Kurz) Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .677"; primers: Federal 100 and Winchester WSP; primer size: small pistol; Lyman shell holder: No. 26; firearm used: Universal Receiver; barrel length: 3 3/4"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer GDHP	3.4	981
Alliant Reloaders Guide 2008 primer: CCI 500; case: Winchester; OAL: .970"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Sierra FMJ	3.0	853	overall loaded length (inch): .938
95	Sierra FMJ	3.5	967	overall loaded length (inch): .938
95	Winchester FMJ	3.0	850	overall loaded length (inch): .944
95	Winchester FMJ	3.5	958	overall loaded length (inch): .944
Ruger LCP Load Data A 2.75-inch barreled Ruger LCP .380 Auto used to test fire all loads. Starline cases and Winchester Small Pistol primers used throughout. Maximum cartridge length: .984 inch; maximum case length: .680 inch; case trim-to length: .670 inch. Industry pressure limit: 21,500 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHP	3.0	927	extreme spread (fps): 40
95	Sierra FMJ	2.9	850	extreme spread (fps): 46
95	Valiant cast LRNFP	3.0	836	extreme spread (fps): 63
100	Speer JHP	2.8	798	extreme spread (fps): 40
Selected Maximum Handloads All loads assembled in Starline brass with CCI Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer AUTO GDHP	3.0	885	start charge
90	Speer AUTO GDHP	3.4	981	maximum charge
95	Speer TMJ RN	3.0	874	start charge
95	Speer TMJ RN	3.3	990	maximum charge
Speer Reloading Manual #14 max. case length: 0.680"; trim-to length: 0.670"; max cart. OAL: 0.984"; RCBS shell holder: #10; cart. case: Winchester; primer: CCI 500; test firearm: Walther PP; barrel length: 3.8"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	3.0	889
90	Hornady HP-XTP	3.1	921
90	Hornady HP-XTP	3.3	957
90	Hornady HP-XTP	3.4	998	maximum load
Using Hornady Bullets These loads were shot by Brian Pearce, Wolfe Publishing Company. Gun: Walther PPK/S; barrel length: 3 1/4 inches; case: Starline; primer: Winchester WSP; bullet diameter: .355"; maximum COAL: .980"; maximum case length: .680"; trim to length: .675"; COAL: .965".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	2.9	938	primer: Super Vel; length: .935
115	Sierra JHC	2.0	675	primer: Fed. 100; length: .935; accurate load
115	Hornady JHP	2.3	750	primer: Super Vel; length: .960
Locked-breech guns only Tests conducted with Star Super-SM, 3 1/2-inch barrel. Loads not applicable or appropriate for older, straight blow-back handguns.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Jacketed	3.2	980	start load; min OAL: 0.960
88	Jacketed	3.2	980	never exceed; min OAL: 0.960; 14,300 psi
90	Jacketed	3.0	940	start load; min OAL: 0.960
90	Jacketed	3.0	940	never exceed; min OAL: 0.960; 12,900 psi
95	Jacketed	3.2	900	start load; min OAL: 0.975
95	Jacketed	3.2	900	never exceed; min OAL: 0.975; 14,700 psi
100	Jacketed	3.1	931	start load; min OAL: 0.975
100	Jacketed	3.3	985	never exceed; min OAL: 0.975; 20,100 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Lyman 356242 cast roundnose (sized .356 inch)	3.1	868	poor group, vertical
95	Speer FMJ (.355 inch)	3.1	807	poor group, vertical
Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. These loads were fired from a Walther Model PPK with a 3.35-inch barrel and used Winchester brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady JHP	2.7	865	load is from Hornady Handbook
in a 3.3-inch barrel All handloads utilize Federal brass and CCI 500 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer JHP	2.8	770	most accurate load
in an OMC Back Up Loads chronographed in an OMC "Back Up" .380, 2 1/2-inch barrel; Oehler M-32 Chronotach with Model 61 Skyscreens, 10 feet instrumental converted to muzzle velocity; average temperature 50 degrees; all loads in Winchester brass with CCI 500 primers
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer HP	3.2	929	group: 3.3 inches; Winchester brass used
90	Sierra HP	3.2	951	group: 2.0 inches; Winchester brass used
90	Hornady HP	3.2	956	group: 3.2 inches; Winchester brass used
100	Hornady FMJ	2.5	747	group: 4.0 inches; Remington brass used
103	Lee Cast SWC	2.5	797	group: 2.3 inches; Remington brass used
CCI-500 primers used throughout. Velocities taken five feet from muzzle. All groups measured at 10 yards, fired from sandbag rest.

.40 Smith & Wesson / .40 S&W

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	JHP	7.6	1,350	min.OAL (inches): 1.105; 33,600 psi
150	JHP	6.7	1,225	min. OAL (inches): 1.105; 34,000 psi
170	XTP	5.5	1,015	min. OAL (inches): 1.124; 33,500 psi
180	JHP	5.5	1,015	min. OAL (inches): 1.125; 33,900 psi
190	JHP	5.4	955	min. OAL (inches): 1.130; 34,000 psi
200	FMJ	4.6	945	min. OAL (inches): 1.130; 33,600 psi
Alliant Data primer: Win. 1 1/2-108; bbl length: 4.0; do not exceed the powder weight shown, start with 10% less powder than shown, work up gradually, watching for signs of high pressure
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer GDHP	6.0	1023
165	Speer GDHP	5.8	1022
180	Speer GDHP	5.5	929
Alliant Reloaders Manual primer: CCI 500; case: Speer; OAL: 1.120"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. NEVER EXCEED POWDER CHARGE
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer TMJ FN or GDHP	5.4	905	start charge
155	Speer TMJ FN or GDHP	6.0	1023	maximum charge
165	Speer TMJ FN or GDHP	5.3	949	start charge; approximate 165-gr law enforcement loads ("40 Lite")
165	Speer TMJ FN or GDHP	5.8	1022	maximum charge
180	Speer GDHP SB, TMJ FN or GDHP	4.9	783	start charge
180	Speer GDHP SB, TMJ FN or GDHP	5.5	929	maximum charge
(Handgun) Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Jacketed	7.0	1251	start load; compressed charge; min. OAL: 1.105
135	Jacketed	7.6	1350	NEVER EXCEED; compressed charge; min. OAL: 1.105; 33,600 psi
Lee Precision 135 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Jacketed	6.1	1124	start load; min. OAL: 1.105
150	Jacketed	6.7	1225	NEVER EXCEED; compressed charge; min. OAL: 1.105; 34,000 psi
Lee Precision 150 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lead	4.6	982	start load; min. OAL: 1.125
155	Lead	4.9	1051	NEVER EXCEED; min. OAL: 1.125; 33,100 psi
Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	XTP	5.1	941	start load; min. OAL: 1.125
170	XTP	5.5	1015	NEVER EXCEED; min. OAL: 1.125; 33,500 psi
Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed Bullet	5.0	932	start load; min. OAL: 1.125
180	Jacketed Bullet	5.5	1015	NEVER EXCEED; min. OAL: 1.125; 33,900 psi
180	Lead Bullet	4.2	853	start load; min. OAL: 1.125
180	Lead Bullet	4.5	911	NEVER EXCEED; min. OAL: 1.125; 33,000 psi
Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
190	Jacketed	4.9	876	start load; min OAL: 1.130
190	Jacketed	5.4	955	never exceed; min OAL: 1.130; 34,000 psi
Lee Precision 190 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	4.2	875	start load; min. OAL: 1.130
200	Jacketed	4.6	945	NEVER EXCEED; min. OAL: 1.130; 33,600 psi
Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler JHP	5.5	1070	start load; 19,600 cup; 1.085" OAL; potentially most accurate load
135	Nosler JHP	6.3	1203	max load; 23,200 cup; 1.085" OAL
150	Sierra JHP	4.9	740	start load; 18,200 cup; 1.100" OAL
150	Sierra JHP	5.7	890	max load; 22,500 cup; 1.100" OAL
155	Winchester Jacketed Silvertip	5.1	771	start load; 19,500 cup; 1.125" OAL
155	Winchester Jacketed Silvertip	5.7	885	max load; 22,500 cup; 1.125" OAL
165	Speer TMJ	4.8	733	start load; 19,200 cup; 1.120" OAL
165	Speer TMJ	5.4	825	max load; 22,600 cup; 1.120" OAL
175	Winchester Jacketed Silvertip	4.7	735	start load; 20,000 cup; 1.125" OAL
175	Winchester Jacketed Silvertip	5.3	843	max load; 23,400 cup; 1.125" OAL
180	Sierra JHP	4.9	628	start load; 18,200 cup; 1.115" OAL
180	Sierra JHP	5.6	844	max load; 23,500 cup; 1.115" OAL
190	Sierra JFP	3.9	520	start load; 16,200 cup; 1.135" OAL
190	Sierra JFP	5.0	722	max load; 23,100 cup; 1.135" OAL
150	Lyman Cast #401654 (#2 Alloy)	5.0	1056	start load; 18,600 cup; 1.090" OAL
150	Lyman Cast #401654 (#2 Alloy)	6.0	1202	max load; 23,100 cup; 1.090" OAL
175	Lyman Cast #401043 (#2 Alloy)	4.2	665	start load; 17,100 cup; 1.125" OAL
175	Lyman Cast #401043 (#2 Alloy)	5.1	812	max load; 22,000 cup; 1.125" OAL
175	Lyman Cast #401638 (#2 Alloy)	4.0	654	start load; 16,900 cup; 1.100" OAL
175	Lyman Cast #401638 (#2 Alloy)	5.0	842	max load; 23,100 cup; 1.100" OAL
Lyman Reloading Handbook 48th Edition cases: Winchester; trim-to length: .845"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .401"; do not reduce cases below the trim-to length; additionally do not roll crimp bullets; it is important not to seat bullets to a shorter length than listed in any handgun cartridge; but especially so in this one; pressures can be raised dramatically with deep seating
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
165	Rainier SWC	5.3	950	start charge
165	Rainier SWC	5.8	1020	max charge
Rainier Data COL: 1.120"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer Gold Dot TMJ or GD-HP	6.0	1023	maximum load
155	Speer Gold Dot TMJ or GD-HP	5.4	905
165	Speer Gold Dot TMJ or GD-HP	5.8	1022	maximum load
165	Speer Gold Dot TMJ or GD-HP	5.3	949	approximate 40 S&W 165 grain law enforcement version ("40 Lite")
180	Speer Gold Dot TMJ or GD-HP	5.5	929	maximum load
180	Speer Gold Dot TMJ or GD-HP	4.9	783
Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Sporting Handgun Jacketed Hollow Point	6.4	1,160	maximum load; most accurate load tested
135	Nosler Sporting Handgun Jacketed Hollow Point	5.9	1,071
135	Nosler Sporting Handgun Jacketed Hollow Point	5.4	981
180	Nosler Sporting Handgun Jacketed Hollow Point	4.8	901	maximum load; most accurate load tested
180	Nosler Sporting Handgun Jacketed Hollow Point	4.3	797
180	Nosler Sporting Handgun Jacketed Hollow Point	3.8	694
Handgun Data Using Nosler Bullets Handgun; case: Winchester; primer: WSP; barrel length/make: 4" S&W; twist: 1-16"; bullets: 135 GR, 150 GR, 180 GR & 200 GR Nosler Sporting Handgun Pistol JHP; OACL: 1.125"; maximum OACL: 1.135". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
177	Oregon Trail roundnose flatpoint	4.6	883	worst groups this bullet
175	RCBS 40-180-CM RN/FP	4.6	911	very accurate, under 1 1/2 inches
Kimber Pro Compact (Autoloading Pistol Loads) 4 1/4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .401 inch;

.41 Avenger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
186	Cast TC	4.0	770	CCI No. 350s
186	Cast TC	4.2	801	CCI No. 350s
186	Cast TC	4.4	828	CCI No. 350s
186	Cast TC	4.6	852	CCI No. 350s
186	Cast TC	4.8	880	CCI No. 350s
186	Cast TC	5.0	905	CCI No. 350s
186	Cast TC	5.2	932	CCI No. 350s
186	Cast TC	5.4	963	CCI No. 350s
186	Cast TC	5.6	985	CCI No. 350s
186	Cast TC	5.8	1019	CCI No. 350s
186	Cast TC	6.0	1034	CCI No. 350s
178	Cast TC (linotype)	4.2	870	CCI No. 350s
178	Cast TC (linotype)	4.4	873	CCI No. 350s
178	Cast TC (linotype)	4.6	920	CCI No. 350s
178	Cast TC (linotype)	4.8	932	CCI No. 350s; very good load
178	Cast TC (linotype)	5.0	967	CCI No. 350s
178	Cast TC (linotype)	5.2	990	CCI No. 350s
178	Cast TC (linotype)	5.4	1034	CCI No. 350s; good load
178	Cast TC (linotype)	5.6	1050	CCI No. 350s
178	Cast TC (linotype)	5.8	1067	CCI No. 350s; best accuracy; some loading
179	Cast RN (linotype)	4.2	822	CCI No. 350s
179	Cast RN (linotype)	4.4	846	CCI No. 350s; best RN load
179	Cast RN (linotype)	4.6	878	CCI No. 350s
179	Cast RN (linotype)	4.8	916	CCI No. 350s
179	Cast RN (linotype)	5.0	944	CCI No. 350s
179	Cast RN (linotype)	5.2	978	CCI No. 350s
179	Cast RN (linotype)	5.4	1007	CCI No. 350s
179	Cast RN (linotype)	5.6	1035	CCI No. 350s
179	Cast RN (linotype)	5.8	1046	CCI No. 350s; good load; slight leading
.45 ACP-based brass used (except where otherwise specified in remarks); Lee machine rest.

.41 Magnum / .41 Remington Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	RCBS 41-210-SWC	6.8	926	4.0-inch barrel length Federal cases and CCI Large Pistol primers.
Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 410459 cast	5.0	812	primer: Federal 150; rounds per pound: 1,400
Economical Midrange Loads firearm used: Ruger Blackhawk; case: Starline; barrel length: 6 1/2"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 410459	5.0	812	primer: Federal 150
in a Ruger Blackhawk Ruger Blackhawk has a barrel length of 6 1/2 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
221	Lyman 410459	5.0	812	primer: CCI 300; overall loaded length (inches): 1.695
in a Ruger Blackhawk, 6 1/2-inch barrel Ruger Blackhawk, 6 1/2-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
221	Lyman 410459	5.0	795	primer: CCI 300; overall loaded length (inches): 1.695
in a Smith & Wesson Model 657 Mountain Gun Smith & Wesson Model 657 Mountain Gun, 4-inch barrel. Starline brass used for all loads. SAAMI maximum overall loaded length is 1.590 inches. Maximum case length: 1.290 inches; trim-to length: 1.280 inches. Bullets cast from Lyman mould 410459 will vary in weight from 216 to 221 grains, depending on the individual mould, alloy and or lubricant used.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 410459 cast	5.0	795	primer: Federal 150
in an S&W Model 657 The Smith & Wesson Model 657 Mountain Gun has a barrel length of 4 inches. Starline brass used in all loads. Temperature during range tests was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	7.1	1111	start load; min OAL: 1.580
200	Jacketed	8.0	1235	never exceed; min OAL: 1.580; 35,700 psi
210	Jacketed	7.7	1154	start load; min OAL: 1.575
210	Jacketed	8.3	1245	never exceed; min OAL: 1.575; 34,300 psi
220	Jacketed	6.6	1025	start load; min OAL: 1.575
220	Jacketed	7.5	1150	never exceed; min OAL: 1.575; 35,800 psi
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. (Modern Reloading, Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Schaghticoke SWC	6.2	989	case: R-P; primer: R 2 1/2; O.A. Ctg. Lgt.: 1.64; case expansion: normal
Pet Loads All loads chronographed from 6 1/2-inch barrel Ruger Blackhawk. Oehler Model 31 Chronotach, Oehler Model 51 Electronic screens, spaced 10 feet apart; I.V. = Instrumental Velocity at 10 feet from muzzle. Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	L. No. 41027 HB	5.5	1,099	pressure: 38,000
All loads except Speer bullets shot in solid test barrels.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
202	Montana Bullet Works WFN	5.0	756	group (inches): 4.125
202	Montana Bullet Works WFN	6.0	863	group (inches): 5.50
210	Oregon Trail SWC	5.0	792	group (inches): 2.375
210	Oregon Trail SWC	6.0	892	group (inches): 5.00
213	Redding/SAECO 417 SWC	5.0	768	group (inches): 2.875
213	Redding/SAECO 417 SWC	6.0	869	group (inches): 3.125
218	Lyman 410459 SWC	5.0	763	group (inches): 2.25
218	Lyman 410459 SWC	6.0	836	group (inches): 2.50
228	Montana Bullet Works TRN GC	5.0	772	group (inches): 2.625
228	Montana Bullet Works TRN GC	6.0	864	group (inches): 3.75
Nonmagnum Loads (S&W Model 57-1) S&W Model 57-1, 4-inch barrel. All group figures are for 12 shots fired with handguns mounted in a Ransom Machine Rest at 25 yards. All chronograph notes are for the same 12 shots taken with start screen at approximately 6 feet. All handloads put in Remington brass, using Winchester Large Pistol primers. Bullets cast in Lyman and Redding/SAECO moulds were poured of 1-20 (tin-to-lead) alloy, sized in .410-inch die but measured .409 inch. They were lubed with SPG. Oregon Trail bullets were .412 inch. Montana Bullets Works bullets were .410 inch for the 202-grain WFN and .411 inch for the 228-grain TRN. The commercially cast bullets carried each company's own hard lubricant.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
202	Montana Bullet Works WFN	5.0	759	group (inches): 5.00
202	Montana Bullet Works WFN	6.0	912	group (inches): 5.50
210	Oregon Trail SWC	5.0	776	group (inches): 3.75
210	Oregon Trail SWC	6.0	905	group (inches): 3.875
213	Redding/SAECO 417 SWC	5.0	788	group (inches): 3.625
213	Redding/SAECO 417 SWC	6.0	891	group (inches): 4.00
218	Lyman 410459 SWC	5.0	756	group (inches): 3.875
218	Lyman 410459 SWC	6.0	890	group (inches): 4.25
228	Montana Bullet Works TRN	5.0	761	group (inches): 2.50
228	Montana Bullet Works TRN	6.0	919	group (inches): 3.25
Nonmagnum Loads (S&W Model 58) S&W Model 58, 4-inch barrel. All group figures are for 12 shots fired with handguns mounted in a Ransom Machine Rest at 25 yards. All chronograph notes are for the same 12 shots taken with start screen at approximately 6 feet. All handloads put in Remington brass, using Winchester Large Pistol primers. Bullets cast in Lyman and Redding/SAECO moulds were poured of 1-20 (tin-to-lead) alloy, sized in .410-inch die but measured .409 inch. They were lubed with SPG. Oregon Trail bullets were .412 inch. Montana Bullets Works bullets were .410 inch for the 202-grain WFN and .411 inch for the 228-grain TRN. The commercially cast bullets carried each company's own hard lubricant.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Semi Wad Cutter	6.0	997	reduced load; reduce by 10% for starting load; OAL: 1.595
Pistol (Oregon Trail Bullet Co Data) test gun: S&W M-57 6 1/2" except where otherwise noted in remarks; primer: WLP except where otherwise noted in remarks; do not exceed maximum loads; never reduce stated overall lengths

.44 Colt

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	210	Lead	4.0	700	Energy: 226; Lyman No. 429185
	Taken from Cartridges Of The World 9th Edition

.44 Remington Magnum / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	cast LSWC	6.0	894	OAL: 1.605"
Alliant Reloaders Guide primer: CCI 300; case: Speer. NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Speer LSWC	5.5	828	start charge
240	Speer LSWC	6.0	894	maximum charge
(Handgun) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed	10.9	1450	start load; min OAL: 1.585
180	Jacketed	11.5	1520	never exceed; min OAL: 1.585; 33,400 psi
200	Jacketed	10.2	1329	start load; min OAL: 1.575
200	Jacketed	11.0	1420	never exceed; min OAL: 1.575; 34,000 psi
225	Jacketed	8.7	1177	start load; min OAL: 1.575
225	Jacketed	9.5	1270	never exceed; min OAL: 1.575; 34,600 psi
240	Jacketed	8.1	1115	start load; min OAL: 1.585
240	Jacketed	8.9	1215	never exceed; min OAL: 1.585; 34,700 psi
240	Lead	9.0	1088	start load; min OAL: 1.600
240	Lead	9.8	1175	never exceed; min OAL: 1.600; 34,400 psi
265	Jacketed	7.6	1019	start load; min OAL: 1.620
265	Jacketed	8.3	1110	never exceed; min OAL: 1.620; 34,800 psi
300	XTP	6.8	876	start load; min OAL: 1.600
300	XTP	7.5	955	never exceed; min OAL: 1.600; 34,800 psi
310	Lead	6.2	894	start load; min OAL: 1.600
310	Lead	6.8	975	never exceed; min OAL: 1.600; 35,000 psi
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Special GDHP SB	8.0	1014	start charge
200	Speer Special GDHP SB	9.0	1080	maximum charge
(Short Barrel Velocities) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300; test firearm: S&W M29; barrel length: 4"; NOTE: these loads do not produce maximum pressure; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady Lead SWC	4.5	725	primer: Federal 150; group avg.: 2.79; some leading of bore
in a 5-Inch Super Blackhawk All loads in Remington brass. Velocities taken on an Oehler Model 32 Chronotach with Model 61 Skyscreens; 10 feet instrumental converted to muzzle velocity. Average temperature, 44 degrees. Test gun was a Mag-na-port Mark V (modified Super Blackhawk) with 5-inch barrel. Group Avg. = average of three 5-shot groups, 25 yards, arm rest.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman 429421 Keith	6.5	971
Midrange Loads in a Ruger Super The Ruger Super Blackhawk has a barrel length of 7 1/2 inches. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Lyman 429421 Keith	6.5	886
Midrange Loads in an S&W The Smith & Wesson Model 29-2 has a 4-inch barrel. Standard Large Pistol (CCI 300 and Federal 150) primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	4.5	719	starting load
200	Round Nose Flat Point	6.0	914	maximum load
225	Round Nose Flat Point	4.0	633	starting load
225	Round Nose Flat Point	5.3	801	maximum load
Pistol - Cowboy Loads (Oregon Trail Bullet Handgun Data) test gun: Ruger 7 1/2", WLP; OAL: 1.560; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady FP-Cowboy	5.3	696
180	Hornady FP-Cowboy	5.8	743
180	Hornady FP-Cowboy	6.3	801
180	Hornady FP-Cowboy	6.8	858
180	Hornady FP-Cowboy	7.3	915
180	Hornady FP-Cowboy	7.8	965	maximum load
Revolver (Using 180 GR Hornady Bullets) This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275"; COAL: 1.600".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady SWC-HP or SWC	5.0	737
240	Hornady SWC-HP or SWC	5.6	783
240	Hornady SWC-HP or SWC	6.1	839
240	Hornady SWC-HP or SWC	6.6	893
240	Hornady SWC-HP or SWC	7.1	946	maximum load
Revolver (Using 240 GR Hornady Bullets) This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model Blackhawk (Bisley); barrel length: 5 1/2-inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .430"; Hornady HP-XTP and CL-SIL COAL: 1.600"; SWC-HP and SWC COAL: 1.610"; maximum COAL: 1.610"; maximum case length: 1.285"; trim to length: 1.275".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Keith-style Lyman 429421	6.0	844
250	Keith-style Lyman 429421	6.5	895
Target Loads All Smith & Wesson Models 29, 629 and 329PD. A Smith & Wesson (pre-29) .44 Magnum revolver with a 6 1/2-inch barrel used to test loads. CCI 300 primers used throughout, along with Winchester and Starline cases. Maximum case length: 1.285 inches; trim-to length: 1.275 inches.

.44 Russian

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
190	Bull-X SWC	4.0	743	OAL: 1.29 inches; moderate pressure; good light load
215	Bull-X SWC	3.8	701	OAL: 1.31 inches; moderate pressure; good light load
240	Bull-X SWC	4.2	740	OAL: 1.31 inches; normal pressure; duplicates factory load
240	Bull-X SWC	4.5	805	OAL: 1.31 inches; near maximum pressure
240	Lyman 429421 HP	4.5	792	OAL: 1.31 inches; near maximum pressure; very accurate
240	Rainier TCJ	4.2	688	OAL: 1.29 inches; normal pressure
The test gun was a Colt Single Action Army .44 Special with a 7 1/2-inch barrel. All test loads used Remington cases and Remington 2 1/2 primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	RCBS mould #82307	4.0	826
Alliant Reloaders Guide 2008 primer: CCI 300; case: Starline; OAL: 1.245"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Cowboy Action Handgun Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	4.4	820	starting load
200	Round Nose Flat Point	5.0	918	maximum load
225	Round Nose Flat Point	4.1	784	starting load
225	Round Nose Flat Point	4.4	834	maximum load
Oregon Trail Handgun Data test gun: Smith & Wesson 1950, 6 1/2"; WLP; minimum OAL: 1.230; never reduce stated overall lengths; DO NOT EXCEED THESE LOADS! Use only in modern 44 Special/Magnum revolvers or Smith & Wesson Schofield reproductions in excellent condition. Original Smith & Wesson Top-Break revolvers should never be fired with smokeless powder loads!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	3.6	747	start charge
200	Speer FN or CM	4.0	826	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 0.970"; trim-to length: 0.960"; max cart. OAL: 1.430"; RCBS shell holder: #18; cart. case: Starline; primer: CCI 300; test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady Swaged Lead FN #11058	3.7	752	sugg. start load; 1.185" OAL; 8,600 cup
180	Hornady Swaged Lead FN #11058	4.2	824	max load; 1.185" OAL; 11,000 cup
200	Cast #427666	3.4	676	sugg. start load; 1.255" OAL; 8,100 psi
200	Cast #427666	3.8	743	max load; 1.255" OAL; 10,100 psi
240	Cast #429667	3.4	647	sugg. start load; 1.335" OAL; 8,500 cup
240	Cast #429667	3.8	717	max load; 1.335" OAL; 11,600 cup
245	Cast #429383	3.2	653	sugg. start load; 1.400" OAL; 9,200 cup; potentially most accurate load
245	Cast #429383	3.6	688	max load; 1.400" OAL; 10,700 cup
245	Cast #429421	3.2	649	sugg. start load; 1.390" OAL; 8,600 cup
245	Cast #429421	3.6	699	max load; 1.390" OAL; 10,500 cup
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: .965"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 6 1/2"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	roundnose Hoch custom mould	3.7	712	good load
250	roundnose Lyman 429383	3.4	706	accurate
Handloads All loads fired from a Navy Arms/Uberti 3rd Model .44 Russian with a 7-inch barrel. All chronograph figures are for five shots with start screen at approximately 6 feet. All handloads used Starline brass with Winchester Large Pistol primers. Bullets cast of 1-20 (tin-to lead) alloy, sized .430 inch and lubed with SPG.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	RCBS 44-FN	3.8	731
200	RCBS 44-FN	4.3	795
240	Hornady SWC lead	4.0	728
240	Hornady SWC lead	4.5	786	maximum, some leading
Test gun was a Colt New Frontier with a 7 1/2-inch barrel. Starline cases and Federal 150 Large Pistol primers used throughout.

.44 Smith & Wesson / .44 S&W Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
238	Lyman 429421	5.3	797	case expansion normal +
240	Taurus SWC	5.0	733	case expansion normal; original-size bullets (0.4295 in.)
240	Taurus SWC	5.0	744	case expansion normal; bullets sized to 0.4275 inch, not relubed; accuracy fair
240	Taurus SWC	5.0	768	case expansion normal; bullets sized to 0.4275 inch and relubed with Imperial wax; accurate
240	Taurus SWC	5.0	777	case expansion normal; bullets 0.4295 inch, seated deeper; accuracy poorer
240	Hornady SWC	4.5	702	case expansion normal; very accurate target load
200	Speer HP	6.0	877	case expansion normal
Loads designated maximum or near maximum must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	cast SWC GC	5.5	903	OAL: 1.500"
240	Speer LSWC	5.2	793	OAL: 1.475"
250	cast (Keith)	5.3	835	OAL: 1.580"
200	Speer GSHP	5.9	884	OAL: 1.490"
Alliant Reloaders Guide 2008 - Pistol/Revolver primer: CCI 300; case: Remington; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	RCBS mould #82307	6.4	1032
Alliant Reloaders Guide 2008 primer: CCI 300; case: Remington; OAL: 1.435"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Cowboy Action Handgun Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
237	Lyman 429421 HP	5.0	784	accurate
Cast Bullet - Lyman Mould Revolver used: Smith & Wesson Model 24, 6 1/2-inch barrel; overall loaded length (inches): 1.56; Lyman 429421 HP (sized to .431 inch); wheelweight alloy; Velocity figures are the average of at least six rounds fired approximately 10 feet from the muzzle using an Oehler Model 35P chronograph. Ambient temperature during testing averaged 58 degrees Fahrenheit. CCI standard velocity primers used. Loads were assembled using Remington cases. All loads should be reduced 5 percent for initial load development. This data is intended only for use by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady SWC-HP	5.0	802	rounds per pound: 1,400
245	Lyman 429383 cast RN	4.8	761	rounds per pound: 1,458
Economical Midrange Loads firearm used: Smith & Wesson New Century (Triple Lock) Target; safe in all revolvers; primer: CCI 300; case: Winchester; barrel length: 6 1/2"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer hollow-point	6.0	877	case: W-W; primer: R 2 1/2; expansion: normal
Jacketed Bullets Loads designated maximum or near max must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
238	Lyman 429421	5.3	797	case: R-P; primer: R 2 1/2; expansion: normal +
240	Taurus semiwadcutter	5.0	733	case: R-P; primer: R 2 1/2; expansion: normal; original-size bullets (0.4295 in.)
240	Taurus semiwadcutter	5.0	744	case: W-W; primer: R 2 1/2; expansion: normal; bullets sized to 0.4275 inch, not relubed; accuracy fair
240	Taurus semiwadcutter	5.0	768	case: W-W; primer: R 2 1/2; expansion: normal; bullets sized to 0.4275 inch and relubed with Imperial wax; accurate
240	Taurus semiwadcutter	5.0	777	case: R-P; primer: R 2 1/2; expansion: normal; bullets 0.4295 inch, seated deeper; accuracy poorer
240	Hornady semiwadcutter	4.5	702	case: R-P; primer: R 2 1/2; expansion: normal; very accurate target load
Lead Bullets Loads designated maximum or near max must not be used in old or light-frame revolvers!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed	6.5	910	start load; min OAL: 1.600
180	Jacketed	6.5	910	never exceed; min OAL: 1.600; 12,000 cup
246	Lead	4.5	765	start load; min OAL: 1.590
246	Lead	4.5	765	never exceed; min OAL: 1.590; 11,700 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	5.4	927	start charge
200	Speer FN or CM	6.4	1032	maximum charge
225	Speer SWC GC	4.7	806	start charge
225	Speer SWC GC	5.5	903	maximum charge
250	Speer K	4.5	734	start charge
250	Speer K	5.3	835	maximum charge
240	Speer LSWC	4.7	691	start charge; a Taurus revolver with 3" barrel used
240	Speer LSWC	5.2	793	maximum charge; a Taurus revolver with 3" barrel used
200	Speer GDHP SB	5.1	766	start charge
200	Speer GDHP SB	5.9`	884	maximum charge
Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	5.2	729
180	Hornady HP-XTP	5.6	777
180	Hornady HP-XTP	6.1	825
180	Hornady HP-XTP	6.5	874	maximum load
200	Hornady HP-XTP	4.3	626
200	Hornady HP-XTP	4.8	667
200	Hornady HP-XTP	5.2	720
200	Hornady HP-XTP	5.7	773
200	Hornady HP-XTP	6.1	823	maximum load
240	Hornady HP-XTP or CL-SIL	4.5	625
240	Hornady HP-XTP or CL-SIL	5.0	658	maximum load
240	Hornady SWC-HP or SWC	4.0	630
240	Hornady SWC-HP or SWC	4.5	683
240	Hornady SWC-HP or SWC	5.0	736
240	Hornady SWC-HP or SWC	5.5	790	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	Lyman 429215	5.0	820	group size: 2.00; OK
223	Lyman 429215	5.5	875	group size: 2.38
214	Lyman 42798	5.0		group size: 2.81; poor
214	Lyman 42798	5.5	880	group size: 2.44; poor
185	Lyman 429215 Special	6.0	970	group size: 2.00; OK
185	Lyman 429215 Special	6.5		group size: 4.38; poor
with light cast bullets All loads used W-W brass and CCI standard primers. Chronographing done at five feet from handgun's muzzle. Some loads showing little or no promise were not chronographed, to save time and components. All group shooting was done at twenty-five yards using a Lee pistol machine rest.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
249	Lyman 429383 cast roundnose	5.0	801	extreme spread: 22; accurate; small game load
250	Lyman 429421 Keith	5.0	812	extreme spread: 25
+P and Standard for F A Model 1997 Warning! All data is also safe for postwar Smith & Wesson N-Frame revolvers. Barrel length of Freedom Arms Model 1997 is 4 1/2. Winchester brass was used in all loads as were CCI 300 primers, except Federal 155s were used with loads containing H-110, H-4227 and IMR-4227
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	6.0	893	maximum load
200	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	5.5	845	most accurate load tested
200	Nosler Sporting Handgun Jktd HP and Jktd Soft Pt	5.0	797
Handgun Using Nosler Bullets handgun: barrel: Douglas, length: 8.2", twist: 1-20"; case: Remington; primer: Rem. 2 1/2; bullets: 200 GR & 240 GR Sporting Handgun Revolver JHP; OACL: 1.455"; maximum SAAMI overall cartridge length: 1.615"; Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Cast #427098	5.1	820	sugg. start load; 1.537" OAL; 10,100 cup
205	Cast #427098	5.8	899	max load; 1.537" OAL; 12,700 cup
210	Cast #429215 gas check	4.5	724	sugg. start load; 1.500" OAL; 9,600 cup
210	Cast #429215 gas check	5.0	799	max load; 1.500" OAL; 12,300 cup
240	Cast #429667	4.3	720	sugg. start load; 1.500" OAL; 11,100 cup
240	Cast #429667	4.8	766	max load; 1.500" OAL; 12,000 cup
245	Cast #429383	4.2	696	sugg. start load; 1.570" OAL; 7 1/2" barrel; 9,900 cup
245	Cast #429383	4.5	751	max load; 1.570" OAL; 7 1/2" barrel; 11,800 cup
245	Cast #429421	4.2	733	sugg. start load; 1.570" OAL; 10,500 cup
245	Cast #429421	4.8	786	max load; 1.570" OAL; 12,500 cup
255	Cast #429244 gas check	4.2	708	sugg. start load; 1.550" OAL; 10,900 cup
255	Cast #429244 gas check	4.7	762	max load; 1.550" OAL; 13,700 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" (except where otherwise noted in remarks); twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
257	RCBS 44-250-K	4.5	765	overall loaded length (inches): 1.602
257	RCBS 44-250-K	5.0	801	overall loaded length (inches): 1.602
in a Colt New Frontier SAA Colt New Frontier SAA, 7 1/2-inch barrel. All the loads listed are within SAAMI pressure guidelines of 15,500 psi. Starline cases and CCI 300 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
249	Lyman 429383 cast roundnose	5.0	801	extreme spread (fps): 22; accurate, small game load
250	Lyman 429421 Keith	5.0	812	extreme spread (fps): 25
in a Freedom Arms 1997 (15,500 psi or less) A Freedom Arms Model 1997 with a 4 1/4-inch barrel was used in all these loads. Winchester cases and CCI 300 primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
257	RCBS 44-250-K	4.5	747	overall loaded length (inches): 1.602
257	RCBS 44-250-K	5.0	788	overall loaded length (inches): 1.602
in a Smith & Wesson Model 1950 Smith & Wesson Model 1950 Target (original), 4-inch barrel. All the loads listed are within SAAMI pressure guidelines of 15,500 psi. Starline cases and CCI 300 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
257	RCBS 44-250-K	4.5	759	overall loaded length (inches): 1.602
257	RCBS 44-250-K	5.0	795	overall loaded length (inches): 1.602
in a USFA Colt USFA Colt Pattern Custom Keith No. 5, 5 1/2-inch barrel. All the loads listed are within SAAMI pressure guidelines of 15,500 psi. Starline cases and CCI 300 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
245	Lyman 429383 cast roundnose	5.0	774
in an S&W Model 24-6 (15,500 psi or less) A Smith & Wesson Model 24-6 with a 6 1/2-inch barrel was used to fire these loads. Winchester cases and CCI 300 Large Pistol primers were used throughout. Bullet diameter: .429 and .430 inch; maximum case length: 1.16 inches; trim-to length: 1.15 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead SWC-HP	5.0	802	extreme spread (fps): 18
245	Lyman 429383 cast roundnose	4.8	761	extreme spread (fps): 20; same as 1908 factory load
245	Lyman 429383 cast roundnose	5.3	838	extreme spread (fps): 19; good small game load
in an S&W New Century (15,500 psi or less) A Smith & Wesson New Century (Triple Lock) Target revolver with a 6 1/2-inch barrel was used to fire these loads. Winchester cases and CCI 300 primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
245	Lyman RN 429383	4.8	766	primer: CCI 300; 1.1-inch group
in the Ruger New Model Blackhawk Loads fired from a 5 1/2-inch barreled Ruger New Model Blackhawk .44 Special. Starline cases used for all loads. Temperature during testing was 30 degrees Fahrenheit. WARNING: Some of these handloads develop up to 25,000 psi and are only suitable for the New Model Ruger Blackhawk .44 Special or revolvers of similar strength.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	WC	4.5	850
185	WC	5.2	920
185	WC	6.0	1,030	13,000 cup
220		5.0	800	8,000 cup
240	SWC	5.0	830	9,000 cup
250	SWC	5.0	820	10,000 cup
All loads in modern solid-head cases with heavily crimped bullet. Performance will be slightly lower in old balloon-head cases.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
175	Ideal 429106	4.0	777	suitable for older solid frame guns and foreign copies
175	Ideal 429106	5.0	895	suitable for older solid frame guns and foreign copies
175	Ideal 429106	6.5	1,070
175	Ideal 429220	6.5	1,005
202	B&M 429205	3.0	630	suitable for older solid frame guns and foreign copies
202	B&M 429205	5.9	975
215	Bond B429750	4.0	710	suitable for older solid frame guns and foreign copies
215	Bond B429750	4.5	775	suitable for older solid frame guns and foreign copies
215	Bond B429750	5.0	840
215	Bond B429750	5.5	900
215	Bond B429750	5.7	925
246	Ideal 429421	3.0	520	suitable for older solid frame guns and foreign copies
246	Ideal 429421	3.4	590	suitable for older solid frame guns and foreign copies
246	Ideal 429421	4.9	805
for Balloon Head Cases The loads listed were assembled from a number of sources. Because a variety of components, chronographs and test conditions were involved, there are minor inconsistencies in the results. From the large amount of data available, results which seemed to be credible and useful have been included.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
173	Ideal 429220	3.0	615	OK in Russian cases; OK in older guns
173	Ideal 429220	4.0	750	OK in Russian cases; OK in older guns
173	Ideal 429220	5.0	900	OK in Russian cases; OK in older guns
246	Ideal 429421	3.5	630	OK in Russian cases; OK in older guns
246	Ideal 429421	4.0	705	OK in Russian cases; OK in older guns
246	Ideal 429421	5.0	820
254	Ideal 431244 GC	3.5	615	OK in Russian cases; OK in older guns
254	Ideal 431244 GC	4.0	675	OK in Russian cases; OK in older guns
254	Ideal 431244 GC	5.0	805
254	Ideal 431244 GC	6.0	890
Moderate Pressure CAUTION - Although the author has termed these "moderate pressure loads", some of these will run in the 20,000 psi range. They are safe in the author's guns but may be excessive in others. Start 15% below listed maximums.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady lead semiwadcutter hollowpoint	5.0	802
245	Lyman 429383 roundnose	4.8	761	same as 1908 factory loads
245	Lyman 429383 roundnose	5.3	838
New Century Test gun was a Smith & Wesson New Century Target with a 6 1/2-inch barrel. Winchester cases and CCI 300 primers used throughout. Temperature during testing was 55 degrees Fahrenheit. All data has been tested in laboratories and is within SAAMI maximum pressure limits of 15,500 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	4.8	750	starting load
200	Round Nose Flat Point	5.5	920	maximum load
225	Round Nose Flat Point	4.5	780	starting load
225	Round Nose Flat Point	4.8	815	maximum load
Cowboy Loads (Oregon Trail Bullet Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.425; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Semi Wad Cutter	4.0	722	starting load
240	Semi Wad Cutter	4.4	790	maximum load
Standard Loads (Oregon Trail Bullet Handgun Data) test gun: Smith & Wesson 6", WLP; OAL: 1.480; do not exceed maximum loads; never reduce stated overall lengths

.44-06

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	Ohaus No. 44-215-S GC	5.0	893	energy (fp): 395; light load
240	Lyman No. 429250 GC	5.0	868	energy (fp): 402; poor accuracy
Velocities are five feet, instrumental, as measured from muzzle to midpoint of screens. Temperature - 65 to 75 degrees F. Chronograph used was Model 200 Chronograph Specialists. Primers were CCI 350 Large Pistol Magnum. Cast bullet weight given is sized, lubed, and with gas check. Bullets cast of linotype metal and sized to .430 inch. These loads were safe in writer's revolver but may not be in another gun. Approach maximum loads with caution.

.44-45

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	SWC	4.0	690	best accuracy, inch-plus groups, 25 yds.
185	SWC	4.0	739	Kapok over powder, good accuracy
230	SWC	4.0	601	good
230	SWC	4.0	664	Kapok over powder, good
250	SWC	4.0	644	good
Fired in 6 1/2-inch barrel Herter .44 Magnum revolver. Groups were fired from 25 yards from a rest with a 1.3X scope. Velocities are instrumental at 7.5 feet, measured with Model 10 Oehler chronograph, 5-foot screen spacing.

.45 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Remington FMJ	4.5	775	primer: F 150; O.A. Ctg. Lgt.: 1.175; case expansion moderate; accurate
185	Sierra JHP	5.0	886	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion normal
200	Speer JHP	4.8	815	primer: F 150; O.A. Ctg. Lgt.: 1.18; case expansion normal
185	Speer SWC	3.5	686	primer: F 150; O.A. Ctg. Lgt.: 1.115 case expansion light; very accurate light target load
185	Speer SWC	3.8	738	primer: F 150; O.A. Ctg. Lgt.: 1.115; case expansion light; accurate target load
190	Shur-X SWC	4.0	790	primer: F 150; O.A. Ctg. Lgt.: 1.25; case expansion normal
200	Shur-X SWC	3.5	683	primer: F 150; O.A. Ctg. Lgt.: 1.26; case expansion light; very accurate
200	Hornady SWC	4.5	832	primer: F 150; O.A. Ctg. Lgt.: 1.225; case expansion normal; fourth most accurate load tested
210	RCBS 45-201-KT SWC	4.0	785	primer: F 150; O.A. Ctg. Lgt.: 1.245; case expansion moderate; accurate
215	Markell SWC	4.5	852	primer: F 150; O.A. Ctg. Lgt.: 1.21; case expansion normal
230	Speer RNL	4.0	724	primer: F 150; O.A. Ctg. Lgt.: 1.272; case expansion normal; very accurate
JHP = jacketed hollowpoint; FMJ = full metal jacket; SWC = semiwadcutter; RNL = roundnose lead. Test Guns: Colt Gold Cup National Match and Colt service automatics. Ruger Convertible revolver with 4-5/8-inch barrel used for velocity comparisons. Federal cases used throughout tests. Velocities chronographed with Oehler Model 31 Chronotach and Model 51 electronic screens; velocities taken at ten feet; screen spacing, ten feet. Accuracy Goals: (five-shot groups - sandbag rest) - one inch at fifty feet; three to four inches at fifty yards.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast Lead	6.9	1,175	min. OAL (inches): 1.270; 19,400 psi
180	LWC	5.4	985	min. OAL (inches): 1.190; 15,800 psi
185	JHP	6.7	995	min. OAL (inches): 1.275; 19,400 psi
200	LSW (target)	4.0	790	min. OAL (inches): 1.190; 9,800 psi
200	JHP	6.0	960	min. OAL (inches): 1.175; 19,400 psi
230	L (target)	4.0	810	min. OAL (inches): 1.190; 13,900 psi
230	JHP	5.4	865	min. OAL (inches): 1.230; 19,200 psi
230	FMC	5.0	905	min. OAL (inches): 1.190; 16,200 psi
240	JHP	5.0	810	min. OAL (inches): 1.210; 18,900 psi
260	JHP	4.5	725	min. OAL (inches): 1.210; 19,400 psi
Alliant Pistol & Revolver Data primer: Federal 150; bbl length: 5.0; do not exceed powder weight shown
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	4.6	807	OAL: 1.190"
185	Speer GDHP	6.4	986	OAL: 1.200"
200	Speer GDHP	5.8	934	OAL: 1.200"
230	Speer TMJ RN	5.7	840	OAL: 1.260"
Alliant Reloaders Guide 2008 primer: CCI 300; case: Speer (except where otherwise specified in remarks); NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer SWC/TMJ Match	5.3	801	rounds per pound: 1,321
200	Hornady lead C/T	4.5	799	rounds per pound: 1,556
230	Oregon Trail cast RN	5.0	877	rounds per pound: 1,400
Economical Midrange Loads firearm used: Kimber Classic Custom; primer: Federal 150; case: Starline; barrel length: 5"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady jacketed HP	4.4	700
185	Hornady jacketed HP	4.7	750
185	Hornady jacketed HP	5.1	800
185	Hornady jacketed HP	5.4	850
185	Hornady jacketed HP	5.8	900
185	Hornady jacketed HP	6.1	950
185	Hornady jacketed HP	6.5	1,000
Hornady Jacketed Bullets Data Hornady 185-grain jacketed HP bullet seated .202; Remington case; Federal 150 primer
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Rocky Mountain Reloading FMJ-RN	4.8	758
230	Rocky Mountain Reloading FMJ-RN	5.2	821
230	Rocky Mountain Reloading FMJ-RN	5.5	865
in a Ruger SR1911 Warning! Gun: Ruger SR1911; Barrel Length: 5 inches; Case: Starline; Primer: CCI 300; Bullet Diameter: .451 and .452 inch; Maximum Case Length: .898 inch; Trim-to Length: .893 inch; COAL for X-Treme Plated SWC: 1.240 inches; COAL for Rocky Mtn. Reloading FMJ-RN: 1.210 inches;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Sierra Match	5.7	734	Ultra GDP II; group (inches): 2.0
185	Sierra Match	5.7	870	Desert Warrior; group (inches): 1.25
185	Sierra Match	5.7	829	Super Match II; group (inches): 2.25
230	Sierra FMJ	5.5	759	Ultra GDP II; group (inches): 1.5
230	Sierra FMJ	5.5	880	Desert Warrior; group (inches): 1.75
230	Sierra FMJ	5.5	860	Super Match II; group (inches): 2.5
in three Kimbers Kimber range results in an Ultra GDP II, a Desert Warrior and a Super Match II.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Lead	6.6	1120	start load; min OAL: 1.270
155	Lead	6.9	1175	never exceed; min OAL: 1.270; 19,400 psi
180	Lead	5.4	985	start load; min OAL: 1.190
180	Lead	5.4	985	never exceed; min OAL: 1.190; 15,800 psi
185	Jacketed	6.4	950	start load; min OAL: 1.275
185	Jacketed	6.7	995	never exceed; min OAL: 1.275; 19,400 psi
200	Jacketed	5.7	915	start load; min OAL: 1.175
200	Jacketed	6.0	960	never exceed; min OAL: 1.175; 19,400 psi
200	Lead	4.0	790	start load; min OAL: 1.190
200	Lead	4.0	790	never exceed; min OAL: 1.190; 9,800 psi
230	Jacketed	5.0	905	start load; min OAL: 1.190
230	Jacketed	5.0	905	never exceed; min OAL: 1.190; 16,200 psi
230	Lead	4.0	810	start load; min OAL: 1.190
230	Lead	4.0	810	never exceed; min OAL: 1.190; 13,900 psi
240	Jacketed	4.9	794	start load; min OAL: 1.210
240	Jacketed	5.0	810	never exceed; min OAL: 1.210; 18,900 psi
260	Jacketed	4.3	690	start load; min OAL: 1.210
260	Jacketed	4.5	725	never exceed; min OAL: 1.210; 19,400 psi
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast #452389	3.5	660	sugg. start load; 6,000 cup
185	Cast #452389	5.0	890	max load; 12,300 cup
195	Cast #452488	3.5	680	sugg. start load; 7,700 cup
195	Cast #452488	5.0	895	max load; 13,900 cup
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .895"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used size to .450" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove diameter: .450". NOTE: More Lyman cast bullet data available under .45 ACP Cast Bullet Data Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Remington Jacketed SWC/FMJ	3.5	678	sugg. start load; 1.135" OAL; 8,000 cup
185	Remington Jacketed SWC/FMJ	5.6	975	max load; 1.135" OAL; 16,600 cup; potentially most accurate load
185	Hornady Jacketed HP/XTP	3.5	610	sugg. start load; 1.175" OAL; 7,300 cup
185	Hornady Jacketed HP/XTP	6.0	976	max load; 1.175" OAL; 18,000 cup
200	Speer Gold Dot Jacketed HP	3.4	604	sugg. start load; 1.178" OAL; 7,100 cup
200	Speer Gold Dot Jacketed HP	5.7	942	max load; 1.178" OAL; 17,800 cup; potentially most accurate load
225	Speer Jacketed HP	3.1	554	sugg. start load; 1.243" OAL; 7,300 cup
225	Speer Jacketed HP	5.3	840	max load; 1.243" OAL; 17,400 cup
230	Speer TMJ	3.8	662	sugg. start load; 1.275" OAL; 10,400 cup
230	Speer TMJ	5.3	878	max load; 1.275" OAL; 17,100 cup
Lyman Reloading Handbook 49th Edition cases: Remington, Federal; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 2; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Semi-wadcutter	4.6	807	maximum load
200	Speer Semi-wadcutter	4.2	744
230	Speer RN	5.1	844	maximum load
230	Speer RN	4.7	778
185	Speer TMJ Match	4.9	795	maximum load
185	Speer TMJ Match	4.5	770
200	Speer TMJ Combat	5.0	792	maximum load; developed for target velocity rather than at maximum pressure
200	Speer TMJ Combat	4.5	739	developed for target velocity rather than at maximum pressure
200	Speer Hollow Point	5.8	923	maximum load
200	Speer Hollow Point	5.2	841
225	Speer Hollow Point	5.6	845	maximum load
225	Speer Hollow Point	5.1	783
230	Speer TMJ	5.7	859	maximum load
230	Speer TMJ	5.2	791
260	Speer Hollow Point	5.2	788	maximum load
260	Speer Hollow Point	4.7	717
Speer Reloading Manual #11 gun: Colt Gov't. Model; barrel: 5"; twist: 1-16; cases: Speer; primers: CCI-300; maximum loads listed should be used with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	4.2	744	start charge
200	Speer LSWC	4.6	807	maximum charge
185	Speer TMJ Match SWC	4.5	770	start charge
185	Speer TMJ Match SWC	4.9	795	maximum charge
185	Speer GDHP or TMJ FN	5.7	874	start charge
185	Speer GDHP or TMJ FN	6.4	986	maximum charge
200	Speer TMJ FN, TMJ Match SWC or GDHP	5.2	845	start charge
200	Speer TMJ FN, TMJ Match SWC or GDHP	5.8	934	maximum charge
225	Speer Colt JHP	5.0	782	start charge
225	Speer Colt JHP	5.6	856	maximum charge
230	Speer TMJ RN	5.2	779	start charge
230	Speer TMJ RN	5.7	840	maximum charge
230	Speer GDHP SB or GDHP	4.5	742	start charge
230	Speer GDHP SB or GDHP	5.0	812	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady HP-XTP or FMJ SWC	5.4	843
185	Hornady HP-XTP or FMJ SWC	5.9	921
185	Hornady HP-XTP or FMJ SWC	6.6	998	maximum load
Using 185 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.225"; FMJ SWC COAL: 1.135"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady HP-XTP	5.0	800
200	Hornady HP-XTP	5.4	843
200	Hornady HP-XTP	5.7	886	maximum load
200	Hornady SWC or L-C/T	4.6	796
200	Hornady SWC or L-C/T	5.0	843
200	Hornady SWC or L-C/T	5.4	890
200	Hornady SWC or L-C/T	5.7	937maximum load
Using 200 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP COAL: 1.230"; SWC COAL: 1.200"; L-C/T COAL: 1.225"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady LRN	4.4	754
230	Hornady LRN	4.7	798
230	Hornady LRN	5.1	842
230	Hornady LRN	5.5	886	maximum load
Using 230 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger SR1911; barrel length: 5 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: .451"; HP-XTP and HAP COAL: 1.230"; LRN COAL: 1.245"; maximum COAL: 1.275"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Nosler Custom Competition JHP	5.4	840	max
185	Nosler Custom Competition JHP	4.9	780
185	Nosler Custom Competition JHP	4.4	720	most accurate load tested
230	Nosler Sporting Handgun Pistol FMJ or JHP	5.1	790	max; most accurate load tested
230	Nosler Sporting Handgun Pistol FMJ or JHP	4.6	730
230	Nosler Sporting Handgun Pistol FMJ or JHP	4.1	670
Using Nosler Bullets Handgun; case: Winchester; primer: Fed. 150; barrel length/make: 5" Douglas; twist: 1-16"; bullets: 185 GR Nosler Custom Competition JHP or 230 GR Nosler Sporting Handgun Pistol FMJ or JHP; OACL: 1.200"; maximum OACL: 1.275". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cutting Edge Raptor HP	5.5	942
150	Cutting Edge Raptor HP	6.0	1014
150	Cutting Edge Raptor HP	6.5	1095
+P (23,000 psi) (using Cutting Edge bullets) Warning! A Ruger SR1911 with a 5-inch barrel was used to test-fire these loads. Starline cases and Remington 2 1/2 Large Pistol primers were used throughout. Bullet diameter: .451/.452 inch; maximum case length: .898 inch; trim-to length: .893 inch. Overall loaded length: 1.215 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
160	Saeco (Redding) #063	5.8	980	sugg. start load; 13,800 cup
160	Saeco (Redding) #063	6.4	1048	max load; 16,500 cup; potentially most accurate load
170	Saeco (Redding) #062	5.8	971	sugg. start load; 13,600 cup
170	Saeco (Redding) #062	6.4	1048	max load; 17,000 cup
160 & 170 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 160 grain OAL: 1.255"; 170 grain OAL: 1.250" (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lyman #452374 HP	5.5	955	sugg. start load; 14,300 cup
180	Lyman #452374 HP	6.1	1047	max load; 17,700 cup; potentially most accurate load
185	RCBS #45-185-SWC-BB	5.0	914	sugg. start load; 13,900 cup
185	RCBS #45-185-SWC-BB	5.5	968	max load; 17,700 cup
180 & 185 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 180 grain OAL: 1.190"; 185 grain OAL: 1.180" (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lyman #452460	3.5	645	sugg. start load; 6,900 cup
200	Lyman #452460	5.6	869	max load; 15,700 cup
200	Lyman #452630	4.9	840	sugg. start load; 12,900 cup
200	Lyman #452630	6.0	909	max load; 17,000 cup; potentially most accurate load
200 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; Lyman #452460 OAL: 1.161"; Lyman #452630 OAL: 1.235" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
215	Saeco (Redding) #058	5.0	870	sugg. start load; 14,100 cup
215	Saeco (Redding) #058	5.5	930	max load; 17,700 cup
230	Lee #TL452-230-TC	4.6	800	sugg. start load; 14,300 cup
230	Lee #TL452-230-TC	5.1	876	max load; 17,800 cup
215 & 230 GR (Lyman Cast Bullet Data) cases: Federal; trim-to length: .888"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; 215 grain OAL: 1.185"; 230 grain OAL: 1.170" (Lyman Cast Bullet Handbook 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Lyman #452374	4.0	680	sugg. start load; 10,100 cup
225	Lyman #452374	5.0	815	max load; 14,400 cup
225 GR (Lyman Cast Bullet Data) cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used; Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"; OAL: 1.272" (Lyman Cast Bullet Manual 4th Edition)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Carroll SWC	4.3	802	case: W-W; primer: WLP; moderate
185	Carroll SWC	4.8	862	case: W-W; primer: WLP; normal
193	Metallic #68 SWC	4.5	812	case: W-W; primer: WLP; normal
200	Carroll SWC	4.5	831	case: W-W; primer: WLP; normal
225	Carroll FN	4.8	827	case: Speer; primer: WLP; near max; very accurate
230	Bull-X FN	4.8	828	case: W-W; primer: WLP; maximum
230	Carroll RN	4.5	806	case: Speer; primer: WLP; near max
230	Carroll RN	4.8	827	case: Speer; primer: WLP; maximum
Cast Bullets 5" barrel. Test gun was Colt Double Eagle with five-inch barrel. All groups five shots each from sandbag rest; 20-yard indoor range.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Round Nose Flat Point	3.9	735
IPSC Heavy-Bullet Major Loads + P (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; OAL: 1.168; use these loads exactly as listed; these are MAXIMUM loads - do not exceed charges, or shorten overall lengths; do not fire these loads in pre-1950 revolvers; for use in pistols with fully supported chambers only
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Semi Wad Cutter	5.0	905
230	Round Nose	4.5	819
IPSC Major Loads (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; 200 gr Semi Wad Cutter OAL: 1.250; 230 gr Round Nose OAL: 1.260; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Semi Wad Cutter	3.6	701	25 yard line
200	Semi Wad Cutter	4.2	794	50 yard line
NRA Bullseye Loads (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; OAL: 1.250; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Semi Wad Cutter	4.2	840	starting load
180	Semi Wad Cutter	5.2	983	maximum load
200	Semi Wad Cutter	4.2	794	starting load
200	Semi Wad Cutter	5.2	933	maximum load
225	Flat Point	4.5	800	starting load
225	Flat Point	5.1	865	maximum load
230	Round Nose	4.5	819	starting load
230	Round Nose	5.1	887	maximum load
Standard Loads (Oregon Trail Handgun Data) test gun: Entreprise 1911 frame, 5" Bar-Sto barrel, WLP; 180 and 200 gr Semi Wad Cutter OAL: 1.250; 225 Flat Point OAL: 1.205; 230 Round Nose OAL: 1.260; do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Speer Match TMJ SWC	4.9	759	sandbag rest group (inches): 2.54
200	Speer Gold Dot hollowpoint	5.6	848	sandbag rest group (inches): 1.86
Automatic in a Colt Gold Cup National Match All loads used Remington cases and Federal Large Pistol Match primers. Group size is the average of five shots at 25 yards. Velocity measured at 10 feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 452374 RN	5.0	797
223	RCBS 45-230-CM RN/FP	5.0	808
227	Oregon Trail RN	5.0	790
230	Zero Bullet FMJ	5.0	795
Ball Duplication Loads in a Colt Loads were fired in a Colt 1911A1 5-inch barrel. Handgun was a new reproduction of an original version and was manufactured in the first seven years of the twenty-first century. All chronograph readings are for five shots with the start screen at approximately 6 feet. Bullets cast were poured of straight Linotype, which is why their actual listed weights do not coincide with catalog weights, sized .451 inch and lubed with SPG. Oregon Trail commercially cast bullets were sized .452 inch and lubed with its proprietary lubricant. All primers were Winchester Large Pistol. Cases were not sorted by brand. Handloads fired in the Model 1911 autoloader were taper crimped.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230-CM RN/FP	5.0	816
227	Oregon Trail RN	5.0	801
230	Zero Bullet FMJ	5.0	813
Ball Duplication Loads in an S&W Loads were fired in an S&W M1917 5.5-inch barrel. Handgun was a new reproduction of an original version and was manufactured in the first seven years of the twenty-first century. All chronograph readings are for five shots with the start screen at approximately 6 feet. Bullets cast were poured of straight Linotype, which is why their actual listed weights do not coincide with catalog weights, sized .451 inch and lubed with SPG. Oregon Trail commercially cast bullets were sized .452 inch and lubed with its proprietary lubricant. All primers were Winchester Large Pistol. Cases were not sorted by brand. Handloads fired in the Model 1917 revolver were roll crimped. If velocities for the Oregon Trail bullets in the revolver seem slightly high, it is most likely because they had to be seated deeper than the same bullets when loaded for autoloaders in order to apply a roll crimp over the front edge of the driving band.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	3.5	645	sugg. start load; 1.161" OAL; 6,900 cup
200	Cast #452460	5.6	869	max load; 1.161" OAL; 15,700 cup
200	Cast #452630	4.9	840	sugg. start load; 1.235" OAL; 12,900 cup
200	Cast #452630	6.0	909	max load; 1.235" OAL; 17,000 cup; potentially most accurate load
225	Cast #452374	4.0	680	sugg. start load; 1.272" OAL; 10,100 cup
225	Cast #452374	5.0	815	max load; 1.272" OAL; 14,400 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Remington (except where otherwise specified in remarks); trim-to length: .888"; primers: Remington 2 1/2 (except where otherwise specified in remarks); primer size: Large Pistol; Lyman shell holder: No. 2; cast bullets used sized to .451" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .450"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 452374 cast RN	5.0	789	variation (fps): 39; functioned perfectly
225	Oregon Trail cast RN	5.0	824	variation (fps): 16
Colt Model 1911, 5.0-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype; cast bullets lubed with SPG; sizing diameter: .452 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass by Federal
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
223	RCBS 45-230-CM RN/FP	4.8	852	poor groups
230	Oregon Trail roundnose	4.8	848	adequate groups, 3 inches or so
Colt Model 1911A1 (new) (Autoloading Pistol Loads) 5-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .452 inch;
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 452374 cast RN	5.0	802	variation (fps): 32; best load this gun
225	Oregon Trail cast RN	5.0	817	variation (fps): 5
Colt Model 1917, 5.5-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype; cast bullets lubed with SPG; sizing diameter: .452 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass by Federal
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
193		5.0	840
230		4.2	800
200	Speer Lead	4.0	811
200	Speer Lead	3.5	727
Maximum loads given here should be approached with CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Sierra FPJ Match	5.0	780
Loads were fired from a 5-inch barreled Kimber Model 1911 Custom Classic. Starline cases and Federal Gold Medal Match 150 primers were used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Federal/Sierra JHP	5.0	835	primer: Rem. 2 1/2; group size: 1.65; most accurate
185	Federal/ Sierra JHP	5.7	919	primer: Rem. 2 1/2; group size: 2.36; maximum - do not increase
in a Browning BDA 4.4-inch barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Federal/Sierra JHP	5.0	857	primer: Rem. 2 1/2; group size: 2.55; second most accurate
185	Federal/Sierra JHP	5.7	917	primer: Rem. 2 1/2; group size: 3.88; maximum - do not increase
in a Heckler & Koch P9S 4-inch polygonal-rifled barrel. Average of two or more five-shot groups for handloads. All groups shot at 25 yards from rest. All handloads in Federal brass. Oehler Model 32/61 Chronotach/Skyscreen System. Average temperature 32 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer SWC-TMJ Match	4.8	754	very accurate
200	Speer SWC-TMJ Match	5.3	801
230	Nosler FMJ	5.0	804	accurate
230	Speer FMJ	5.5	831	maximum: accurate
200	Hornady lead C/T	4.5	799	very accurate
200	Hornady lead C/T	5.0	857	some lead fouling
230	Lazer cast roundnose BB	5.0	877
in a Kimber Custom Classic Warning! Barrel length: 5 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer SWC-TMJ Match	4.8	742
200	Speer SWC-TMJ Match	5.3	815
230	Nosler FMJ	5.0	829
230	Speer FMJ	5.5	839
200	Hornady lead C/T	4.5	760
200	Hornady lead C/T	5.0	848	some lead fouling
230	Lazer cast roundnose BB	5.0	860
in an S&W Model 625-6 Warning! Barrel length: 4 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Bull-X SWC	3.5	701	case: Rem. primer: 300
200	Bull-X SWC	4.0	762	case: Rem. primer: 300
Light Target Loads Warning! Notes These loads were developed in a custom Colt Gold Cup with a Heinie 5-inch barrel. They usually require that a lighter than standard recoil spring be used for reliable functioning of various autoloading pistols.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady lead C/T	4.5	776	overall loaded length (inches): 1.202
200	Hornady lead C/T	5.0	860	overall loaded length (inches): 1.202
200	Laser Cast SWC	4.5	839	overall loaded length (inches): 1.240
200	Laser Cast SWC	5.0	895	overall loaded length (inches): 1.240
200	Laser Cast SWC	5.5	959	overall loaded length (inches): 1.240
200	Laser Cast SWC	6.3	1046	overall loaded length (inches): 1.240
200	Montana/RCBS 45-201-SWC	4.5	845	overall loaded length (inches): 1.239
200	Montana/RCBS 45-201-SWC	5.5	909	overall loaded length (inches): 1.239
200	Montana/RCBS 45-201-SWC	6.3	1047	overall loaded length (inches): 1.239
200	Montana/Lyman 452460	4.5	844	overall loaded length (inches): 1.161
200	Montana/Lyman 452460	6.3	1035	overall loaded length (inches): 1.161
200	Hornady FMJ-C/T	5.0	798	overall loaded length (inches): 1.245
200	Hornady FMJ-C/T	6.0	965	overall loaded length (inches): 1.245
200	Hornady HP/XTP	5.0	798	overall loaded length (inches): 1.230
200	Hornady HP/XTP	6.0	960	overall loaded length (inches): 1.230
200	Sierra FPJ Match	5.0	780	overall loaded length (inches): 1.155
200	Sierra FPJ Match	6.0	949	overall loaded length (inches): 1.155
200	Speer Gold Dot hollowpoint	5.0	802	overall loaded length (inches): 1.200
200	Speer Gold Dot hollowpoint	6.0	972	overall loaded length (inches): 1.200
200	Speer SWC TMJ	5.0	802	overall loaded length (inches): 1.270
200	Speer SWC TMJ	6.0	934	overall loaded length (inches): 1.270
200	Speer Jacketed HP	5.0	811	overall loaded length (inches): 1.155
200	Speer Jacketed HP	6.0	970	overall loaded length (inches): 1.155
A Kimber Model 1911 Classic Custom Target with a 5-inch barrel (1-in-16-inch twist) was used to fire all loads. Starline cases and Federal Gold Medal Match 150 primers were used throughout. Maximum case length: .898 inch; trim length: .888 inch. Maximum overall cartridge length: 1.275 inches; minimum overall cartridge length: 1.190 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Nosler FMJ-RN	5.0	810	mil spec; overall loaded length (inches): 1.255
Remington Enhanced Model 1911 R1 All loads used Federal Gold Medal Match 150 primers and Starline cases. Minimum cartridge OAL: 1.190 inches; maximum cartridge OAL: 1.275 inches; maximum case length: .898 inch; and trim length: .888 inch. Temperature was 33 degrees Fahrenheit during testing.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
220	Lyman 452374 cast RN	5.0	754	variation (fps): 95; all bullets tumbled
225	Oregon Trail cast RN	5.0	765	variation (fps): 66
Smith & Wesson Model 1917, 5.5-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype; cast bullets lubed with SPG; sizing diameter: .452 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass by Federal
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Bull-X SWC	5.1	889	case: Rem. primer: WLP
USPSA/IPSC Major-Power Match Loads Bullets in all are cast. Handgun used was a custom Para-Ordnance with a 5-inch Wilson barrel.

.45 Auto Rim

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lead	4.9	906	start load; min OAL: 1.190
180	Lead	4.9	906	never exceed; min OAL: 1.190; 13,430 cup
200	Lead	3.6	727	start load; min OAL: 1.190
200	Lead	3.6	727	never exceed; min OAL: 1.190; 8,330 cup
230	Jacketed	4.5	833	start load; min OAL: 1.190
230	Jacketed	4.5	833	never exceed; min OAL: 1.190; 13,770 cup
230	Lead	3.6	745	start load; min OAL: 1.190
230	Lead	3.6	745	never exceed; min OAL: 1.190; 11,815 cup
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Cast #452389	3.0	505	sugg. start load
185	Cast #452389	4.8	780	max load
238	Cast #452423	3.0	500	sugg. start load
238	Cast #452423	4.5	720	max load
Lyman Cast Bullet Handbook cases: Remington; trim-to length: .894"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used size to .451" dia.; firearm used: Smith & Wesson Model 25 (except where otherwise specified in remarks); barrel length: 4 1/2 and 6 1/2"; twist: 1-16"; groove diameter: .451". NOTE: More Lyman cast bullet data available under .45 Auto Rim Lyman Reloading Handbook 49th Edition
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady Jacketed HP/XTP	4.6	722	sugg. start load; 1.236" OAL; 8,600 cup
185	Hornady Jacketed HP/XTP	5.8	915	max load; 1.236" OAL; 14,800 cup
200	Speer Jacketed GDHP	4.0	614	sugg. start load; 1.180" OAL; 7,800 cup
200	Speer Jacketed GDHP	5.4	838	max load; 1.180" OAL; 13,700 cup
200	Cast #452460	3.0	510	sugg. start load; 1.161" OAL
200	Cast #452460	4.7	775	max load; 1.161" OAL; potentially most accurate load
225	Cast #452374	3.0	475	sugg. start load; 1.265" OAL
225	Cast #452374	4.5	690	max load; 1.265" OAL
Lyman Reloading Handbook 49th Edition cases: Remington; trim-to length: .888"; primers: Remington 2 1/2; primer size: Large Pistol; Lyman shell holder: No. 14A; cast bullets used sized to .451" dia.; firearm used: Universal Receiver, Smith & Wesson Model 25; barrel length: Universal Receiver - 4 1/2", Model 25 - 6 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	4.1	667	start charge
200	Speer LSWC	4.6	745	maximum charge
230	Speer LRN	4.0	627	start charge
230	Speer LRN	4.5	696	maximum charge
200	Speer GDHP	4.4	699	start charge
200	Speer GDHP	4.9	775	maximum charge
230	Speer GDHP, GDHP SB or 225 GR Colt JHP	5.0	768	start charge
230	Speer GDHP, GDHP SB or 225 GR Colt JHP	5.5	841	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #8; cart. case: Remington; primer: CCI 300; test firearm: S&W Model 25-2; barrel length: 6.5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady HP-XTP or FMJ SWC	4.6	710
185	Hornady HP-XTP or FMJ SWC	4.9	761
185	Hornady HP-XTP or FMJ SWC	5.3	822
185	Hornady HP-XTP or FMJ SWC	5.7	882
185	Hornady HP-XTP or FMJ SWC	6.1	939
185	Hornady HP-XTP or FMJ SWC	6.4	1001	maximum load
Using Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Colt New Service .45 ACP; barrel length: 5 1/2"; case: Starline; primer: Federal 150; bullet diameter: .451"; HP-XTP COAL: 1.220"; FMJ SWC COAL: 1.135"; maximum COAL: 1.220"; maximum case length: .898"; trim to length: .888".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady swaged lead C/T	4.5	766
230	Oregon Trail cast roundnose	5.0	864
240	Hensley & Gibbs Keith semiwadcutter	5.0	829
All the velocities were obtained from a Model 625-6 with a 4-inch barrel, except where noted with a 6 1/2-inch barreled S&W Model 25-2. For reference, the 4-inch barrel was commonly producing around 10 to 30 fps less velocity than the 6 1/2-inch barrel. Starline cases and Federal 150 Gold Medal primers were used throughout. Maximum case length: .898 inch; trim-to length: .888 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Speer FMJ	4.7	667	diameter: 0.451 in.; excellent target load
in a Colt Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Speer FMJ	4.7	655	diameter: 0.451 in.; excellent target load
in a Webley Velocities represent five-shot averages taken ten feet from the muzzles of the test revolvers and measured on an Oehler Model 33 Chronotach. Colt Model 17 barrel, 5 1/2 inches, Webley Mark VI barrel, 6 inches. Range temperature, 87 degrees F. No wind. CCI 300 primers used with all loads. Five of every type of cast bullet used in the range tests were checked on a Saeco hardness tester. Average hardness level of alloy, 6 1/2.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady JHP	5.7	1,000	Primer: Fed. 150; ME: 411; very accurate - excellent hunting/defense load
200	Speer JHP	5.3	921	Primer: Fed. 150; ME: 374
210	Winchester SWC-L	4.5	813	Primer: Fed. 150; ME: 307; good accuracy
All loads in Remington brass. Velocities taken on an Oehler M-10 Chronograph; 7 1/2 feet instrumental converted to muzzle velocity. Average temperature, 66 degrees. Test gun was an S&W M1917 with 5 1/2-inch barrel.

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Speer SWC	6.5	868
250	Markell SWC	6.0	848	Good accurate standard load
Handloader Issue #54
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	JMHP	6.0	870	min. OAL (inches): 1.55; cup x1000: 11.8
250	L	5.4	805	min. OAL (inches): 1.55; cup x1000: 11.8
300	HP/XTP	5.0	605	min. OAL (inches): 1.58; cup x1000: 12.4
Alliant Data Primer: Win WLP. Bbl length: 7.3. Powder charge weights listed are maximum. Maximum powder charge should be reduced by 10% to establish a minimum or starting powder charge.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	7.5	988	OAL: 1.515"
250	Speer LSWC	7.0	879	OAL: 1.600"
200	Speer GDHP	7.9	994	OAL: 1.555"
230	Speer GDHP	7.1	890	OAL: 1.600"
260	Speer JHP	7.1	841	OAL: 1.590"
Alliant Reloaders Guide 2008 - Pistol/Revolver primer: CCI 300; case: Winchester; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	RCBS mould #82308	6.0	815
Alliant Reloaders Guide 2008 primer: CCI 300; case: Winchester; OAL: 1.585"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Cowboy Action Handgun Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Remington lead FP HB	5.5	822	rounds per pound: 1,273
Economical Midrange Loads firearm used: Ruger Blackhawk; suitable for all smokeless-era revolvers; primer: CCI 300; case: Starline; barrel length: 6" (except where otherwise specified in remarks)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	6.0	870	start load; min. OAL: 1.550
200	Jacketed	6.0	870	never exceed; min. OAL: 1.550; 11,800 cup
250	Lead	5.4	805	start load; min. OAL: 1.550
250	Lead	5.4	805	never exceed; min. OAL: 1.550; 11,800 cup
300	XTP	5.0	599	start load; min. OAL: 1.580
300	XTP	5.0	605	never exceed; min. OAL: 1.580; 12,400 cup
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	4.9	692	starting load
200	Round Nose Flat Point	6.2	874	maximum load
250	Round Nose Flat Point	4.7	659	starting load
250	Round Nose Flat Point	5.4	754	maximum load
Oregon Trail Handgun Data test gun: Vaquero 4 3/4", WLP; standard velocity/cowboy loads; these loads are safe for use in Colt SAA and clones; 200 grain OAL: 1.575; 250 grain OAL: 1.580; never reduce stated overall lengths; do not exceed maximum loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	Speer JHP	8.5	1005	start charge
260	Speer JHP	9.4	1064	maximum charge
(Ruger & Contender Only ) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	5.0	873	start charge
225	Speer CAV	6.0	990	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300; test firearm: Winchester Model 95 "Trapper"; barrel length: 16"; bullets: 225-grain Speer CAV or 230-grain Speer CM; bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer LSWC	6.5	835	start charge; firmly roll-crimp over the bullet shoulder for reliable performance
200	Speer LSWC	7.5	988	maximum charge; firmly roll-crimp over the bullet shoulder for reliable performance
250	Speer LSWC	6.3	810	start charge
250	Speer LSWC	7.0	879	maximum charge
225	Speer CAV or 230 CM	5.0	709	start charge
225	Speer CAV or 230 CM	6.0	815	maximum charge
200	Speer GDHP	7.4	920	start charge
200	Speer GDHP	7.9	994	maximum charge
230	Speer GDHP SB or GDHP or 225 JHP	6.4	825	start charge
230	Speer GDHP SB or GDHP or 225 JHP	7.1	890	maximum charge
260	Speer JHP	7.1	841	maximum charge; DO NOT REDUCE
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Ideal 454190	5.0	672	source: Lyman, 1958
255	Lyman 454424 (Keith)	5.0	672	source: Lyman, 1958
140 Collar Button
Wt.	Bullet	Charge	Velocity (FPS)	Remarks

230	RCBS 45-225RN	6.5	737	extreme spread (fps): 82
in a 4-3/4 Ruger Blackhawk Velocities represent five-shot averages measured ten feet from the muzzle of a Ruger Blackhawk by an Oehler Model 33 Chronotach. Ruger barrel was 4-3/4 inches long. Temperature was 60 degrees F. All loads made up with Remington cases and CCI Large Pistol primers. All bullets sized 0.452 inch. Each of the above combinations grouped three inches or less, extreme spread, at twenty-five yards with the test revolvers handheld and supported by sandbags.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
252	Lee SWC	6.0	852
in a Dan Wesson Model 45 (low velocity loads) Dan Wesson Model 45 eight-inch barrel. Primer: F150. All loads chronographed with an Oehler Model 33 Chronotach. Instrumental velocities corrected to muzzle velocities, fired at 30 to 50 degrees Fahrenheit. All groups fired in five-shot strings at 25 yards converted to minutes of angle. Federal cases used in all loads. None of the loads listed showed any signs of excessive pressures in the test revolver.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail RNFP .452-inch	5.0	715	overall loaded length (inches): 1.583
250	Oregon Trail RNFP .452-inch	6.0	818	overall loaded length (inches): 1.583
250	Oregon Trail RNFP .452-inch	6.5	870	overall loaded length (inches): 1.583
250	Oregon Trail RNFP .452-inch	7.0	920	overall loaded length (inches): 1.583
255	Lyman cast 454190	6.0	865	overall loaded length (inches): 1.580
in a Ruger New Model Blackhawk (Std. Pressure 14,000 psi) Loads fired in a 5 1/2-inch barrel. Starline cases and CCI 300 primers used throughout. Temperature during testing ranged from 70 to 92 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail RNFP	6.0	848
in a Turnbull Cowboy Classic/USFA CCI 300 primers and Starline cases used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail RNFP .454 inch	6.5	861
250	Oregon Trail FNFP .452 inch	6.5	855
250	Remington lead hollowbase	6.5	865
New Frontier Handloads All loads fired from a 4 3/4-inch barreled Colt New Frontier. Starline cases and CCI 300 primers used throughout.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady SWC or L-C/T	5.9	840
200	Hornady SWC or L-C/T	6.4	878
200	Hornady SWC or L-C/T	6.9	932
200	Hornady SWC or L-C/T	7.4	978
200	Hornady SWC or L-C/T	7.9	1022
maximum load
Using 200 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Hornady HP-XTP	5.7	702
250	Hornady HP-XTP	6.0	730
250	Hornady HP-XTP	6.3	758
250	Hornady HP-XTP	6.5	786	maximum load
using 250 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Ruger New Model (Bisley) Blackhawk; barrel length: 5 1/2 inches; case: Starline; primer: Winchester WLP; bullet diameter: .452"; COAL: 1.595"; maximum COAL: 1.600"; maximum case length: 1.285"; trim to length: 1.275";
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Round Nose Flat Point	4.9	816	starting load; OAL: 1.575
200	Round Nose Flat Point	6.2	1,058	maximum load; OAL: 1.575
250	Round Nose Flat Point	4.7	779	starting load; OAL: 1.580
250	Round Nose Flat Point	5.4	914	maximum load; OAL: 1.580
Cowboy Loads (Oregon Trail Rifle Data) test gun: Winchester 94AE 16 1/2", WLP; approach maximum loads with caution; these Cowboy loads are intended for modern rifles in good condition only! do not exceed maximum loads; never reduce stated overall lengths
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail Cast RNFP	6.0	848
Ruger New Vaquero All loads fired from the 4 5/8-inch barrel of a Ruger New Vaquero .45 Colt. Winchester cases and Federal 150 primers used throughout. Temperature during testing was 30 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Oregon Trail Laser-Cast RNFP	6.6	860
Traditional Handload Data All loads, fired from a 4 3/4-inch barreled USFA Pre-War SAA, produced between 850 and 870 fps average velocity and are thus listed at 860 fps to more or less duplicate traditional .45 Colt ballistics. Starline cases and CCI 300 Large Pistol primers were used throughout. Overall loaded length: 1.575 inches. Bullet diameter: .452 inch used herein (.454 inch suggested for guns with throats .454 or larger); maximum case length: 1.285 inches; trim-to case length: 1.275 inches.Traditional Handload Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Nosler	6.0	847	Federal 150 primers used; low recoil
Trapper Loads 155 Magnum primer used except where noted otherwise in remarks. Test arm was a USRAC Model 94 Trapper carbine with 16-inch barrel and one in 38 twist. All loads were chronographed on an Oehler Model 33 Chronotach. Instrumental velocities corrected to muzzle velocities at 30 to 60 degrees Fahrenheit. All groups fired in five-shot strings at 25 yards and converted to MOA. A Weaver K3 scope was used for all accuracy testing. Cast bullets were sized to .4515 inch, tempered at 450 degrees and lubed with LBT Magnum bullet lube. The Hornady JHP rifle bullet was sized to .4515 inch in a .450-inch Lee die. All cases were trimmed to 1.240 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Lead	5.0	775
200	Lead	6.5	950
200	Lead	7.9	1090
240	Lead	5.0	780
240	Lead	5.5	848
Standard loads for smokeless powder guns. W-W cases and primers, 5 1/2-inch Colt barrel.

.45 GAP / .45 G.A.P.

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Speer GDHP	6.1	1037
200	Speer GDHP	5.4	943
Alliant Reloaders Guide 2008 primer: CCI 500; case: Speer; OAL: 1.070"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Speer TMJ FN	5.7	981	start charge
185	Speer TMJ FN	6.4	1072	max charge
185	Speer GDHP	5.5	950	start charge
185	Speer GDHP	6.1	1037	max charge
200	Speer TMJ FN	5.1	886	start charge
200	Speer TMJ FN	5.6	964	max charge
200	Speer GDHP	4.9	859	start charge
200	Speer GDHP	5.4	943	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 0.760"; trim-to length: 0.750"; max cart. OAL: 1.137"; RCBS Shell Holder: #3; cart. case: Speer; primer: CCI 500; test firearm: Glock Model 37; barrel length: 4.5"; maximum loads should be used with CAUTION

.45 Smith & Wesson Schofield / .45 S&W Schofield

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	RCBS mould #82308	4.3	697
Alliant Reloaders Guide 2008 primer: CCI 300; case: Starline: OAL: 1.410"; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Cowboy Action Handgun Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	AA Limited conical	4.3	759	USFA
230	AA Limited conical	4.3	758	Colt SAA
233	RCBS 45-230-CM RN/FP	4.3	744	USFA
233	RCBS 45-230-CM RN/FP	4.3	748	Colt SAA
240	Redding/SAECO 954 FN/FP	4.0	698	USFA
240	Redding/SAECO 954 FN/FP	4.0	705	Colt SAA
250	Remington swaged hollowbase conical	4.0	660	USFA
250	Remington swaged hollowbase conical	4.0	678	Colt SAA
255	Hornady swaged flatbase RN/FP	4.0	692	USFA
255	Hornady swaged flatbase RN/FP	4.0	701	Colt SAA
In a USFA & a Colt SAA All chronographing done with start screen at approximately 6 feet. Chronograph figures are for five-round strings. All handloads used Starline brass and Winchester Large Pistol Primers. All bullets cast were poured of 1-20 (tin-to-lead) alloy, sized .454 inch and lubed with SPG. Commercial swaged bullets and AA Limited custom cast bullets were also .454 inch in diameter. Both handguns had 7 1/2-inch barrels
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Cast #452460	4.7	840	sugg. start load; 1.340" OAL; 9,300 cup; potentially most accurate load
200	Cast #452460	5.3	906	max load; 1.340" OAL; 10,800 cup
250	Cast #454190	4.2	743	sugg. start load; 1.390" OAL; 10,400 cup
250	Cast #454190	4.7	802	max load; 1.390" OAL; 11,900 cup
250	Cast #452664	4.2	720	sugg. start load; 1.390" OAL; 9,500 cup
250	Cast #452664	4.7	782	max load; 1.390" OAL; 11,300 cup
255	Cast #452424	4.2	706	sugg. start load; 1.460" OAL; 8,800 cup
255	Cast #452424	4.7	780	max load; 1.460" OAL; 11,500 cup
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: 1.095"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 14B; cast bullets used sized to .452" dia.; firearm used: Universal Receiver; barrel length: 7 1/2"; twist: 1-16"; groove dia.: .451"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	3.9	662	start charge
225	Speer CAV	4.3	697	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.090"; trim-to length: 1.080"; max cart. OAL: 1.430"; RCBS shell holder: #35; cart. case: Starline; primer: CCI 300; test firearm: Colt Single Action Army; barrel length: 5.5"; a 230-GR Speer CM can also be used for these loads; NOTE: these bullets were cast in RCBS moulds; maximum loads should be used with CAUTION

.455 Colt-Eley

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
205	Hensley & Gibbs 68 SWC	4.7	760	case expansion: normal; accuracy class: C
205	Hensley & Gibbs 68 SWC	5.0	799	case expansion: near max; accuracy class: A; highest velocity load
215	Markell Lead SWC	4.0	613	case expansion: moderate; accuracy class: C
250	Remington Lead RN	4.0	622	case expansion: normal; accuracy class: C
250	Remington Lead RN	5.0	673	case expansion: maximum; accuracy class: A
263	Ohaus 45-255K	4.5	600	case expansion: normal; accuracy class: A+; 3rd best accuracy
263	Ohaus 45-255K	5.0	684	case expansion: maximum; accuracy class: A
250	Hornady JHP	4.5	606	case expansion: normal; accuracy class: A; best accuracy with jacketed bullets
250	Hornady JHP	5.0	678	case expansion: maximum; accuracy class: B
Test revolver was Colt New Service with 5 1/2-inch barrel. All loads employed Dominion (Canadian) .455 Colt cases. Federal No. 150 Large Pistol primers used in all handloads. Oehler Model 31 Chronograph and Model 51 screens used to measure velocities. Velocities are instrumental, measured 8 feet from muzzle (not corrected to muzzle velocity). Lyman 3-die reloading set used to resize cases and seat bullets. The following accuracy classification system was used in these tests: A+ = 1-inch or less at 20 yards; A = 1 1/16 - 1 1/2 inches; B = 1 9/16 - 2 inches; C = 2 1/16 - 2 1/2 inches; D = Over 2 1/2 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
190	L457127	3.0	680	energy: 194
190	L457127	4.0	770	energy: 249
235	L454309	2.5	625	energy: 204
235	L454309	4.0	750	energy: 291
250	L454190	4.0	735	energy: 304
250	L454190	3.5	710	energy: 280
285	L457196	3.0	625	energy: 241
Handloader Issue 8
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
190		3.0	675
190		4.0	770
235		4.0	750
250		4.0	735
Mark II (P.O. Ackley Data) This has been, for a long time, the official British service revolver cartridge. It is quite similar to the .45 ACP from the standpoint of ballistics. However, it differs from the .45 ACP in that it is a rimmed cartridge. It has a thinner than the common rim, which hurts case life. (Handbook for Shooters & Reloaders/Vol. 1 - P.O. Ackley, 1962) NOTE: USE THIS DATA WITH EXTREME CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	RCBS 455-265-WEBLEY cast RN	3.4	611	variation (fps): 32; Linotype alloy; duplicates military ballistics
280	RCBS 455-265-WEBLEY cast RN	3.4	606	variation (fps): 28; 1-20 (tin-to-lead) alloy
255	Hornady swaged lead RN/FP	4.0	707	variation (fps): 39
Mark VI, 6.0-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype and 1-20 alloy as noted; cast bullets lubed with SPG; sizing diameter: .456 inch (lubed but not actually sized); Winchester Small Pistol and Large Pistol primers used throughout; brass by Hornady
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
260	RCBS 455-265-WEBLEY cast RN	3.4	616	variation (fps): 21; Linotype alloy; duplicates military ballistics
280	RCBS 455-265 WEBLEY cast RN	3.4	607	variation (fps): 24; 1-20 (tin-to-lead) alloy
255	Hornady swaged lead RN/FP	4.0	714	variation (fps): 19; best load this revolver
Hand Ejector No. 2, 6.5-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype and 1-20 alloy as noted; cast bullets lubed with SPG; sizing diameter: .456 inch (lubed but not actually sized); Winchester Small Pistol and Large Pistol primers used throughout; brass by Hornady

.10mm Auto

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Jacketed	6.5	1157	start load; min OAL: 1.250
155	Jacketed	6.7	1190	never exceed; min OAL: 1.250; 34,000 psi
170	Jacketed	6.0	1102	start load; min OAL: 1.250
170	Jacketed	6.2	1135	never exceed; min OAL: 1.250; 34,000 psi
180	Jacketed	5.9	1043	start load; min OAL: 1.250
180	Jacketed	6.4	1125	never exceed; min OAL: 1.250; 35,900 psi
190	Jacketed	5.9	981	start load; min OAL: 1.250
190	Jacketed	6.3	1050	never exceed; min OAL: 1.250; 35,500 psi
Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
150	Cast #401654	6.2	1205	sugg. start load; 1.240" OAL; 24,600 cup
150	Cast #401654	7.2	1336	max load; 1.240" OAL; 29,000 cup
175	Cast #401043	5.5	1069	sugg. start load; 1.260" OAL; 22,200 cup
175	Cast #401043	6.5	1199	max load; 1.260" OAL; 28,300 cup; potentially most accurate load
175	Cast #401638	5.9	1115	sugg. start load; 1.253" OAL; 23,500 cup
175	Cast #401638	6.4	1197	max load; 1.253" OAL; 28,400 cup; potentially most accurate load
Cast Bullets Lyman Reloading Manual 49th Edition cases: Norma; trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; cast bullets used sized to .401" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Nosler Jacketed HP	6.0	1163	sugg. start load; 1.225" OAL; 23,300 cup
135	Nosler Jacketed HP	7.3	1335	max load; 1.225" OAL; 29,300 cup
150	Sierra Jacketed HP	5.5	1049	sugg. start load; 20,900 cup
150	Sierra Jacketed HP	7.0	1263	max load; 28,500 cup
180	Sierra Jacketed HP	5.5	998	sugg. start load; 21,000 cup
180	Sierra Jacketed HP	6.5	1088	max load; 29,300 cup
190	Sierra Jacketed FP	4.7	879	sugg. start load; 18,400 cup
190	Sierra Jacketed FP	6.1	1088	max load; 28,200 cup
200	Hornady Jacketed HP	4.8	910	sugg. start load; 20,400 cup
200	Hornady Jacketed HP	5.7	1059	max load; 26,500 cup
Lyman Reloading Handbook 49th Edition cases: Norma (except where otherwise specified in remarks); trim-to length: .982"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .400"; 1.250" OAL (except where otherwise specified in remarks)

7.62mm Russian Nagant Revolver

	Wt.	Bullet	Charge	Velocity (FPS)	Remarks
	115	Cast	3.0	800	energy: 165; Lyman No. 311008
	Historical Notes - This military revolver cartridge was adopted by Russia in 1895 and used in the Nagant and Pieper revolvers, which were both seven-shot designs as opposed to the usual six. The Nagant design is unique in that when the hammer is cocked, the cylinder moves forward over the barrel shank to form a gas seal. The velocity gain from this arrangement is significant. However, no other revolver has ever used this ingenious, though complicated, system. General Comments - Russian Nagant revolvers have been sold in moderate quantities in the United States, but are more of a collector's item than a practical gun. Ammunition in shooting quantities is difficult to find, but can be made from 32-20 Winchester cases, which are very similar. Power and effectiveness are about the same as the 32 S&W Long. Most versions of the cartridge have the bullet seated completely inside the case. (Cartridges of the World 11th Edition)

9mm Largo

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ FN	4.4	979	start charge
115	Speer GDHP or TMJ FN	5.1	1093	maximum charge
Speer Reloading Manual #14 max. case length: 0.905"; trim-to length: 0.900"; max cart. OAL: 1.300"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: Star "Super"; barrel length: 5.25"; maximum loads should be used with CAUTION

9mm Luger / 9mm Parabellum (9x19)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
104	Lyman 356632	4.0	1128	overall loaded length (inches): 1.03
126	Lee 356-125-2R	3.5	936	overall loaded length (inches): 1.16
138	LBT .359 140 FN	3.0	861	overall loaded length (inches): 1.04
140	H&G 12B	2.8	875	overall loaded length (inches): 1.05; poor accuracy
145	Lyman 358212	3.0	869	overall loaded length (inches): 1.14
151	Redding/SAECO 910	3.0	867	overall loaded length (inches): 1.16; accurate
152	RCBS 9mm-147-FN	3.0	857	overall loaded length (inches): 1.13
160	Lyman 358311	2.8	853	overall loaded length (inches): 1.105; this bullet not suitable
Cast Bullet Loads Test gun was a SIG Sauer P226 9mm Luger with a 4.4-inch barrel. All velocities measured approximately 10 feet from muzzle using an Oehler Model 35P chronograph. Ambient temperatures varied from approximately 65 to 85 degrees Fahrenheit. Loads assembled using Winchester 9mm Luger brass and CCI 500 standard Small Pistol primers. No reduction in overall cartridge length (OAL) is recommended. Any change in components requires powder charge reduction. This data is intended for use only by persons experienced in the proper and safe practice of handloading ammunition.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	4.4	1238	overall loaded length (inches): 1.070
90	Hornady HP-XTP	5.5	1434	overall loaded length (inches): 1.070
115	Hornady HP-XTP	3.9	1090	overall loaded length (inches): 1.075
115	Hornady HP-XTP	4.6	1217	overall loaded length (inches): 1.075
90 & 115 GR Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer JHP	5.3	1,404	OAL (inches): 1.04; case expansion: normal
90	Sierra JHP	5.2	1,361	OAL (inches): 1.03; case expansion: normal
100	Speer JHP	5.0	1,287	OAL (inches): 1.075; case expansion: normal; accurate
115	Nosler FMJ	4.9	1,220	OAL (inches): 1.10; case expansion: maximum; accurate load
115	Sierra JHP	4.5	1,149	OAL (inches): 1.08; case expansion: moderate
115	Hornady JHP	4.8	1,190	OAL (inches): 1.11; case expansion: near max
115	Speer JHP	4.6	1,162	OAL (inches): 1.11; case expansion: normal
124	Hornady FMJ-FP	4.5	1,120	OAL (inches): 1.12; case expansion: near max
130	Sierra FMJ-RN	4.5	1,118	OAL (inches): 1.12; case expansion: maximum
(Jacketed) in a Ruger Ruger P-85, 4 1/2 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer JHP	5.3	1,384	OAL (inches): 1.04; case expansion: normal
90	Sierra JHP	5.2	1,353	OAL (inches): 1.03; case expansion: normal
100	Speer JHP	5.0	1,280	OAL (inches): 1.075; case expansion: normal
115	Nosler FMJ	4.9	1,207	OAL (inches): 1.10; case expansion: maximum; accurate
115	Sierra JHP	4.5	1,118	OAL (inches): 1.08; case expansion: moderate; very accurate
115	Hornady JHP	4.8	1,185	OAL (inches): 1.11; case expansion: near max
115	Speer JHP	4.6	1,148	OAL (inches): 1.11; case expansion: normal
124	Hornady FMJ-FP	4.6	1,105	OAL (inches): 1.12; case expansion: maximum
130	Sierra FMJ-RN	4.5	1,103	OAL (inches): 1.12; case expansion: maximum
(Jacketed) in a Beretta Beretta 92-F, 5 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
88	Speer JHP	5.3	1,404	OAL (inches): 1.04; case expansion: normal
90	Sierra JHP	5.2	1,361	OAL (inches): 1.03; case expansion: normal
100	Speer JHP	5.0	1,287	OAL (inches): 1.075; case expansion: normal; accurate
115	Nosler FMJ	4.9	1,220	OAL (inches): 1.10; case expansion: maximum; accurate load
115	Sierra JHP	4.5	1,149	OAL (inches): 1.08; case expansion: moderate
115	Hornady JHP	4.8	1,190	OAL (inches): 1.11; case expansion: near max
115	Speer JHP	4.6	1,162	OAL (inches): 1.11; case expansion: normal
124	Hornady FMJ-FP	4.5	1,120	OAL (inches): 1.12; case expansion: near max
130	Sierra FMJ-RN	4.5	1,118	OAL (inches): 1.12; case expansion: maximum
(Jacketed) in a Ruger Ruger P-85, 4 1/2 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
126	Magma SKU-9-125 roundnose cast (sized .3560)	3.5	978	OAL (inches): 1.11; case expansion: moderate
126	Magma SKU-9-125 roundnose cast (sized .3560)	3.8	1,012	OAL (inches): 1.11; case expansion: normal; accurate
126	Magma SKU-9-125 roundnose cast (sized .3560)	4.2	1,084	OAL (inches): 1.11; case expansion: near max
125	SAECO SWC Cast (Sized .355 inch)	3.8	995	OAL (inches): 1.09; case expansion: normal; best accuracy with SAECO bullets
130	Ohaus Cast (Sized .3565 inch)	3.7	1,003	OAL (inches): 1.13; case expansion: normal
130	Ohaus Cast (Sized .3565 inch)	3.8	1,020	OAL (inches): 1.13; case expansion: near max
124	Hornady Swaged (Sized .355 inch)	3.5	904	OAL (inches): 1.13; case expansion: moderate; very accurate target load
124	Hornady Swaged (Sized .355 inch)	3.8	955	OAL (inches): 1.13; case expansion: normal; best accuracy with Hornady bullets
124	Hornady Swaged (Sized .355 inch)	4.0	1,012	OAL (inches): 1.13; case expansion: normal; less velocity and accuracy when crimped
125	Alberts Swaged (Sized .3565 inch)	3.8	953	OAL (inches): 1.11; case expansion: normal
in a Beretta Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Beretta, 5-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady Swaged (Sized .355 inch)	3.8	962	OAL (inches): 1.13; normal; best accuracy with Hornady bullets
in a Ruger Federal cases and Federal 100 Small Pistol primers used for all loads. Velocities are instrumental at 10 feet from the muzzle, using Oehler Model 31 chronotach and Oehler Model 51 electronic screens with 10-foot spacing. Barrel lengths of test gun: Ruger, 4 1/2-inch barrel.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	FMJ	5.5	1295	min OAL (inches): 1.055; 31,400 psi
115	FMJ	5.0	1180	min OAL (inches): 1.12; 31,000 psi
125	FMJ	4.9	1155	min OAL (inches): 1.15; 32,000 psi
125	Lead	4.9	1165	min OAL (inches): 1.15; 32,100 psi
147	XTP	4.2	1010	min OAL (inches): 1.14; 32,900 psi
Alliant Reloaders Guide 2004 primer: Win. WSP; barrel length: 4"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP	4.7	1144	OAL: 1.125"
124	Speer GDHP	4.4	1059	OAL: 1.120"
Alliant Reloaders Guide 2008 primer: CCI 500; case: Speer; NOTE: All loads are maximum. Reduce by 10% to establish a starting charge weight. Alliant Pistol/Revolver Load Data
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Jacketed	5.4	1271	start load; min OAL: 1.055
95	Jacketed	5.5	1295	never exceed; min OAL: 1.055; 31,400 psi
115	Jacketed	5.0	1169	start load; min OAL: 1.120
115	Jacketed	5.0	1180	never exceed; min OAL: 1.120; 31,000 psi
125	Jacketed	4.7	1111	start load; min OAL: 1.150
125	Jacketed	4.9	1155	never exceed; min OAL: 1.150; 32,000 psi
125	Lead	4.7	1121	start load; min OAL: 1.150
125	Lead	4.9	1165	never exceed; min OAL: 1.150; 32,100 psi
147	XTP	3.9	954	start load; min OAL: 1.140
147	XTP	4.2	1010	never exceed; min OAL: 1.140; 32,900 psi
Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
92	Cast #358242	4.0	1060	sugg. start load; OAL: 1.045"; 19,800 cup
92	Cast #358242	5.2	1315	max load; OAL: 1.045"; 32,000 cup
115	Cast #358345	3.8	1035	sugg. start load; OAL: .997"; case: Win; primer: Win 1 1/2-108; 22,800 cup
115	Cast #358345	4.9	1200	max load; OAL: .997"; case: Win; primer: Win 1 1/2-108; 31,000 cup
121	Cast #356402	3.7	950	sugg. start load; OAL: 1.110"; case: Win; primer: Win 1 1/2-108; 21,600 cup
121	Cast #356402	4.4	1125	max load; OAL: 1.110"; case: Win; primer: Win 1 1/2-108; 32,000 cup
Lyman Cast Bullet Handbook 3rd Edition The trim-to length should be adhered to closely. A short case or crimp on the mouth can cause problems with headspace. Most popular cast bullet for this caliber is #356402. Cases: Federal (except where otherwise specified in remarks); trim-to length: .751"; primers: CCI 500 (except where otherwise specified in remarks); primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-10"; groove diameter: .358"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ RN	4.2	1037	start charge
115	Speer GDHP or TMJ RN	4.7	1144	maximum charge
124	Speer TMJ RN, UCSP or GDHP	3.9	966	start charge
124	Speer TMJ RN, UCSP or GDHP	4.4	1059	maximum charge
Speer Reloading Manual #14 max. case length: 0.754"; trim-to length: 0.744"; max cart. OAL: 1.169"; RCBS shell holder: #16; cart. case: Speer; primer: CCI 500; test firearm: S&W M5906; barrel length: 4"; 147-grain bullets not recommended for barrels longer than 10 inches; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	JHP	5.0	1,415	energy: 399; psi: 29,500
90	JHP	4.5	1,310	energy: 343; psi: 24,300
Super Vel Data 5 inch Pressure Barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP or FMJ-RN	3.9	1090
115	Hornady HP-XTP or FMJ-RN	4.2	1132
115	Hornady HP-XTP or FMJ-RN	4.4	1174
115	Hornady HP-XTP or FMJ-RN	4.6	1217	maximum load
Using 115 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; HP-XTP COAL: 1.075"; FMJ-RN COAL: 1.100"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	4.4	1238
90	Hornady HP-XTP	4.7	1282
90	Hornady HP-XTP	4.9	1334
90	Hornady HP-XTP	5.2	1385
90	Hornady HP-XTP	5.5	1434	maximum load
Using 90 GR Hornady Bullets This data was shot by Brian Pearce, Wolfe Publishing Company. Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.070"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Nosler Sporting Handgun Pistol JHP	4.4	1046	max
124	Nosler Sporting Handgun Pistol JHP	3.9	953	most accurate load tested
124	Nosler Sporting Handgun Pistol JHP	3.4	859
Using Nosler Bullets Case: Winchester; primer: Rem 1 1/2; barrel length/make: 4" Douglas; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.100"; 124 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.169". Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Cast #356242	4.0	1060	sugg. start load; 19,800 cup; 1.045" OAL; potentially most accurate load
90	Cast #356242	5.2	1315	max load; 32,000 cup; 1.045" OAL
120	Cast #356242	3.4	939	sugg. start load; 23,600 cup; 1.065" OAL
120	Cast #356242	4.2	1175	max load; 32,500 cup; 1.065" OAL
120	Cast #356402	3.8	1047	sugg. start load; 28,400 cup; 1.110" OAL
120	Cast #356402	4.2	1124	max load; 31,200 cup; 1.110" OAL
147	Cast #356637	2.8	780	sugg. start load; 24,900 cup; 1.058" OAL
147	Cast #356637	3.5	942	max load; 31,600 cup; 1.058" OAL
Cast Bullet Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .356" dia.and all #2 Alloy; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	4.1	971	sugg. start load; 21,600 cup; 1.010" OAL
90	Sierra Jacketed HP	5.2	1376	max load; 30,900 cup; 1.010" OAL; potentially most accurate load
95	Sierra FMJ	3.5	893	sugg. start load; 19,400 cup; 1.005" OAL
95	Sierra FMJ	5.0	1307	max load; 30,600 cup; 1.005" OAL
115	Hornady Jacketed HP/XTP	3.5	945	sugg. start load; 18,700 cup; 1.090" OAL
115	Hornady Jacketed HP/XTP	4.8	1184	max load; 31,700 cup; 1.090" OAL
125	Sierra Jacketed HP	3.9	979	sugg. start load; 27,900 cup; 1.075" OAL
125	Sierra Jacketed HP	4.5	1073	max load; 30,100 cup; 1.075" OAL
147	Speer TMJ	3.4	871	sugg. start load; 23,500 cup; 1.115" OAL
147	Speer TMJ	3.9	971	max load; 29,900 cup; 1.115" OAL
Handgun Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .751"; primers: CCI 500; primer size; Small Pistol; Lyman shell holder: No. 12; firearm used: Universal Receiver; barrel length: 4"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra JHC	5.3	1,361	maximum; highest velocity load tested; OAL: .980"
115	Sierra JHC	4.5	1,122	OAL: 1.07"
4" Barrel Overall cartridge length must be carefully controlled to insure reliable feeding. Cartridges must lie parallel to magazine follower. (These notes especially apply to the Luger.)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Montana Gold FMJ	4.4	1297	Luger P08 8-inch barrel
115	Montana Gold FMJ	4.4	1196	Browning 4.63-inch barrel
120	Lyman 356242 cast RN	4.4	1332	Luger P08 8-inch barrel
120	Lyman 356242 cast RN	4.4	1236	Browning 4.63-inch barrel
124	Oregon Trail cast RN	4.4	1316	Luger P08 8-inch barrel
124	Oregon Trail cast RN	4.4	1201	Browning 4.63-inch barrel
125	Zero Bullet Company FMJ	4.4	1276	Luger P08 8-inch barrel
125	Zero Bullet Company FMJ	4.4	1189	Browning 4.63-inch barrel
Ball-Type Handloads Chronograph figures are for five rounds taken with the start screen at approximately 6 feet. All loads used Winchester Small Pistol primers. Cases were mixed brands of commercial brass and not sorted by maker. All bullets were taper crimped as a separate step in the handloading process. Bullets cast were poured of Linotype alloy, sized .357 inch and lubed with SPG.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Lyman 356242 cast RN	3.9	1017	variation (fps): 34
124	Oregon Trail cast RN	3.9	1021	variation (fps): 13; best load this pistol
Fabrique Nationale / Browning Hi-Power, 5.0-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype; cast bullets lubed with SPG; sizing diameter: .357 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass by Federal
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Lyman 356242 cast RN	3.9	970	variation (fps): 13; best load this pistol
124	Oregon Trail cast RN	3.9	986	variation (fps): 22
German P08 Luger, 4.0-inch barrel (Loads for World War II Handguns) (made by Mauser) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype; cast bullets lubed with SPG; sizing diameter: .357 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass by Federal
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Lyman 356242 cast RN	3.9	1033	variation (fps): 8
124	Oregon Trail cast RN	3.9	1038	variation (fps): 13; best load this pistol
German P38, 5.0-inch barrel (Loads for World War II Handguns) (made by Mauser) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype; cast bullets lubed with SPG; sizing diameter: .357 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass by Federal
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady JHP	4.5	1,230	length (inches): 1.045; expansion: normal; accuracy class: A; accurate
90	Hornady JHP	5.4	1,393	length (inches): 1.045; expansion: maximum; accuracy class: A; highest velocity; do not exceed
115	Hornady JHP	4.5	1,079	length (inches): 1.110; expansion: normal; accuracy class: C; cases different lengths
115	Hornady JHP	4.5	1,077	length (inches): 1.110; expansion: normal; accuracy class: B+; cases same length; accurate
115	Hornady JHP	4.7	1,124	length (inches): 1.110; expansion: near max; accuracy class: A+; third most accurate
115	Hornady JHP	4.8	1,171	length (inches): 1.110; expansion: maximum; accuracy class: A+; very accurate
115	Sierra JHC	4.8	1,183	length (inches): 1.070; expansion: maximum; accuracy class: C
125	Sierra FMJ	4.3	1,077	length (inches): 1.150; expansion: normal; accuracy class: B
125	Speer JSP	4.4	1,029	length (inches): 1.130; expansion: normal; accuracy class: C
in a 4-inch Barrel Test gun: S&W Model 39-2; R-P cases; Alcan SP primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady JHP	5.4	1,435	length (inches): 1.045; expansion: maximum; accuracy class: A; highest velocity; do not exceed
115	Hornady JHP	4.8	1,207	length (inches): 1.110; expansion: maximum; accuracy class: A+; very accurate
in a 5-inch Barrel Test gun Walther P-38; R-P cases; Alcan SP primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady XTP	5.5	1312	overall length (inches): 1.063; group (inches): 3.00
115	Nosler JHP	4.3	1188	overall length (inches): 1.100; group (inches): 2.50
115	Sierra FMJ	5.0	1202	overall length (inches): 1.120; group (inches): 2.50
122	Magnus flatnose	3.6	950	overall length (inches): 1.142; group (inches): 3.40
125	Oregon Trail lead roundnose	4.5	1130	overall length (inches): 1.142; group (inches): 3.25
160	Leadhead lead roundnose	3.0	970	overall length (inches): 1.143; group (inches): 3.00
in a Browning Hi-Power Accuracy is for five-shot groups at 25 yards from a solid benchrest. The group was measured from the inside of the most widely spaced bullet holes
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Lyman 356242 roundnose	4.0	1041	diameter (inch): .356; best accuracy this pistol but functioning not 100%
124	Oregon Trail roundnose	4.0	1050	diameter (inch): .356; very good accuracy
124	Zero Bullet FMJ	4.0	1066	diameter (inch): .355; mild but accurate
in a German P38 German P38 9mm Parabellum, 5-inch barrel. Brass was a mix of Remington, Winchester, Federal and Starline headstamps. Primers were Winchester. Bullets cast were of straight Linotype alloy and lubed with SPG. All bullets loaded were taper crimped. All velocities taken with an Oehler Model 35P with start screen at approximately 6 feet.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Bushwacker SWC	4.0	1,142	primer: Federal 100; group (inches): 1.35; maximum
122	Bushwacker FP	4.0	1,126	primer: Federal 100; group (inches): 1.89; maximum
125	Bushwacker RN	4.0	1,125	primer: Federal 100; group (inches): 1.30; best 125-grain RN load
125	Bushwacker SWC	4.0	1,105	primer: Federal 100; group (inches): 1.71; fast; good load
in an S & W Model 952-2 (Cast Bullets) A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. WSL=Winchester Super Lite; WSP=Winchester Small Pistol primer. Range temperatures were 58 to 74 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer HP	5.0	1352	group (inches): 4.00
90	Hornady HP	5.0	1322	group (inches): 2.50
90	Sierra JHP	5.0	1334	group (inches): 2.50
100	Hornady FMJ	4.8	1211	group (inches): 4.00
100	Speer JHP	4.8	1261	group (inches): 2.00
115	Hornady FMJ/RN	4.7	1190	group (inches): 4.50
115	Sierra JHP	4.7	1203	group (inches): 2.50
115	Speer TMJ	4.7	1193	group (inches): 3.25
115	Winchester ST	4.7	1217	group (inches): 2.25
124	Hornady FMJ/FP	4.5	1152	group (inches): 2.50
125	Speer softpoint	4.5	1101	group (inches): 5.00
125	Sierra JHP	4.4	1101	group (inches): 4.00
in an S&W Model 952 All testing done with the targets at 30 yards. S&W Model 952 was shot in a Ransom Rest, velocities measured at 10 feet from the muzzle. Outside temperature was around 70 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
123	RCBS 9mm-125-RN (gas check)	3.8	1037	nicely accurate
Military Model (1938 vintage) (Autoloading Pistol Loads) 4-inch barrel. Group shooting was done from a sandbag rest at 25 yards in five-shot strings. Chronographing done with an Oehler Model 35P with start screen at approximately 6 feet. All brass was Starline. All primers were CCI Small or Large Pistol as proper. All bullets cast were poured of Linotype and lubed with SPG. Sizing diameter: .357 inch; Gas checks were Lyman.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Super Vel	5.5	1,330	fine defense load
All velocities taken in 4 inch barrel. Nominal bullet diameter should be .354"-.356", but most .357"-.358" bullets can be used with moderate or light loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
120	Lyman 356242 cast RN	3.9	1010	variation (fps): 17
124	Oregon Trail cast RN	3.9	1024	variation (fps): 13
Inglis/Browning Hi-Power, 5.0-inch barrel (Loads for World War II Handguns) all chronograph readings taken with an Oehler Model 35P chronograph with the start screen at approximately 6 feet; bullets cast of Linotype; cast bullets lubed with SPG; sizing diameter: .357 inch; Winchester Small Pistol and Large Pistol primers used throughout; brass by Federal

9mm Makarov

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
99	RCBS 9mm-MAK cast roundnose (sized .365 inch)	3.1	1061	slightly vertical, good group
95	FMJ	3.1	1001	good group
Very good group is approximately 1.0 inch; good group is approximately 1.5 inches; mediocre group is between 1.5 and 2.0 inches; poor group is over approximately 2.0 inches. Velocities are for five shots taken at approximately 6 feet from the pistol muzzle using an Oehler Model 35P. All groups fired at 20 feet in five-shot strings. All loads were taper crimped. All cast bullet loads were poured of straight Linotype alloy and lubed with SPG. These loads were fired from an FEG PA63 (Hungarian made) with a 3.94-inch barrel and used Starline brass with Winchester Small Pistol primers.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Schroeder Jacketed HP	2.3	567	sugg. start load
90	Schroeder Jacketed HP	3.5	948	max load
95	Schroeder FMJ	2.2	587	sugg. start load
95	Schroeder FMJ	3.4	872	max load
100	Schroeder Jacketed HP	2.0	573	sugg. start load
100	Schroeder Jacketed HP	3.2	864	max load; potentially most accurate load
Lyman Reloading Handbook 49th Edition cases: Starline; trim-to length: .710"; primers: Remington 1 1/2; primer size: Small Pistol; Lyman shell holder: No. 12; firearm used: East German PM; barrel length: 3.6"; twist: 1-19"; groove dia.: .366"; .970" OAL
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Jacketed	3.2	865	start load; min OAL: 0.965
95	Jacketed	3.6	970	never exceed; min OAL: 0.965; 21,200 psi
100	Jacketed	3.2	856	start load; min OAL: 0.965
100	Jacketed	3.6	960	never exceed; min OAL: 0.965; 21,100 psi
100	Lead	2.8	821	start load; min OAL: 0.965
100	Lead	3.2	920	never exceed; min OAL: 0.965; 21,000 psi
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Speer Mak GDHP	3.6	971	start charge
90	Speer Mak GDHP	4.1	1067	maximum charge
95	Speer Mak TMJ RN	3.5	896	start charge
95	Speer Mak TMJ RN	3.9	1010	maximum charge
Speer Reloading Manual #14 max. case length: 0.713"; trim-to length: 0.703"; max cart. OAL: 0.984"; RCBS shell holder: #16; cart. case: Starline; primer: CCI 500; test firearm: East German Makarov; barrel length: 3.625"; maximum loads should be used with CAUTION

9x21mm

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Sierra Jacketed HP	5.5	1290	sugg. start load; 26,000 cup; 1.063" OAL
90	Sierra Jacketed HP	7.2	1446	max load; 31,700 cup; 1.063" OAL
115	Sierra Jacketed HP	4.5	935	sugg. start load; 23,000 cup; 1.063" OAL
115	Sierra Jacketed HP	5.8	1234	max load; 29,600 cup; 1.063" OAL
124	Hornady FMJ/FP	4.2	853	sugg. start load; 20,000 cup; 1.090" OAL
124	Hornady FMJ/FP	5.7	1242	max load; 29,400 cup; 1.090" OAL
120	Cast #356402	3.8	836	sugg. start load; 18,200 cup; 1.169" OAL
120	Cast #356402	5.4	1242	max load; 29,700 cup; 1.169" OAL
147	Cast #356637	3.4	700	sugg. start load; 22,600 cup; 1.119" OAL
147	Cast #356637	4.5	1005	max load; 32,200 cup; 1.119" OAL
Lyman Reloading Handbook 49th Edition cases: Geco; trim-to length: .830"; primers: Winchester WSP; primer size: Small Pistol; Lyman shell holder: No. 12; cast bullets used sized to .355" dia.; firearm used: Universal Receiver; barrel length: 5"; twist: 1-16"; groove dia.: .355"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
