VihtaVuori N350

This is the slowest burning N300 series handgun powder, which can usually be used instead of Accurate No.7, IMR Hi- Skor 800-X and Alliant Blue Dot. Appropriate choice for many powerful handgun loads, for example in calibers 9 mm Luger, 10 mm AUTO and .45 ACP.

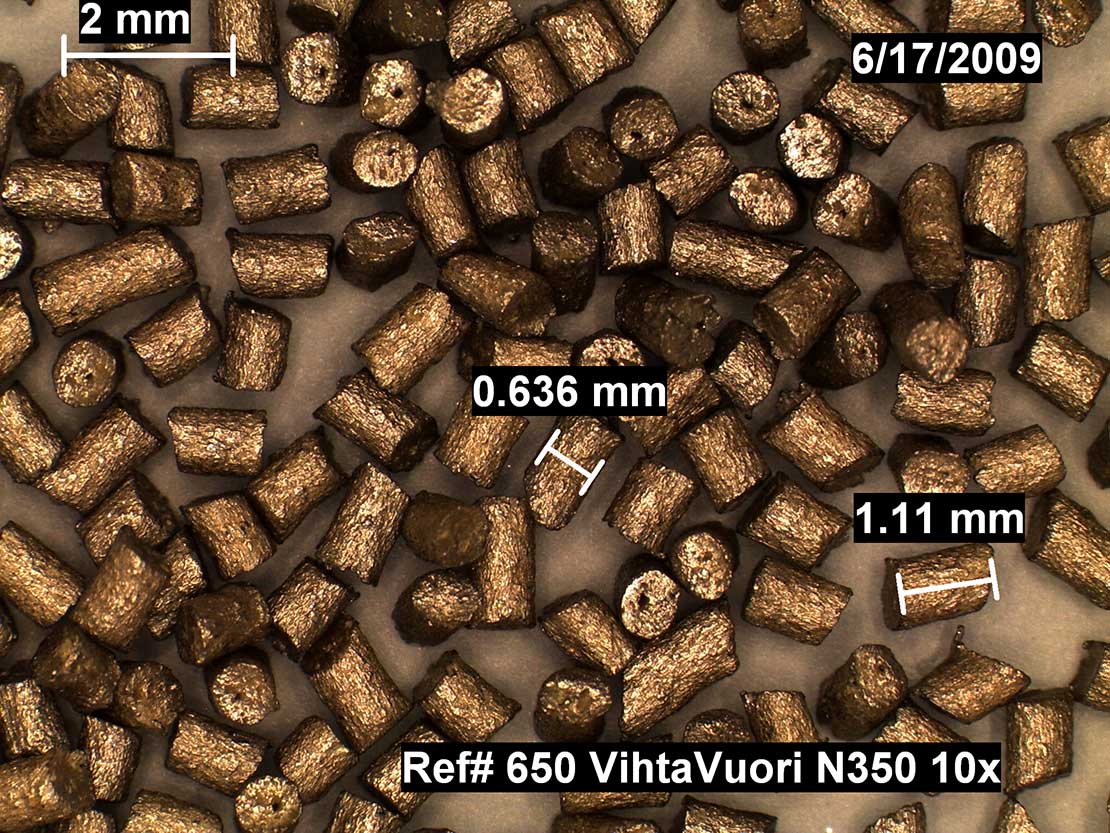

Shape	Color	Perforation	Diameter min	Diameter max	Length/thick. min	Length/thick. max	Manufacturer
Cylinder(tubular)	Gold	Yes	0.64 mm	0.8 mm	1.06 mm	1.66 mm	Finland

ADVARSEL!

Ladedata som finnes på hjemmesidene til Evje PK er KUN ment som en veiledning! Ladedata skal alltid verifiseres mot kjente kilder (kruttprodusenter, ladebøker o.l.)

Data funnet på våre hjemmesider brukes på eget ansvar, og Evje Pistolklubb fratar seg alt ansvar for feil bruk av, eller skrivefeil i oppgitte data.

.357 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer JHP bulk pack	8.0	1004	barrel length: 4"; rounds per pound: 875
Economical Midrange Loads A variety of firearms were used. primer: CCI 500 (except where otherwise specified in remarks); case: Starline
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer UCSP, GDHP, UCHP or TMJ FN	9.0	1097	start charge
125	Speer UCSP, GDHP, UCHP or TMJ FN	10.0	1226	maximum charge
140	Speer UCHP	8.1	1078	start charge
140	Speer UCHP	9.1	1195	maximum charge
158	Speer TMJ FN, UCHP, GDHP or UCSP	7.7	958	start charge
158	Speer TMJ FN, UCHP, GDHP or UCSP	8.6	1072	maximum charge
(Handgun) Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500 (except where otherwise specified in remarks); test firearm: S&W model 19; barrel length: 6"; NOTE: Do not use the 110-grain Gold Dot SB HP (#4009) in the 357 Magnum; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	9.9	1546	start load; min OAL: 1.575
110	XTP	10.8	1647	never exceed; min OAL: 1.575
124	Lead	8.3	1387	start load; min OAL: 1.614
124	Lead	9.3	1479	never exceed; min OAL: 1.614
125	XTP	8.7	1415	start load; min OAL: 1.575
125	XTP	9.7	1512	never exceed; min OAL: 1.575
140	Jacketed	8.2	1280	start load; min OAL: 1.575
140	Jacketed	9.1	1382	never exceed; min OAL: 1.575
145	Lead	6.8	1231	start load; min OAL: 1.614
145	Lead	8.1	1344	never exceed; min OAL: 1.614
158	Jacketed	7.6	1200	start load; min OAL: 1.575
158	Jacketed	8.5	1276	never exceed; min OAL: 1.575
160	Lead	6.6	1191	start load; min OAL: 1.575
160	Lead	7.6	1270	never exceed; min OAL: 1.575
180	Jacketed	6.4	961	start load; min OAL: 1.677
180	Jacketed	7.4	1087	never exceed; min OAL: 1.677
200	Jacketed	6.2	838	start load; min OAL: 1.697
200	Jacketed	7.1	966	never exceed; min OAL: 1.697
Lee Precision Data Small Pistol Primer. With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP/XTP	10.6	1631	starting load; OAL (in.): 1.575
110	Hornady HP/XTP	11.4	1722	maximum load; OAL (in.): 1.575
124	Intercast LSWC	9.1	1463	starting load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
124	Intercast LSWC	10.0	1547	maximum load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
125	Hornady FP/XTP	9.5	1496	starting load; OAL (in.): 1.575
125	Hornady FP/XTP	10.5	1585	maximum load; OAL (in.): 1.575
140	Speer HP	9.0	1365	starting load; OAL (in.): 1.575
140	Speer HP	9.7	1459	maximum load; OAL (in.): 1.575
145	Intercast LSWC	7.9	1325	starting load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
145	Intercast LSWC	9.0	1429	maximum load; OAL (in.): 1.614; (the cartridge overall length exceeds the CIP maximum)
158	Speer HP	8.3	1263	starting load; OAL (in.): 1.575
158	Speer HP	9.1	1333	maximum load; OAL (in.): 1.575
160	Intercast LFN	7.5	1257	starting load; OAL (in.): 1.575
160	Intercast LFN	8.3	1329	maximum load; OAL (in.): 1.575
180	Speer TMJ	7.3	1066	starting load; OAL (in.): 1.677; (the cartridge overall length exceeds the CIP maximum)
180	Speer TMJ	8.2	1182	maximum load; OAL (in.): 1.677; (the cartridge overall length exceeds the CIP maximum)
200	Speer TMJ	6.9	945	starting load; OAL (in.): 1.697; (the cartridge overall length exceeds the CIP maximum)
200	Speer TMJ	7.7	1063	maximum load; OAL (in.): 1.697; (the cartridge overall length exceeds the CIP maximum)
Vihtavuori Reloading Guide 2006 test barrel: 7", 1 in 18 1/2" twist; primers: Small Rifles; cases: Remington, trim-to length: 1.283"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Nosler hollowpoint	8.0	1,004	overall loaded length (inches): 1.584; primer: CCI 500
for S&W Models 19 & 66 Firearm used for testing was an S&W Model 19 with a 4-inch barrel. Starline cases were used throughout. No loads exceeded 30,000 psi.

.357 Maximum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Copper Plated	9.7	1306	start load; min OAL: 1.890
158	Copper Plated	11.8	1533	never exceed; min OAL: 1.890
158	Barnes X	8.6	1341	start load; min OAL: 1.890
158	Barnes X	10.7	1528	never exceed; min OAL: 1.890
160	Lead	9.5	1445	start load; min OAL: 1.890
160	Lead	10.6	1547	never exceed; min OAL: 1.890
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Hornady FP/XTP	9.9	1453	starting load; COL (in.): 1.890
158	Hornady FP/XTP	10.9	1541	maximum load; COL (in.): 1.890
158	Rainier FP	11.0	1444	starting load; COL (in.): 1.890
158	Rainier FP	12.0	1548	maximum load; COL (in.): 1.890
160	Intercast LFN	10.2	1506	starting load; COL (in.): 1.890
160	Intercast LFN	10.7	1553	maximum load; COL (in.): 1.890
Vihtavuori Reloading Guide 6 test barrel: 12", 1 in 18 1/2" twist; primers: Small Rifle; cases: Remington, trim-to length: 1.598"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.357 SIG

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Jacketed	9.3	1592	start load; compressed charge; min OAL: 1.201
95	Jacketed	10.5	1768	never exceed; compressed charge; min OAL: 1.201
115	Jacketed	7.7	1372	start load; min OAL: 1.201
115	Jacketed	9.0	1568	never exceed; min OAL: 1.201
123	Megashock	7.4	1291	start load; min OAL: 1.201
123	Megashock	8.8	1503	never exceed; min OAL: 1.201
130	Copper Plated	7.3	1271	start load; min OAL: 1.201
130	Copper Plated	8.5	1453	never exceed; min OAL: 1.201
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer Gold Dot Jacketed HP	7.7	1241	sugg. start load; 33,400 psi; 1.135" OAL
125	Speer Gold Dot Jacketed HP	8.5	1343	max load; 39,400 psi; 1.135" OAL
147	Speer TMJ	6.7	1095	sugg. start load; 32,100 psi; 1.135" OAL
147	Speer TMJ	7.5	1196	max load; 39,600 psi; 1.135" OAL
Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: .860"; primers: Federal 100; primer size: Small Pistol; Lyman shell holder: No. 15; firearm used: Universal Receiver; barrel length: 4"; twist: 1-16"; groove dia.: .3553"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Speer GD-HP or TMJ RN	7.6	1242	start charge
125	Speer GD-HP or TMJ RN	8.5	1350	maximum charge
147	Speer GD-HP or TMJ	6.2	1040	start charge
147	Speer GD-HP or TMJ	6.8	1111	maximum charge
Speer Reloading Manual #14 max case length: 0.865"; trim-to length: 0.860"; max cart length: 1.140"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: SIG 229; case: Speer; primers: CCI 500; COL: 1.135"; bullet dia.: 355"; maximum loads should be used with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP or FMJ-RN	7.2	1235
115	Hornady HP-XTP or FMJ-RN	7.5	1274
115	Hornady HP-XTP or FMJ-RN	7.7	1321
115	Hornady HP-XTP or FMJ-RN	8.0	1367
115	Hornady HP-XTP or FMJ-RN	8.3	1413
115	Hornady HP-XTP or FMJ-RN	8.6	1455	maximum load
124	Hornady HP-XTP	6.9	1173
124	Hornady HP-XTP	7.3	1239
124	Hornady HP-XTP	7.6	1305
124	Hornady HP-XTP	8.0	1370	maximum load
Using Hornady Bullets Gun: Glock Model 31; barrel length: 4.48 inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.140"; maximum COAL: 1.140"; maximum case length: .865"; trim to length: .860".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Nosler Sporting Handgun JHP	9.1	1425	max; compressed load
115	Nosler Sporting Handgun JHP	8.6	1366	compressed load; most accurate load tested
115	Nosler Sporting Handgun JHP	8.1	1312	compressed load
124	Nosler Sporting Handgun JHP	8.2	1318	max; compressed load
124	Nosler Sporting Handgun JHP	7.7	1256
124	Nosler Sporting Handgun JHP	7.2	1198	most accurate load tested
Using Nosler Bullets Case: Federal; primer: WSP; barrel length/make: 3.9" Sig; twist: 1-16"; bullets: 115 GR Nosler Sporting Handgun Pistol JHP - OACL: 1.140"; 124 GR Sporting Handgun Pistol JHP - OACL: 1.120"; maximum OACL: 1.140". Contrary to the cartridge designation, the 357 Sig uses 9mm (.355") bullets. Both the 115 and 124 grain 9mm Sporting Handgun Pistol bullets are suitable for loading in the .357 Sig. Use Maximum Loads with Caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
95	Sierra FMJ	8.8	1537	starting load
95	Sierra FMJ	10.1	1699	maximum load
115	Sierra FMJ	7.3	1347	starting load
115	Sierra FMJ	8.6	1509	maximum load
123	Lapua FMJ-RN	7.2	1293	starting load
123	Lapua FMJ-RN	8.3	1440	maximum load
123	Lapua Megashock	6.9	1276	starting load
123	Lapua Megashock	8.4	1445	maximum load
130	Rainier RN B	6.8	1257	starting load
130	Rainier RN B	8.1	1404	maximum load
Vihtavuori Reloading Guide 6 test barrel: 5", 1 in 16" twist; primers: Small Pistol; cases: Starline, trim-to length: 0.858"; COL (in.): 1.140; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker SWC	6.2	1,114	group: 2.48 inches; muzzle energy: 139 ft-lbs
125	Bushwacker SWC	6.5	1,164	group: 1.46 inches; muzzle energy: 146 ft-lbs
in a Springfield XD Starline cases and Winchester Small Pistol primers were used for all handloads. Springfield Armory XD pistol with a 4-inch barrel and fixed open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures were 62 to 76 degrees Fahrenheit. .355-inch jacketed bullets and .356-inch cast bullets.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady XTP	7.7	1,276	group: 2.16 inches; muzzle energy: 448 ft-lbs
124	Hornady XTP	7.9	1,320	group: 1.16 inches; muzzle energy: 480 ft-lbs; best 124-grain XTP load
147	Hornady XTP	6.5	1,102	group: 1.54 inches; muzzle energy: 396 ft-lbs
147	Hornady XTP	6.7	1,133	group: 1.89 inches; muzzle energy: 419 ft-lbs
147	Hornady XTP	6.8	1,152	group: 2.16 inches; muzzle energy: 433 ft-lbs
in an S&W 4006 Smith & Wesson Model 4006 with a custom Bar-Sto 4-inch barrel and Millett adjustable open sights was used for testing. Starline cases and Winchester Small Pistol primers (WSP) were used for all handloads. Velocities were taken 12 feet from the gun's muzzle with an Oehler Model 33 or Model 35P chronograph. Accuracy is the average of three, five-shot groups at 15 yards from a sandbag rest. Range temperatures wer 58 to 74 degrees Fahrenheit. .355-inch jacketed and .356-inch cast bullets.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Speer Gold Dot hollowpoint	7.6	1,242
124	Speer Gold Dot hollowpoint	8.5	1,350	maximum load
Speer Load Data CCI 500 primers and Speer cases used in all test loads.

.38 Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Winchester 125 STHP	7.0	1,133
(.38-44 High Velocity) (Colt Peacemaker Loads) Winchester +P cases used throughout with CCI 450 primers. (Loading the Peacemaker - Dave Scovill)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Cast gas check #358156 (Linotype)	4.5	774	sugg. start load; 1.460" OAL; 12,100 cup
155	Cast gas check #358156 (Linotype)	5.0	892	max load; 1.460" OAL; 15,600 cup
158	Cast #358665 (Linotype)	4.7	750	sugg. start load; 1.445" OAL; 11,500 cup
158	Cast #358665 (Linotype)	5.3	913	max load; 1.445" OAL; 15,700 cup
160	Cast #358311 (Linotype)	4.9	808	sugg. start load; 1.550" OAL; 11,800 cup
160	Cast #358311 (Linotype)	5.5	921	max load; 1.550" OAL; 16,200 cup
170	Cast #358429 (Linotype)	4.8	816	sugg. start load; 1.537" OAL; 12,700 cup
170	Cast #358429 (Linotype)	5.4	912	max load; 1.537" OAL; 15,800 cup
Cast Bullet Data Lyman Reloading Handbook 49th Edition cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; cast bullets used sized to .358" dia.; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer Jacketed HP	5.8	713	sugg. start load; 1.470" OAL; 13,800 cup
140	Speer Jacketed HP	6.5	831	max load; 1.470" OAL; 15,700 cup
158	Hornady Jacketed HP	5.2	657	sugg. start load; 1.480" OAL; 14,700 cup
158	Hornady Jacketed HP	5.8	753	max load; 1.480" OAL; 15,800 cup
Lyman Reloading Handbook 49th Edition Warning! cases: Federal; trim-to length: 1.149"; primers: CCI 500; primer size: Small Pistol; Lyman shell holder: No. 1; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .357"; (+P) designates higher pressure loads
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC, LSWC HP or LRN	4.5	717	start charge
158	Speer LSWC, LSWC HP or LRN	5.0	818	maximum charge
Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; 550; test firearm: S&W Model 14; barrel length: 6"; use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	Hornady HP/XTP	6.6	1165	start load; COL: 1.437"
110	Hornady HP/XTP	7.7	1305	max load; COL: 1.437"
124	Intercast LSWC	5.9	1101	start load; COL: 1.437"
124	Intercast LSWC	6.8	1215	max load; COL: 1.437"
125	Hornady FP/XTP	6.5	1058	start load; COL: 1.437"
125	Hornady FP/XTP	7.5	1224	max load; COL: 1.437"
125	Rainier FP	5.9	997	start load; COL: 1.437"
125	Rainier FP	6.9	1160	max load; COL: 1.437"
140	Speer HP	6.2	925	start load; COL: 1.437"
140	Speer HP	6.9	1102	max load; COL: 1.437"
145	Intercast LSWC	5.4	969	start load; COL: 1.476"
145	Intercast LSWC	6.4	1136	max load; COL: 1.476"
146	Speer JHP	5.2	869	start load; COL: 1.378"
146	Speer JHP	5.9	1010	max load; COL: 1.378"
148	Sako LWC	4.1	835	start load; COL: 1.181"
148	Sako LWC	4.6	964	max load; COL: 1.181"
158	Speer HP	5.5	855	start load; COL: 1.437"
158	Speer HP	6.3	1013	max load; COL: 1.437"
158	Rainier FP	5.5	856	start load; COL: 1.476"
158	Rainier FP	6.3	1004	max load; COL: 1.476"
160	Intercast LFN	5.4	963	start load; COL: 1.476"
160	Intercast LFN	6.1	1077	max load; COL: 1.476"
Vihtavuori Reloading Guide Edition 6 test barrel: 6 1/2", 1 in 18" twist; primers: Small Pistol; cases: LAPUA, trim-to length: 1.146"; loads less than minimum charges shown are not recommended; use maximum loads with caution!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	7.1	1218	start load; min OAL: 1.437
110	XTP	7.4	1266	never exceed; min OAL: 1.437
124	Lead	6.4	1150	start load; min OAL: 1.437
124	Lead	6.6	1183	never exceed; min OAL: 1.437
125	Copper Plated	6.3	1064	start load; min OAL: 1.437
125	Copper Plated	6.6	1115	never exceed; min OAL: 1.437
140	Jacketed	6.4	1013	start load; min OAL: 1.437
140	Jacketed	6.7	1053	never exceed; min OAL: 1.437
145	Lead	5.8	1029	start load; min OAL: 1.476
145	Lead	6.2	1089	never exceed; min OAL: 1.476
146	Jacketed	5.6	953	start load; min OAL: 1.378
146	Jacketed	5.7	971	never exceed; min OAL: 1.378
148	Wadcutter	4.3	892	start load; min OAL: 1.181
148	Wadcutter	4.5	928	never exceed; min OAL: 1.181
158	Copper Plated	5.9	936	start load; min OAL: 1.476
158	Copper Plated	6.1	963	never exceed; min OAL: 1.476
160	Lead	5.7	1016	start load; min OAL: 1.476
160	Lead	5.9	1046	never exceed; min OAL: 1.476
+P Lee Precision Data These hot loads may wear guns prematurely. Do not use in small frame, or aluminum frame revolvers, or in semi auto pistols. Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Speer Gold Dot HP SB	6.0	871	S&W 3-inch
135	Speer Gold Dot HP SB	6.0	857	Ruger 3 1/16-inch
135	Speer Gold Dot HP SB	6.5	948	S&W 3-inch
135	Speer Gold Dot HP SB	6.5	952	Ruger 3 1/16-inch
+P (Max. Pressure Limit 20,000 psi) All loads were fired in a Smith & Wesson Model 36 and a Ruger SP101. Starline cases and CCI 500 primers were used throughout. Cartridge overall length: 1.470 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
158	Speer LSWC, LSWC HP or LRN	5.0	818	start charge
158	Speer LSWC, LSWC HP or LRN	5.4	901	maximum charge
140	Speer UCHP	5.9	924	start charge
140	Speer UCHP	6.2	982	maximum charge
146	Speer JHP-SWC	5.2	840	start charge
146	Speer JHP-SWC	5.6	903	maximum charge
+P Speer Reloading Manual #14 max. case length: 1.155"; trim-to length: 1.145"; max cart. OAL: 1.550"; RCBS shell holder: #6; cart. case: Speer; primer: CCI 500; test firearm: S&W Model 14; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer JHP	6.2	865
+P 20,000 Warning! Test gun was a Smith & Wesson Model 14 with a 6-inch barrel. Federal 100 primers used throughout. Temperature during testing was 28 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Speer Jacketed Hollow Point	6.2	859
+P Data (20,000 psi) Data is safe in any .38 S&W Special revolver that is recommended for +P loads and is in good mechanical condition. Handgun used was a Smith & Wesson .38-44 Outdoorsman with a 6 1/2-inch barrel. Federal 100 primers and Starline cases used throughout. Temperature during testing was 46 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
110	XTP	6.4	1107	start load; min. OAL: 1.437
110	XTP	7.1	1227	NEVER EXCEED; min. OAL: 1.437
124	Lead	5.7	1045	start load; min. OAL: 1.437
124	Lead	6.4	1150	NEVER EXCEED; min. OAL: 1.437
125	Copper Plated	5.7	967	start load; min. OAL: 1.437
125	Copper Plated	6.3	1064	NEVER EXCEED; min. OAL: 1.437
125	XTP	6.2	1009	start load; min. OAL: 1.437
125	XTP	7.0	1132	NEVER EXCEED; min. OAL: 1.437
140	Jacketed	5.7	913	start load; min. OAL: 1.437
140	Jacketed	6.4	1004	NEVER EXCEED; min. OAL: 1.437
145	Lead	5.2	948	start load; min. OAL: 1.476
145	Lead	5.8	1043	NEVER EXCEED; min. OAL: 1.476
146	Jacketed	5.0	847	start load; min. OAL: 1.378
146	Jacketed	5.6	932	NEVER EXCEED; min. OAL: 1.378
148	Wad Cutter	3.9	812	start load; min. OAL: 1.181
148	Wad Cutter	4.3	892	NEVER EXCEED; min. OAL: 1.181
158	Jacketed	5.2	825	start load; min. OAL: 1.437
158	Jacketed	5.9	925	NEVER EXCEED; min. OAL: 1.437
158	Copper Plated	5.3	838	start load; min. OAL: 1.476
158	Copper Plated	5.9	922	NEVER EXCEED; min. OAL: 1.476
160	Lead	5.1	922	start load; min. OAL: 1.476
160	Lead	5.7	1014	NEVER EXCEED; min. OAL: 1.476
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.

.38 Super

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Jacketed	7.9	1358	start load; min OAL: 1.276
115	Jacketed	9.1	1519	never exceed; min OAL: 1.276
115	Copper Plated	6.6	1273	start load; min OAL: 1.240
115	Copper Plated	7.9	1437	never exceed; min OAL: 1.240
115	XTP	5.5	1171	start load; min OAL: 1.240
115	XTP	7.1	1362	never exceed; min OAL: 1.240
124	Jacketed	6.4	1201	start load; min OAL: 1.260
124	Jacketed	7.5	1348	never exceed; min OAL: 1.260
124	Lead	6.0	1217	start load; min OAL: 1.260
124	Lead	7.1	1362	never exceed; min OAL: 1.260
130	Jacketed	5.9	1113	start load; min OAL: 1.260
130	Jacketed	6.9	1273	never exceed; min OAL: 1.260
130	Copper Plated	5.9	1138	start load; min OAL: 1.260
130	Copper Plated	6.9	1273	never exceed; min OAL: 1.260
145	Lead	5.1	1047	start load; min OAL: 1.260
145	Lead	6.0	1175	never exceed; min OAL: 1.260
147	Jacketed	5.2	972	start load; min OAL: 1.260
147	Jacketed	6.2	1132	never exceed; min OAL: 1.260
147	Copper Plated	5.3	1007	start load; min OAL: 1.260
147	Copper Plated	6.1	1132	never exceed; min OAL: 1.260
147	XTP	5.7	1073	start load; min OAL: 1.260
147	XTP	6.5	1194	never exceed; min OAL: 1.260
Lee Precision Data Small Pistol Primer. DO NOT USE THESE LOADS IN 38 AUTOMATIC OR 38 ACP. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP	5.6	1,178	starting load; OAL: 1.240 in.: 26,100 psi
115	Hornady HP-XTP	7.2	1,368	maximum load; OAL: 1.240 in.; 34,700 psi
124	Hornady FMJ-FP	6.4	1,205	starting load; OAL: 1.260 in.; 26,100 psi
124	Hornady FMJ-FP	7.5	1,354	maximum load; OAL: 1.260 in.; 34,700 psi
145	Intercast LRN	5.2	1,051	starting load; OAL: 1.260 in.; 26,100 psi
145	Intercast LRN	6.0	1,180	maximum load; OAL: 1.260 in.; 34,700 psi
147	Hornady HP-XTP	5.7	1,078	starting load; OAL: 1.260 in.; 26,100 psi
147	Hornady HP-XTP	6.6	1,197	maximum load; OAL: 1.260 in.; 34,700 psi
Vihtavuori Data primer: small pistol; max. bullet diameter: .356"; max. cartridge length: 1.280"; max. shell length: .900"; trim to .890"; test barrel: 5 1/2; 1 in 16" twist; primers; Winchester WSP; cases: Remington +P, trim-to length: .893"; use maximum loads with caution; loads less than minimum charges shown are not recommended
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP	5.6	1171	starting load; COL (in.): 1.240
115	Hornady HP-XTP	6.3	1266	maximum load; COL (in.): 1.240
115	Rainier RN	6.6	1273	starting load; COL (in.): 1.240
115	Rainier RN	7.3	1355	maximum load; COL (in.): 1.240
124	Hornady FMJ-FP	6.3	1201	starting load; COL (in.): 1.260
124	Hornady FMJ-FP	6.9	1275	maximum load; COL (in.): 1.260
124	Intercast LSWC	6.0	1217	starting load; COL (in.): 1.260
124	Intercast LSWC	6.6	1289	maximum load; COL (in.): 1.260
130	Rainier RN	5.9	1138	starting load; COL (in.): 1.260
130	Rainier RN	6.4	1206	maximum load; COL (in.): 1.260
145	Intercast LRN	5.1	1047	starting load; COL (in.): 1.260
145	Intercast LRN	5.6	1111	maximum load; COL (in.): 1.260
147	Hornady HP/XTP	5.7	1073	starting load; COL (in.): 1.260
147	Hornady HP/XTP	6.1	1134	maximum load; COL (in.): 1.260
147	Rainier RN	5.2	1007	starting load; COL (in.): 1.260
147	Rainier RN	5.7	1070	maximum load; COL (in.): 1.260
115	Sierra FMJ	7.9	1358	starting load; COL (in.): 1.276
115	Sierra FMJ	8.5	1439	maximum load; COL (in.): 1.276
Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Small Pistol; cases: Remington +P, trim-to length: 0.893"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady FMJFN	8.4	1,559	Vihtavuori reloading guide velocities
124	Hornady FMJFN	8.4	1,412
124	Hornady FMJFN	9.0	1,506
135	Bull-X FMJTC	8.0	1,333
147	Speer TMJ	6.5	1,263	Vihtavuori reloading guide velocities
147	Speer TMJ	6.5	1,093
147	Speer TMJ	7.0	1,211
147	Bull-X FMJTC	7.0	1,216
in a CWC 5-inch barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker semiwadcutter	6.0	1,187	case: R-P; primer: Federal 100; coefficient of variation (percent): 1.35; group (inches): 1.10; power factor: 148; good load
125	Bushwacker semiwadcutter	6.4	1,239	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.65; group (inches): 1.10; power factor: 155; good load, maximum
158	Rock Hill roundnose	5.6	1,118	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.54; group (inches): 2.22; power factor: 177; major power factor
158	Rock Hill roundnose	6.0	1,167	case: R-P; primer: Federal 100; coefficient of variation (percent): 0.77; group (inches): 1.42; power factor: 184; major power factor; maximum
in a S&W Model 627PC A Smith & Wesson Model 627PC with a 5.5-inch barrel and a Tasco PDP3 sight was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is based on the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 62 to 77 degrees Fahrenheit. S-L, Starline; S-V, Super Vel; R-P, Remington-Peters; WSP, Winchester Small Pistol.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady FMJFN	8.4	1,430
124	Hornady FMJFN	9.0	1,522
135	Bull-X FMJTC	8.0	1,346
147	Speer TMJ	6.5	1,128
147	Speer TMJ	7.0	1,232
147	Bull-X FMJTC	7.0	1,244
in a Wilson 5.5-inch barrel
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady FMJ	8.4	1,431	Level IV Load
135	Nosler FMJ	8.0	1,346	Level IV Load
147	Speer TMJ	7.0	1,244	Level IV Load
150	Bull-X SWC/LD	6.7	1,244	Level IV Load
Load Data Warning: Level IV loads should be used only in guns with full-support barrels. They must not be fired in standard factory barrels made by Colt and others. These loads are for modern guns in excellent condition chambered for the .38 Super cartridge and should not be fired in guns originally chambered for the .38 Auto. All loads are safe in the author's guns but all powder charges listed for Levels III and IV loads should be reduced by 10 and 20 percent, respectively, for starting loads in other guns. Remington nickel-plated cases were used in all loads. Winchester WSP primers were used in Levels I, II and III loads; Winchester WSR primers were used in Level IV loads.

.38-40 Winchester / .38-40 WCF (Handgun)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer FN or CM	7.8	772	start charge
180	Speer FN or CM	8.4	808	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.592"; RCBS shell holder: #35; cart. case: Winchester; primer: CCI 300; test firearm: Colt New Service; barrel length: 4.5"; NOTE: These bullets were cast in RCBS moulds. maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer FN or CM	7.8	1234	start charge
180	Speer FN or CM	8.4	1314	maximum charge
Speer Reloading Manual #14 max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.592"; RCBS shell holder: #35; cart. case: Winchester; primer: CCI 300; test firearm: Universal Receiver; barrel length: HS Precision 24"; bullets were cast in RCBS moulds; maximum loads should be used with CAUTION

.40 Smith & Wesson / .40 S&W (Handgun)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer TMJ FN or GDHP	6.8	858	start charge
155	Speer TMJ FN or GDHP	7.6	1061	maximum charge
165	Speer TMJ FN or GDHP	6.7	989	start charge; approximate 165-gr law enforcement loads ("40 Lite")
165	Speer TMJ FN or GDHP	7.5	1106	maximum charge
180	Speer GDHP SB, TMJ FN or GDHP	6.2	804	start charge
180	Speer GDHP SB, TMJ FN or GDHP	6.9	987	maximum charge
Speer Reloading Manual #14 max. case length: 0.850"; trim-to length: 0.840"; max cart. OAL: 1.135"; RCBS shell holder: #27; cart. case: Speer; primer: CCI 500; test firearm: Smith & Wesson M4006; barrel length: 4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Copper Plated	7.2	1167	start load; compressed charge; min. OAL: 1.126
155	Copper Plated	8.1	1296	NEVER EXCEED; compressed load; min. OAL 1.126
155	XTP	6.6	1115	start load; min. OAL: 1.126
155	XTP	7.6	1263	NEVER EXCEED; compressed charge; min. OAL: 1.126
Lee Precision 155 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Jacketed	5.8	1005	start load; min. OAL: 1.126
170	Jacketed	6.8	1161	NEVER EXCEED; min. OAL: 1.126
Lee Precision 170 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Jacketed Bullet	5.9	1018	start load; min. OAL: 1.126
180	Jacketed Bullet	6.7	1142	NEVER EXCEED; min. OAL: 1.126
Lee Precision 180 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	5.3	884	start load; min. OAL: 1.126
200	Jacketed	6.0	991	NEVER EXCEED; min. OAL: 1.126
Lee Precision 200 GR Data Do not use reloads in Glock or similar guns with chambers that do not fully support the cartridge due to the intrusion of the feed ramp. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Speer Gold Dot TMJ or GD-HP	7.7	1082	maximum load
155	Speer Gold Dot TMJ or GD-HP	6.9	871
165	Speer Gold Dot TMJ or GD-HP	7.5	1106	maximum load
165	Speer Gold Dot TMJ or GD-HP	6.7	989	approximate 40 S&W 165 grain law enforcement version ("40 Lite")
180	Speer Gold Dot TMJ or GD-HP	6.9	987	maximum load
180	Speer Gold Dot TMJ or GD-HP	6.2	804
Speer Reloading Manual #13 max. case length: 0.850"; trim-to length: 0.840"; max. cart. length: 1.135"; RCBS shellholder: #27; barrel length: 4"; twist: 1-16"; test firearm: Smith & Wesson Model 4006; case: Speer; primers: CCI 500; bullet diam.: .400"; use maximum loads with caution; SAFETY NOTICE Some pistols chambered for the 40 S&W cartridge may not provide complete support of the case head. If this condition exists, normal pressure loads such as those shown here can cause the case wall to bulge or rupture at the unsupported point. Contact your firearm manufacturer to determine if your pistol completely supports the case head, or ask a gunsmith to inspect your pistol before using it with ANY ammunition. It is the gun owner's responsibility to know his firearm and its capabilities and limitations.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Sierra JHP	6.9	968
135	Sierra JHP	7.2	1008
135	Sierra JHP	7.4	1054
135	Sierra JHP	7.7	1100
135	Sierra JHP	7.9	1144
135	Sierra JHP	8.2	1188
135	Sierra JHP	8.4	1234
135	Sierra JHP	8.7	1280
135	Sierra JHP	8.9	1319	maximum load
150	Sierra JHP	6.0	806
150	Sierra JHP	6.3	859
150	Sierra JHP	6.6	921
150	Sierra JHP	6.9	983
150	Sierra JHP	7.1	1042
150	Sierra JHP	7.4	1104
150	Sierra JHP	7.7	1166
150	Sierra JHP	8.0	1218	maximum load
165	Sierra JHP	5.7	881
165	Sierra JHP	6.0	921
165	Sierra JHP	6.3	967
165	Sierra JHP	6.6	1013
165	Sierra JHP	6.9	1059
165	Sierra JHP	7.2	1105
165	Sierra JHP	7.5	1146	maximum load
180	Sierra JHP	5.4	886
180	Sierra JHP	5.7	920
180	Sierra JHP	6.0	960
180	Sierra JHP	6.4	1000
180	Sierra JHP	6.7	1040
180	Sierra JHP	7.0	1076	maximum load
Using Sierra Bullets Notes: Gun: Glock Model 22; barrel length: 4.35"; case: Starline; primer: Winchester Small Pistol; bullet diameter: .400"; 135 GR Sierra JHP COAL: 1.125"; 150 GR Sierra JHP COAL: 1.125"; 165 GR Sierra JHP COAL: 1.125"; 180 GR Sierra JHP COAL: 1.125"; maximum COAL: 1.135"; maximum case length: .850"; trim to length: .845".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
135	Hornady HP-XTP	6.6	1152	starting load
135	Hornady HP-XTP	7.0	1189	maximum load
155	Rainier FP	7.1	1171	starting load
155	Rainier FP	7.4	1213	maximum load
170	Hornady HP	5.9	1056	starting load
170	Hornady HP	6.2	1091	maximum load
180	Speer HP	5.9	1047	starting load
180	Speer HP	6.2	1078	maximum load
200	Speer TMJ	5.2	892	starting load
200	Speer TMJ	5.5	925	maximum load
Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Small Pistol; cases: Remington, trim-to length: 0.843"; COL (in.): 1.126; This data is intended for use in firearms with barrels which fully support the cartridge in the chamber. Use of this data in firearms which do not fully support the cartridge may result in bulged cases, ruptured cases, case head separation, or other conditions which may result in damage to the firearm and/or result in injury or death of the shooter and/or bystanders. Loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.40 Smith & Wesson Long-Loaded / .40 S&W Long-Loaded

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Flat Point	5.0	888	starting load; OAL: 1.190
200	Flat Point	5.4	944	maximum load; OAL: 1.190
Oregon Trail Major Factor Handgun Loads test gun: Entreprise, 5" Bar-Sto, WSP; Major power factor IPSC loads. Do not exceed maximum loads; NEVER REDUCE STATED OVERALL LENGTHS. These loads should only be used in 1911-type pistols with fully supported chambers. Taper crimp at .420"

.41 Magnum / .41 Remington Magnum (Handgun)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	9.0	1049	start charge
200	Speer JHP-SWC	10.0	1172	maximum charge
210	Speer GDHP	9.8	1035	start charge
210	Speer GDHP	10.5	1110	maximum charge
220	Speer JSP-SWC	8.6	960	start charge
220	Speer JSP-SWC	9.6	1076	maximum charge
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #30; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: S&W Model 57; barrel length: 6"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Jacketed	11.1	1368	start load; min OAL: 1.579
170	Jacketed	13.0	1526	never exceed; min OAL: 1.579
210	XTP	10.4	1221	start load; min OAL: 1.579
210	XTP	11.8	1339	never exceed; min OAL: 1.579
Lee Precision Data CAUTION: With NEVER EXCEED LOADS; maintain Minimum Over All Length or longer. (Modern Reloading, Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra Jacketed HC	11.1	1302	sugg. start load; 1.580" OAL; 24,700 cup
170	Sierra Jacketed HC	12.4	1472	max load; 1.580" OAL; 35,600 cup
Lyman Reloading Handbook 49th Edition cases: Winchester; trim-to length: 1.280"; primers: Winchester WLP; primer size: Large Pistol; Lyman shell holder: No. 30; firearm used: Universal Receiver; barrel length: 4"; twist: 1-18 3/4"; groove dia.: .409"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer JHP-SWC	9.0	1,049
200	Speer JHP-SWC	10.1	1,180	maximum load
210	Speer JSP-SWC	8.5	960	can also be used with 220 grain bullet
210	Speer JSP-SWC	9.5	1,076	maximum load; can also be used with 220 grain bullet
Speer Reloading Manual #13 Max. Case Length: 1.290"; Trim-to Length: 1.280"; Max. Cart. Length: 1.590"; RCBS Shellholder: #30; Barrel Length: 6"; Twist: 1-18.75"; Test Firearm: Smith & Wesson Model 57; Case: W-W; Primers: CCI 350; Update: Alliant Powder Company does not recommend Blue Dot in the .41 Magnum for any bullet weights. Their new tests on recent powder samples have shown high pressure spikes that can damage personal property or injure you. For this reason we removed all Blue Dot data from .41 magnum tables.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
210	Speer GDHP	9.8	1255	start charge
210	Speer GDHP	10.5	1314	maximum charge
Speer Reloading Manual #14 max. case length: 1.290"; trim-to length: 1.280"; max cart. OAL: 1.590"; RCBS shell holder: #30; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Marlin 1894; barrel length: 20"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
170	Sierra JHC	11.1	1362	starting load
170	Sierra JHC	12.5	1480	maximum load
210	Hornady HP/XTP	10.3	1224	starting load
210	Hornady HP/XTP	11.4	1312	maximum load
Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 18 3/4" twist; primers: Large Pistol; cases: W-W Super, trim-to length: 1.280"; COL (in.): 1.579; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.44 Remington Magnum / .44 Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
240	Hornady XTP	11.5	1220	rounds per pound: 609
Economical Midrange Loads firearm used: Ruger Super Blackhawk; primer: CCI 300 (except where otherwise specified in remarks); case: W-W; barrel length: 7 1/2"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer Mag JHP	11.7	1267	start charge
200	Speer Mag JHP	13.0	1378	maximum charge
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	10.4	1155	start charge
240	Speer Mag JHP, Mag GDHP, Mag GDSP or Mag JSP	11.6	1212	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.610"; RCBS shell holder: #18; cart. case: Speer; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Redhawk; barrel length: 7.5"; NOTE: The 225-grain SWC GC and 250-grain K bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	XTP	13.2	1430	start load; min OAL: 1.602
180	XTP	15.2	1568	never exceed; min OAL: 1.602
200	XTP	12.1	1320	start load; min OAL: 1.602
200	XTP	14.5	1476	never exceed; min OAL: 1.602
220	Jacketed	12.1	1274	start load; min OAL: 1.602
220	Jacketed	14.6	1430	never exceed; min OAL: 1.602
240	Jacketed	11.6	1202	start load; min OAL: 1.602
240	Jacketed	12.7	1301	never exceed; min OAL: 1.602
250	Jacketed	11.0	1166	start load; min OAL: 1.602
250	Jacketed	13.0	1286	never exceed; min OAL: 1.602
267	Lead	10.9	1107	start load; min OAL: 1.681
267	Lead	12.6	1254	never exceed; min OAL: 1.681
300	Jacketed	9.4	935	start load; min OAL: 1.717
300	Jacketed	10.9	1062	never exceed; min OAL: 1.717
300	XTP	10.1	999	start load; min OAL: 1.717
300	XTP	11.6	1119	never exceed; min OAL: 1.717
Lee Precision Data Large pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	13.7	1470	starting load; COL (in.): 1.602
180	Hornady HP-XTP	15.3	1578	maximum load; COL (in.): 1.602
200	Hornady HP-XTP	12.8	1365	starting load; COL (in.): 1.602
200	Hornady HP-XTP	14.6	1487	maximum load; COL (in.): 1.602
220	Sierra FPJ-Match	12.8	1319	starting load; COL (in.): 1.602
220	Sierra FPJ-Match	14.8	1441	maximum load; COL (in.): 1.602
240	Hornady JTC-SIL	11.9	1230	starting load; COL (in.): 1.602
240	Hornady JTC-SIL	12.8	1308	maximum load; COL (in.): 1.602
250	Sierra FPJ-Match	11.6	1201	starting load; COL (in.): 1.602
250	Sierra FPJ-Match	13.1	1295	maximum load; COL (in.): 1.602
300	Hornady HP-XTP	10.5	1033	starting load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
300	Hornady HP-XTP	11.7	1128	maximum load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
300	Sierra JSP	9.9	971	starting load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
300	Sierra JSP	11.1	1071	maximum load; COL (in.): 1.717; the cartridge overall length exceeds the CIP maximum
267	Intercast LFN	11.4	1181	starting load; COL (in.): 1.681; the cartridge overall length exceeds the CIP maximum
267	Intercast LFN	12.7	1262	maximum load; COL (in.): 1.681; the cartridge overall length exceeds the CIP maximum
Vihtavuori Reloading Guide 6 test barrel: 7", 1 in 20" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.275"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.44 Special

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	XTP	9.9	1084	start load; min OAL: 1.469
180	XTP	10.5	1148	never exceed; min OAL: 1.469
200	XTP	9.1	999	start load; min OAL: 1.469
200	XTP	9.9	1079	never exceed; min OAL: 1.469
220	Jacketed	7.7	862	start load; min OAL: 1.469
220	Jacketed	8.6	948	never exceed; min OAL: 1.469
240	Jacketed	7.5	817	start load; min OAL: 1.480
240	Jacketed	8.2	889	never exceed; min OAL: 1.480
250	Jacketed	6.7	761	start load; min OAL: 1.469
250	Jacketed	7.6	853	never exceed; min OAL: 1.469
267	Lead	7.3	849	start load; min OAL: 1.539
267	Lead	8.0	925	never exceed; min OAL: 1.539
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Large Pistol Primer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer Jacketed HP	6.8	715	sugg. start load; 1.460" OAL; 10,100 cup
225	Speer Jacketed HP	7.8	819	max load; 1.460" OAL; 12,500 cup
240	Speer Jacketed SP	6.7	685	sugg. start load; 1.465" OAL; 9,100 cup
240	Speer Jacketed SP	7.7	815	max load; 1.465" OAL; 13,000 cup
Lyman Reloading Manual 49th Edition cases: Winchester; trim-to length: 1.150"; primers: CCI 300; primer size: Large Pistol; Lyman shell holder: No. 7; firearm used: Universal Receiver; barrel length: 4" & 7 1/2"; twist: 1-20"; groove dia.: .429"
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer SWC GC	8.0	935	start charge
225	Speer SWC GC	8.7	1025	maximum charge
250	Speer K	7.0	774	start charge
250	Speer K	7.7	883	maximum charge
200	Speer GDHP SB	8.0	823	start charge
200	Speer GDHP SB	8.8	952	maximum charge
Speer Reloading Manual #14 max. case length: 1.160"; trim-to length: 1.150"; max cart. OAL: 1.615"; RCBS shell holder: #18; cart. case: Remington; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Cimarron SAA; barrel length: 5.5"; NOTE: The 200-grain FN & CM, the 225-grain SWC GC and the 250-grain K bullets were cast in RCBS moulds. RCBS crimp-on gas checks used for the 225-grain SWC GC bullets. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	7.7	567	Do Not Reduce
180	Hornady HP-XTP	8.2	661
180	Hornady HP-XTP	8.6	755
180	Hornady HP-XTP	9.0	849	maximum load
200	Hornady HP-XTP	6.7	533	Do Not Reduce
200	Hornady HP-XTP	7.1	590
200	Hornady HP-XTP	7.5	660
200	Hornady HP-XTP	7.9	728
200	Hornady HP-XTP	8.3	795
200	Hornady HP-XTP	8.7	860	maximum load
240	Hornady HP-XTP or CL-SIL	6.3	559	Do Not Reduce
240	Hornady HP-XTP or CL-SIL	6.7	636
240	Hornady HP-XTP or CL-SIL	7.2	712	maximum load
240	Hornady SWC-HP or SWC	6.1	577
240	Hornady SWC-HP or SWC	6.5	625
240	Hornady SWC-HP or SWC	6.8	673
240	Hornady SWC-HP or SWC	7.2	722	maximum load
Using Hornady Bullets Gun: Smith & Wesson 624; barrel length: 4 inches; case: Starline; primer: Winchester Large Pistol; bullet diameter: 0.430"; 180 GR Hornady HP-XTP COAL: 1.480"; FP-Cowboy COAL: 1.490"; 200 GR HP-XTP COAL: 1.470"; 240 GR HP-XTP & CL-SIL COAL: 1.480"; 240 GR SWC-HP & SWC COAL: 1.490"; maximum COAL: 1.500"; maximum length: 1.160"; trim to length: 1.150".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Hornady HP-XTP	9.9	1043	starting load; COL (in.): 1.469
180	Hornady HP-XTP	10.5	1148	maximum load; COL (in.): 1.469
200	Hornady HP-XTP	9.1	971	starting load; COL (in.): 1.469
200	Hornady HP-XTP	9.9	1079	maximum load; COL (in.): 1.469
220	Sierra FPJ-Match	7.7	833	starting load; COL (in.): 1.469
220	Sierra FPJ-Match	8.6	948	maximum load; COL (in.): 1.469
240	Hornady JTC-Sil	7.6	784	starting load; COL (in.): 1.480
240	Hornady JTC-Sil	8.2	889	maximum load; COL (in.): 1.480
250	Sierra FPJ	6.8	751	starting load; COL (in.): 1.469
250	Sierra FPJ	7.6	853	maximum load; COL (in.): 1.469
267	Intercast LFN	7.3	850	starting load; COL (in.): 1.539
267	Intercast LFN	8.0	925	maximum load; COL (in.): 1.539
Vihtavuori Loading Guide 6 test barrel: 6", 1 in 18" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.153"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.44 WCF / .44-40 Winchester (Handgun)

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	9.0	848	start charge
200	Speer FN or CM	9.5	952	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.590"; RCBS shell holder: #35; cart. case: Remington; primer: CCI 300; test firearm: Colt New Service; barrel length: 5.5"; NOTE: Bullets were cast in RCBS moulds. Maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Speer FN or CM	9.0	1284	start charge
200	Speer FN or CM	9.5	1347	maximum charge
Speer Reloading Manual #14 max. case length: 1.305"; trim-to length: 1.295"; max cart. OAL: 1.592"; RCBS shell holder: #35; cart. case: Remington; primer: CCI 300; test firearm: Universal Receiver; barrel length: HS Precision 24"; bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
214	RCBS cast 44-200-FN	9.5	807	extreme spread (fps): 44
13,000 CUP Sixgun Loads A Colt Frontier Six Shooter with a 7 1/2-inch barrel was used in developing the load data. Winchester Large Pistol primers and Starline cases were used throughout. Temperature during testing was 40 degrees Fahrenheit.

.45 ACP

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	6.8	921	start load; min OAL: 1.240
200	Jacketed	7.5	1011	never exceed; min OAL: 1.240
230	Jacketed	6.8	885	start load; min OAL: 1.260
230	Jacketed	7.3	935	never exceed; min OAL: 1.260
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer Colt JHP	7.2	797	start charge
225	Speer Colt JHP	8.0	907	maximum charge
230	Speer GDHP SB or GDHP	6.3	730	start charge
230	Speer GDHP SB or GDHP	7.1	826	maximum charge
Speer Reloading Manual #14 max. case length: 0.898"; trim-to length: 0.888"; max cart. OAL: 1.275"; RCBS shell holder: #3; cart. case: Speer; primer: CCI 300; test firearm: SIG P220; barrel length: 4.4"; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. NOTE: Do not use the 230-GR TMJ RN loads with Gold Dot HP; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Rainier FN	8.8	1065	starting load; COL (in.): 1.201
185	Rainier FN	9.4	1170	maximum load; COL (in.): 1.201
200	Hornady FMJ-CT	6.7	916	starting load; COL (in.): 1.240
200	Hornady FMJ-CT	7.3	996	maximum load; COL (in.): 1.240
230	Hornady FMJ-RN	6.7	845	starting load; COL (in.): 1.260
230	Hornady FMJ-RN	7.2	920	maximum load; COL (in.): 1.260
Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 0.893"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady FMJ-CT	6.9	943	OAL (in.): 1.240; starting load; 15,000 psi
200	Hornady FMJ-CT	7.9	1,057	OAL (in.): 1.240; maximum load; 20,000 psi
230	Hornady FMJ-RN	6.9	870	OAL (in.): 1.260; starting load; 15,000 psi
230	Hornady FMJ-RN	7.6	978	OAL (in.): 1.260; maximum load; 20,000 psi
Vihtavuori Reloading Manual Second Edition test barrel: 6":, 1 in 16" twist, manufactured to meet CIP minimum dimensions; primers: Winchester WLP; cases: Remington, trim-to length: .893"; pressure limits based on SAAMI March 9, 1993, pressure measurement according to CIP; loads less than minimum charges shown are not recommended; use maximum loads with caution
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady XTP-HP	7.0	899
in a Kimber 1911 The .45 ACP Kimber Classic Model Custom's maximum case length is .898 inch; trim-to length is .888 inch. Starline cases used in all loads, and all handguns have barrel lengths of 5 inches. Primer: Federal 150 Gold Match.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady HP/XTP	7.0	899
230	Hornady HP/XTP	7.5	948	accurate
230	Hornady HP/XTP	8.0	1,018	maximum
in a Kimber Custom Classic Warning! Barrel length: 5 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady HP/XTP	7.0	881
230	Hornady HP/XTP	7.5	920	very accurate
230	Hornady HP/XTP	8.0	1,009	accurate; hunting load
in an S&W Model 625-6 Warning! Barrel length: 4 inches. Starline brass and Federal Gold Medal 150 Match primers used throughout. Temperature during testing was 75 degrees.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Laser Cast SWC	6.5	885	overall loaded length (inches): 1.240
200	Laser Cast SWC	7.5	986	overall loaded length (inches): 1.240
200	Montana LBT-RFN	6.5	764	overall loaded length (inches): 1.241
200	Montana LBT-RFN	7.5	870	overall loaded length (inches): 1.241
Load Data A Kimber Model 1911 Classic Custom Target with a 5-inch barrel (1-in-16-inch twist) was used to fire all loads. Starline cases and Federal Gold Medal Match 150 primers were used throughout. Maximum case length: .898 inch; trim length: .888 inch. Maximum overall cartridge length: 1.275 inches; minimum overall cartridge length: 1.190 inches.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
230	Hornady HP-XTP	7.0	910	overall loaded length (inches): 1.230
Remington Enhanced Model 1911 R1 All loads used Federal Gold Medal Match 150 primers and Starline cases. Minimum cartridge OAL: 1.190 inches; maximum cartridge OAL: 1.275 inches; maximum case length: .898 inch; and trim length: .888 inch. Temperature was 33 degrees Fahrenheit during testing.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Hornady XTP	7.1	800	muzzle energy (ft-lb): 284
230	Hornady XTP	6.9	830	group (inches): 3.08; muzzle energy (ft-lb): 352
Taurus Stellar Tracker Taurus Stellar Tracker with a 4-inch barrel and open sights was used for testing. Accuracy is based on the average of three, five-shot groups at 15 yards from a benchrest.

.45 Auto Rim

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
200	Jacketed	6.1	847	start load; min OAL: 1.240
200	Jacketed	6.7	930	never exceed; min OAL: 1.240
230	Jacketed	6.1	814	start load; min OAL: 1.260
230	Jacketed	6.6	860	never exceed; min OAL: 1.260
Lee Precision Data CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
265	cast RCBS 45-255-SWC	6.5	853
280	cast RCBS 45-270-SAA	5.5	698
280	cast RCBS 45-270-SAA	6.0	770
Data All the velocities were obtained from a Model 625-6 with a 4-inch barrel, except where noted with a 6 1/2-inch barreled S&W Model 25-2. For reference, the 4-inch barrel was commonly producing around 10 to 30 fps less velocity than the 6 1/2-inch barrel. Starline cases and Federal 150 Gold Medal primers were used throughout. Maximum case length: .898 inch; trim-to length: .888 inch.

.45 Colt

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Lead	11.1	1147	start load; min. OAL: 1.594
180	Lead	12.3	1262	never exceed; min. OAL: 1.594
250	XTP	10.5	983	start load; min. OAL: 1.673
250	XTP	10.9	1022	never exceed; min. OAL: 1.673
Lee Precision Data Large Pistol primer; with NEVER EXCEED LOADS maintain Minimum Over All Length or longer (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
250	Speer Colt GDHP	11.0	973	start charge
250	Speer Colt GDHP	12.0	1105	maximum charge
(Ruger & Contender Only ) Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Ruger Blackhawk; barrel length: 7.5"; maximum loads should be used with CAUTION; NOTE: Do not use in any other make or model firearm. IMPORTANT SAFETY NOTE: Since Speer #14 Manual was published, Ruger has replaced the original Vaquero revolver with a smaller version called the New Vaquero. Ruger has advised the industry that the New Vaquero must not be fired with loads exceeding industry pressure standards (14,000 psi). If loading for a New Vaquero, use the standard pressure data in the .45 Colt Handgun Speer Data.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	8.8	962	start charge
225	Speer CAV	9.7	1059	maximum charge
Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300; test firearm: Winchester Model 95 "Trapper"; barrel length: 16"; bullets: 225-grain Speer CAV or 230-grain Speer CM; bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Intercast LSWC	11.6	1191	starting load
180	Intercast LSWC	12.8	1309	maximum load
185	Hornady HP/XTP	12.3	1135	starting load
185	Hornady HP/XTP	13.2	1253	maximum load
185	Rainier FN	12.3	1135	starting load
185	Rainier FN	13.6	1276	maximum load
250	Hornady HP/XTP	10.7	974	starting load
250	Hornady HP/XTP	11.2	1053	maximum load
Vihtavuori Reloading Guide 6 test barrel: 6", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 1.279"; COL (in.): 1.594 (except where otherwise specified in remarks); loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV or 230 CM	8.8	783	start charge
225	Speer CAV or 230 CM	9.7	857	maximum charge
255	Speer SWC	8.6	717	start charge
255	Speer SWC	9.5	847	maximum charge
Handgun Speer Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.600"; RCBS shell holder: #20; cart. case: Winchester; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Colt Single Action Army; barrel length: 5.5"; NOTE: the 255 SWC, 225 CAV & 230 CM bullets were cast in RCBS moulds; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
255	Rim Rock cast SWC GC	12.0	1081	overall loaded length (inches): 1.576
255	Rim Rock cast SWC GC	12.5	1020	overall loaded length (inches): 1.576
255	Rim Rock cast SWC GC	13.0	1171	overall loaded length (inches): 1.576
280	RCBS cast 45-270-SAA	11.0	1037	overall loaded length (inches): 1.653
280	RCBS cast 45-270-SAA	12.0	1104	overall loaded length (inches): 1.653; potentially the most accurate powder with that bullet
in a Ruger New Model Blackhawk (+P Pressure 23,000 psi) These loads exceed SAAMI pressure limits for the .45 Colt and should only be used in Ruger New Model Blackhawk revolvers, or firearms of similar strength. Barrel length: 5 1/2 inches; Starline cases used throughout. CCI 300 primers used in all loads except with H-110 powder, where Federal 155 primers were used. Temperature during testing was 70 to 85 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
285	RCBS 45-270-SAA cast	9.0	892	excellent accuracy
Load Data ( 14,000 psi) primer: CCI 300
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
280	RCBS 45-270-SAA cast	10.0	970
Load Data (20,000 psi) primer: CCI 300 except where specified otherwise in remarks

.45 Smith & Wesson Schofield / .45 S&W Schofield

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
225	Speer CAV	5.9	570	start charge
225	Speer CAV	6.6	655	maximum charge
Speer Reloading Manual #14 Cowboy Action Shooting Data; max. case length: 1.090"; trim-to length: 1.080"; max cart. OAL: 1.430"; RCBS shell holder: #35; cart. case: Starline; primer: CCI 300; test firearm: Colt Single Action Army; barrel length: 5.5"; a 230-GR Speer CM can also be used for these loads; NOTE: these bullets were cast in RCBS moulds; maximum loads should be used with CAUTION

.45 Winchester Magnum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady HP/XTP	12.5	1478	starting load; COL (in.): 1.516
185	Hornady HP/XTP	15.3	1678	maximum load; COL (in.): 1.516
250	Hornady HP/XTP	10.0	1014	starting load; COL (in.): 1.504
250	Hornady HP/XTP	12.0	1224	maximum load; COL (in.): 1.504
Vihtavuori Reloading Guide 6 test barrel: 12", 1 in 16" twist; primers: Large Pistol; cases: Winchester, trim-to length: 1.192"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!

.454 Casull

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	XTP	18.2	1772	start load; min OAL: 1.642
185	XTP	21.4	1959	never exceed; min OAL: 1.642
Lee Precision Data With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. Small Rifle primer. NOTE: Industry standard cup pressure is 53,000. Some of the hard core bullet loads exceed this value. Use maximum loads with caution.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
185	Hornady HP/XTP	18.2	1762	starting load; COL (in.): 1.642; crimping is done over the bullet ogive
185	Hornady HP/XTP	21.4	1946	maximum load; COL (in.): 1.642; crimping is done over the bullet ogive
Vihtavuori Reloading Guide 6 test barrel: 9 1/2", 1 in 24" twist; primers: Small Rifle; cases: Freedom Arms, trim-to length: 1.311"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
270	Speer SAA	10.0	930	start charge; case: Starline
270	Speer SAA	12.0	1087	maximum charge; case: Starline
250	Speer Colt GDHP or 260 JHP	13.0	1129	start charge; case: Starline
250	Speer Colt GDHP or 260 JHP	15.0	1277	maximum charge; case: Starline
Reduced Recoil Loads Speer Reloading Manual #14 max. case length: 1.383"; trim-to length: 1.373"; max cart. OAL: 1.765"; RCBS shell holder: #20; cart. case: Winchester and Starline; primer: CCI 400; test firearm: Freedom Arms; barrel length: 7.5"; NOTE: The 270 grain SAA bullets were cast in RCBS moulds; use maximum loads with CAUTION

.475 Linebaugh

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
325	Speer GDSP	14.5	1065	start charge
325	Speer GDSP	16.5	1220	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.400"; trim-to length: 1.390"; max cart. OAL: 1.765"; RCBS shell holder: #40; cart. case: Buffalo Bore; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Freedom Arms M767; barrel length: 6"; Important Safety Note: Older developed in cut-down 45-70 cases must not be used in new Buffalo Bore or Hornady cases, as high pressures will result; maximum loads should be used with CAUTION

.480 Ruger

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
275	Speer GDHP	14.0	1205	start charge
275	Speer GDHP	16.0	1341	max charge
Speer Handgun Data Reloading Manual #14 max. case length: 1.285"; trim-to length: 1.275"; max cart. OAL: 1.650"; RCBS shell holder: #40; cart. case: Hornady; primer: CCI 300 (except where otherwise noted in remarks); test firearm: Ruger Redhawk; barrel length: 9.5"; maximum loads should be used with CAUTION

10mm Auto

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Copper Plated	8.0	1243	start load; min OAL: 1.256
155	Copper Plated	8.9	1378	never exceed; min OAL: 1.256
155	XTP	7.1	1178	start load; min OAL: 1.256
155	XTP	8.4	1316	never exceed; min OAL: 1.256
180	Jacketed	5.9	1076	start load; min OAL: 1.256
180	Jacketed	7.2	1184	never exceed; min OAL: 1.256
200	Jacketed	5.3	898	start load; min OAL: 1.256
200	Jacketed	6.3	1047	never exceed; min OAL: 1.256
Lee Precision Data Large Pistol Primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer. (Modern Reloading - Second Edition - Richard Lee)
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer TMJ FN or GDHP	8.9	1077	start charge
180	Speer TMJ FN or GDHP	9.7	1152	maximum charge
Speer Reloading Manual #14 max. case length: 0.992"; trim-to length: 0.982"; max cart. OAL: 1.260"; RCBS shell holder: #27; cart. case: Hornady; primer: CCI 300 (except where otherwise specified in remarks); test firearm: Smith & Wesson M1006; barrel length: 5"; maximum loads should be used with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady HP-XTP	7.3	1,192	starting load; 26,800 psi
155	Hornady HP-XTP	8.6	1,331	maximum load; 35,700 psi
180	Speer HP	6.1	1,088	starting load; 26,800 psi
180	Speer HP	7.4	1,195	maximum load; 35,700 psi
200	Hornady FMJ/FP	5.4	945	starting load; 26,800 psi
200	Hornady FMJ/FP	6.4	1,059	maximum load; 35,700 psi
Vihtavuori Data - Second Edition test barrel: 5 1/2; 1 in 16" twist; manufactured to meet CIP minimum dimensions; primers: Winchester WLP; cases: Winchester; trim-to length: .988"; max. bullet diameter: .400"; max. cartridge length: 1.260"; max. shell length: .992"; trim to .985"; OAL (in.) 1.256
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
155	Hornady HP-XTP	6.4	1178	starting load
155	Hornady HP-XTP	7.8	1247	maximum load
155	Rainier FP	7.6	1243	starting load
155	Rainier FP	8.5	1311	maximum load
180	Speer HP	5.2	1076	starting load
180	Speer HP	6.6	1130	maximum load
200	Hornady FMJ/FP	4.7	932	starting load
200	Hornady FMJ/FP	5.8	989	maximum load
Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 16" twist; primers: Large Pistol; cases: Remington, trim-to length: 0.988"; COL (in.): 1.256; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
140	Barnes XPB	7.0	1200
140	Barnes XPB	8.0	1308
140	Barnes XPB	8.8	1402
155	Speer Gold Dot HP	7.0	994
155	Speer Gold Dot HP	7.8	1109
155	Speer Gold Dot HP	8.5	1229
180	Speer Gold Dot HP	8.5	1225
180	Speer Gold Dot HP	9.0	1270
180	Speer Gold Dot HP	9.5	1327
180	Speer Gold Dot HP	10.0	1379
200	Hornady XTP/HP	5.5	883
200	Hornady XTP/HP	6.0	945
200	Hornady XTP/HP	6.5	1014
Handloads A Kimber Model 1911 Stainless Target II with a one-in-16-inch twist, 5-inch barrel was used for testing loads. Starline brass and CCI 300 Large Pistol primers used throughout. Maximum overall cartridge length: 1.260 inches; maximum case length: 0.992 inch; trim-to length: 0.982 inch. Maximum SAAMI pressure: 37,500 psi.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
180	Speer Gold Dot HP	10.0	1379
in a Kimber 1911 The 10mm Auto Kimber Stainless Target II's maximum case length: .992 inch; trim to length: .982 inch; primer: CCI 300. Starline cases used in all loads, and all handguns have barrel lengths of 5 inches.

9mm Luger / 9mm Parabellum

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hornady HPBT-XTP	3.6	823	overall loaded length (inches): 1.100
147	Hornady HPBT-XTP	4.6	1015	overall loaded length (inches): 1.100
(147 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP	4.9	1072	overall loaded length (inches): 1.075
115	Hornady HP-XTP	5.7	1224	overall loaded length (inches): 1.075
(90 & 115 GR) Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	XTP	6.6	1417	start load; min OAL: 1.063
90	XTP	7.4	1522	never exceed; min OAL: 1.063
115	Copper Plated	5.8	1217	start load; min OAL: 1.142
115	Copper Plated	6.5	1304	never exceed; min OAL: 1.142
115	XTP	6.0	1243	start load; min OAL: 1.142
115	XTP	6.6	1318	never exceed; min OAL: 1.142
120	Jacketed	6.0	1194	start load; min OAL: 1.130
120	Jacketed	6.5	1277	never exceed; min OAL: 1.130
124	Jacketed	5.6	1161	start load; min OAL: 1.142
124	Jacketed	6.1	1232	never exceed; min OAL: 1.142
124	Lead	5.1	1148	start load; min OAL: 1.142
124	Lead	5.6	1205	never exceed; min OAL: 1.142
124	Copper Plated	5.5	1135	start load; min OAL: 1.142
124	Copper Plated	6.1	1216	never exceed; min OAL: 1.142
145	Lead	4.3	991	start load; min OAL: 1.142
145	Lead	4.8	1066	never exceed; min OAL: 1.142
147	Copper Plated	4.3	955	start load; min OAL: 1.142
147	Copper Plated	4.8	1033	never exceed; min OAL: 1.142
147	XTP	4.7	1010	start load; min OAL: 1.142
147	XTP	5.1	1089	never exceed; min OAL: 1.142
150	Jacketed	4.4	951	start load; min OAL: 1.130
150	Jacketed	4.7	1012	never exceed; min OAL: 1.130
130	Jacketed	5.2	1096	start load; min OAL: 1.142
130	Jacketed	5.6	1148	never exceed; min OAL: 1.142
Lee Precision Data Small pistol primer. CAUTION: With NEVER EXCEED LOADS maintain Minimum Over All Length or longer.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer GDHP or TMJ RN	5.8	1109	start charge
115	Speer GDHP or TMJ RN	6.5	1210	maximum charge
Speer Reloading Manual #14 max. case length: 0.754"; trim-to length: 0.744"; max cart. OAL: 1.169"; RCBS shell holder: #16; cart. case: Speer; primer: CCI 500; test firearm: S&W M5906; barrel length: 4"; 147-grain bullets not recommended for barrels longer than 10 inches; IMPORTANT SAFETY NOTE: These loads were developed and tested for safe use in HANDGUNS. Not all loads may be suitable for use in a carbine or rifle chambered for this cartridge. If loading for a carbine or rifle, choose from among the loads developing the highest handgun velocities and load just a few rounds. Thoroughly test this small sample in your firearm in slow-fire mode, insuring that you achieve proper feeding and ejection. Be certain that all bullets exit the barrel; watching the target for each bullet strike is the best way to know that the load produces sufficient gas volume for a longer barrel. Use maximum loads with CAUTION
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Hornady HP-XTP or FMJ-RN	4.9	1072
115	Hornady HP-XTP or FMJ-RN	5.2	1123
115	Hornady HP-XTP or FMJ-RN	5.5	1174
115	Hornady HP-XTP or FMJ-RN	5.7	1224	maximum load
Using 115 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; HP-XTP COAL: 1.075"; FMJ-RN COAL: 1.100"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady HP-XTP	4.4	970
124	Hornady HP-XTP	4.6	1023
124	Hornady HP-XTP	4.9	1076
124	Hornady HP-XTP	5.2	1128	maximum load
Using 124 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.060"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	Hornady HP-BT-XTP	3.6	823
147	Hornady HP-BT-XTP	3.8	964
147	Hornady HP-BT-XTP	4.1	915
147	Hornady HP-BT-XTP	4.3	967
147	Hornady HP-BT-XTP	4.6	1015	maximum load
Using 147 GR Hornady Bullets Gun: Kimber 1911; barrel length: 5-inch; case: Starline; primer: Winchester Small Pistol; bullet diameter: .355"; COAL: 1.100"; maximum COAL: 1.169"; maximum case length: .754"; trim to length: .749".
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
90	Hornady HP-XTP	6.4	1391	starting load; COL (in.): 1.063
90	Hornady HP-XTP	7.2	1496	maximum load; COL (in.): 1.063
115	Hornady HP-XTP	5.9	1225	starting load; COL (in.): 1.142
115	Hornady HP-XTP	6.4	1299	maximum load; COL (in.): 1.142
115	Lapua FMJ-RN	5.4	1129	starting load; COL (in.): 1.142
115	Lapua FMJ-RN	6.5	1293	maximum load; COL (in.): 1.142
115	Rainier RN	5.7	1195	starting load; COL (in.): 1.142
115	Rainier RN	6.4	1282	maximum load; COL (in.): 1.142
120	Lapua CEPP	5.2	1115	starting load; COL (in.): 1.130
120	Lapua CEPP	5.9	1250	maximum load; COL (in.): 1.130
124	Intercast LSWC	5.0	1134	starting load; COL (in.): 1.142
124	Intercast LSWC	5.4	1191	maximum load; COL (in.): 1.142
124	Hornady FMJ/FP	5.4	1144	starting load; COL (in.): 1.142
124	Hornady FMJ/FP	6.0	1214	maximum load; COL (in.): 1.142
124	Rainier RN	5.2	1115	starting load; COL (in.): 1.142
124	Rainier RN	5.9	1196	maximum load; COL (in.): 1.142
124	Lapua FMJ-RN	4.9	1119	starting load; COL (in.): 1.142
124	Lapua FMJ-RN	5.7	1237	maximum load; COL (in.): 1.142
124	Lapua Megashock	5.1	1053	starting load; COL (in.): 1.130
124	Lapua Megashock	5.7	1188	maximum load; COL (in.): 1.130
130	Sierra FMJ	5.2	1083	starting load; COL (in.): 1.142
130	Sierra FMJ	5.5	1135	maximum load; COL (in.): 1.142
145	Intercast LRN	4.2	972	starting load; COL (in.): 1.142
145	Intercast LRN	4.7	1047	maximum load; COL (in.): 1.142
147	Hornady HP/XTP	4.5	991	starting load; COL (in.): 1.142
147	Hornady HP/XTP	5.0	1070	maximum load; COL (in.): 1.142
147	Rainier RN	4.2	935	starting load; COL (in.): 1.142
147	Rainier RN	4.7	1014	maximum load; COL (in.): 1.142
150	Lapua CEPP	4.2	936	starting load; COL (in.): 1.130
150	Lapua CEPP	4.6	997	maximum load; COL (in.): 1.130
Vihtavuori Reloading Guide 6 test barrel: 4", 1 in 10" twist; primers: Small Pistol; cases: Lapua, trim-to length: 0.748"; loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
124	Hornady HP-XTP	4.4	970	overall loaded length (inches): 1.060
124	Hornady HP-XTP	5.2	1128	overall loaded length (inches): 1.060
Handload Data A 5-inch barreled Kimber Model 1911 Team Match II was used to shoot all loads in Starline cases with Winchester Small Pistol primers. SAAMI minimum cartridge overall length: 1.000 inch; maximum cartridge overall length: 1.169 inches; maximum case length: .754 inch; trim to length: .744 inch.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer Gold Dot	6.1	1,201	primer: CCI 500; group (inches): 2.17
125	Sierra JHP	5.7	1,152	primer: CCI 500; group (inches): 2.64
in an S&W Model 952-2 Jacketed Bullets A Smith & Wesson Model 952-2 PC with a 5-inch barrel and open sights was used for testing. Once-fired Federal cases were used throughout. Velocities were taken 12 feet from the muzzle with an Oehler M-35P chronograph. Accuracy is the average of three, five-shot groups at 25 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Speer Gold Dot	6.1	1,270	primer: WSP; standard deviation (fps): 13; coefficient of variation (percent): 1.02; group (inches): 0.91; muzzle energy (ft-lbs): 412; highest velocity and best jacketed HP load
in a CZ Model 85 A CZ Model 85 Combat with a 4.7-inch barrel and open sights was used for testing. Velocities were taken 12 feet from the muzzle with an Oehler Model 35P chronograph. Accuracy is the average of (at least) three, five-shot groups at 20 yards from a sandbag rest. Range temperatures were 58 to 74 degrees Fahrenheit. R-P, Remington-Peters; WAP, Winchester Action Pistol; WSL, Sinchester Super Lite; WSP, Winchester Small Pistol.

9x21mm

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
100	Speer HP	7.0	1420	starting load; COL (in.): 1.142
100	Speer HP	7.6	1505	maximum load; COL (in.): 1.142
115	Sierra FMJ	5.9	1274	starting load
115	Sierra FMJ	6.6	1346	maximum load
123	Lapua FMJ	5.3	1143	starting load
123	Lapua FMJ	5.9	1213	maximum load
147	Hornady HP-XTP	4.6	1064	starting load
147	Hornady HP-XTP	5.0	1110	maximum load
Vihtavuori Reloading Guide 6 test barrel: 5 1/2", 1 in 10" twist; primers: Small Pistol; cases: Tanfoglio, trim-to length: 0.826"; COL (in.): 1.161 (except where otherwise specified in remarks); loads less than minimum charges shown are not recommended; USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Bushwacker .356-inch SWC	5.3	1,111	SD: 9 fps; CV: 0.81%; group: 1.22 inches; power factor: 139
125	Bushwacker .356-inch SWC	5.4	1,114	SD: 10 fps; CV: 0.90%; group: 1.97 inches; power factor: 139
125	Bushwacker .356-inch SWC	5.5	1,176	SD: 14 fps; CV: 1.19%; group: 1.34 inches; power factor: 147
in a CZ 75 Test gun was a custom CZ 75 converted to 9x21mm with a 5.25-inch barrel and three-port compensator. Accuracy is the average of three (or more) five-shot groups at 25 yards. Overall loaded length of all loads was 1.160 inches. Starline nickel-plated cases and Winchester Small Pistol primers were used throughout. Temperatures at time of testing were 65 to 89 degrees Fahrenheit. Average accuracy of all loads tested: 1.36 inches. CV is coefficients of variation and is the standard deviation expressed as a percent of the average velocity.

9x23mm Winchester

Wt.	Bullet	Charge	Velocity (FPS)	Remarks
115	Sierra FMJ	7.4	1374	starting load
115	Sierra FMJ	8.8	1496	maximum load
123	Lapua FMJ	6.9	1272	starting load
123	Lapua FMJ	7.8	1394	maximum load
123	Lapua Megashock	6.8	1282	starting load; COL (in.): 1.189
123	Lapua Megashock	7.3	1386	maximum load; COL (in.): 1.189
130	Rainier RN B	6.1	1184	starting load
130	Rainier RN B	7.3	1328	maximum load
Vihtavuori Reloading Guide 6 test barrel: 5", 1 in 16" twist; primers: Small Pistol; cases: Winchester, trim-to length: 0.896"; COL (in.): 1.280 (except where otherwise specified in remarks); loads less than minimum charges shown are not recommended; NOTE: This cartridge is not supported by CIP or SAAMI. The maximum loads do not exceed 300 MPa. USE MAXIMUM LOADS WITH CAUTION!
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
125	Winchester Silvertip	8.8	1,448	energy: 581 (ft-lbs); accuracy 1.44 inches
150	Bull-X lead SWC	6.7	1,203	energy: 481 (ft-lbs); accuracy: 2.11 inches
Winchester Full-Power Loads The loads identified as "full-power" were developed for modern guns chambered for the 9x23mm Winchester and should not be fired in guns chambered for any other cartridge. Reduce those powder charges by 10 percent for starting loads. Loads identified as "light target" should be safe to use in guns chambered for the 9x23mm Largo as well, but only if they are tight and in excellent condition and only if Winchester 9x23mm cases are used. Winchester cases and Winchester WSR primers were used in all full-power loads.
Wt.	Bullet	Charge	Velocity (FPS)	Remarks
147	E&E .357 inch	6.2	1,182	group: 1.69 inches
147	E&E .357 inch	6.3	1,189	group: 1.85 inches; good load
150	Sierra .356 inch	6.1	1,127	group: 2.68 inches; mild
Winchester Model 1911 Colt 01923E All loads were fired in a Colt Model 01923E pistol with a 5-inch barrel and a groove diameter of .356 inch. All handloads used Starline 9mm Super Comp cases, Winchester Small Pistol primers, and overall loaded length was 1.206 inches. Group sizes are the average of at least three, five-shot groups at 25 yards (except where noted).
